Remington’s Hybrid .303 M1903

In 1940, following the evacuation from Dunkirk the British Army was in desperate need of small arms, with over 100,000 rifles left behind in France. In dire need of rifles Britain turned to the US and its huge industrial base and approached a number of companies about tooling up to produce Lee-Enfield Rifle No.4s. Savage Arms took on one contract and projected production of 1,000 per day but establishing production of a rifle US companies didn’t have the tooling and gauges for would take time.

remington_1903_303_rightwm
Right side of the Remington (Matthew Moss)

Remington was also approached by the British Purchasing Commission and asked if they could manufacture up to 400,000 rifles. Remington estimated it would take up to 30 months to tool up for No.4 production. However, Remington believed that if they could lease the old tooling previously used at the Rock Island Arsenal to produce M1903s, from the US Government, they could tool up to produce the M1903 in just 12 months. It was suggested that the tooling be adapted to produce rifles chambered in the British .303 cartridge. Some ergonomic changes could also be made so the rifles mimicked the British No.4.

remington_1903_303_leftwm
Left side of the Remington (Matthew Moss)



On 12th December 1940, the British government issued a Letter of Intent to Remington for the manufacture of 500,000 rifles in .303 British. Some sources suggest the British agreed to an advanced payment of $4,000,000. Much of this covered the lease, transport and refurbishment of the M1903 tooling. The rest went on the purchase of raw materials and the necessary accessories for half a million rifles.

The tooling lease was agreed in March 1941, and the US Government also supplied 600,000 stock blanks which had been in storage in exchange for ammunition produced by Remington. With the passage of the Lend-Lease act, on 11th March, the Remington contract came under the control of the US Government, rather than a private order. Remington received the last tooling shipments from Rock Island Arsenal on 22nd April, and by the end of May had the production line up and running.

DSC_0535wm
A detail view of the rifle’s action and follower note the ‘2’ stamped on the follower (Matthew Moss)

A contract to produce the hybrid rifles at a cost of $5 per rifle was agreed in late June. Remington’s engineers began setting up the equipment and working out an ad hoc production layout that would allow 1,000+ rifles per day to be built. At least four pilot models were built, with some of these guns being sent to Britain. The rifles were reportedly received in September 1941, and following preliminary examination were described as “very successful”. Four of the rifles were distributed for further testing but by the end of 1941 the project had been abandoned.

remington_1903_303_nosecap_leftwm
A close up of the adapted muzzle and foresight so the rifle could fit a No.4 bayonet (Matthew Moss)

Remington made a number of external and internal changes to approximate the British No.4. They fitted a front sight post with sight protectors which was moved further back from the muzzle to enable the rifle to mount a Rifle No.4 spike bayonet. As such the upper barrel band does not have a bayonet lug.

Many of these parts are still in-the-white, unfinished, including the barrel, barrel bands, floor plate, front sight assembly, rear sight assembly and the bolt itself. The bolt does, however, have a parkerized cocking piece.

DSC_0524wm
The rifle’s bolt (Matthew Moss)

The hybrid also moves the rear sight back onto the receiver, which necessitates a longer piece of wooden furniture covering where the M1903’s ladder sight would normally be. The style of rear sight was also changed to a two-position flip sight with apertures for 300 and 600 yards mimicking those seen on the No.4 Mk2.

DSC_0541wm
A close up of the rifle’s bolt, cocking piece (which wasn’t properly inserted) and rear sight (Matthew Moss)



They also redesigned the charger guide to support the Lee-Enfield-type chargers rather than the M1903 stripper clips. The bolt was adapted to work with Britain’s rimmed .303 round, with the extractor modified for the British cartridges wider, thicker rim.

DSC_0527wm (1)
A close up of the bolt head (Matthew Moss)

The rifle did not have the Lee-Enfield’s detatchable box-magazine, instead retaining the M1903’s 5-round internal magazine. The magazine follower does not appear to have been altered either. Markings on the rifle are minimal and include a ‘7’ on the front sight post, a ‘B2’ on the bolt handle and a ‘2’ stamped on the magazine follower. No roll marks or serial numbers appear to be present.

DSC_0533wm
The faux Lee-Enfield stock with spliced in semi-pistol grip (Matthew Moss)

The rifle’s stock has also been adapted, so instead of a straight wristed-stock a piece of wood has been spliced in to create a Lee-Enfield style contour, forming a semi-pistol grip. The stock is marked with the inspector marks ‘WJS’, which indicate the stock was originally inspected by W.J. Strong and accepted between 1918 and 1921, as well as a pair of later Springfield Armory inspection cartouches: ‘SPG’ – the initials of Stanley P. Gibbs, who was an inspector at Springfield Armory between 1936-1942 and ‘GHS’ – the initials of Brigadier General Gilbert H. Stewart (GHS), Springfield’s commander in the late 1930s- early 1940s. This would suggest that the stock was refurbished at Springfield Armory before being transferred to Remington where it was subsequently adapted.

DSC_0531wm
A detail shot of the stock’s Ordnance stampings (Matthew Moss)

In August 1941, the US began its re-armament programme and in September the British contract with Remington was cancelled. At the same time production in Canada and at Savage’s J. Stevens Arms division in the US had gotten underway and it was decided that the adapted hybrid .303 M1903s developed at Remington was no longer needed. The hybrid contract was formally cancelled in December 1941, and additional .30-06 M1903s and M1917s were taken under the Lend-Lease Agreement to fulfil the needs of the Home Guard. Savage believed that they could significantly increase the number of rifles they could build per day, they managed to enter full production by the end of 1941 and by 1944 had produced well over 1 million No.4s.

1903A3

Remington went on to produce M1903s for the US military, overcoming issues with the original engineering drawings and the tooling dimensions to eventual produce 365,000 M1903s by mid-1943, before switching to production of the M1903A3 pattern and producing 707,629 rifles. In total Remington produced 1,084,079 M1903-pattern rifles during World War Two.

The Remington .303 M1903 hybrids are perhaps the rarest M1903 variant, with only a handful built. They would likely have been perfectly serviceable rifles and helped plug the desperate gap in Britain’s arsenal. Rapidly moving events ensured that these rifles became a footnote in both the Lee-Enfield and Springfield 1903’s histories.

Special thanks to both Remington and the Cody Firearms Museum for allowing us to take a look at this extremely rare rifle.


If you enjoyed the video and this article please consider supporting our work here. We have some great perks available for Patreon Supporters. You can also support us via one-time donations here.


Bibliography:

‘Production of Military Rifles by Remington Arms Company in Ilion, New York During World War II’, American Society of Arms Collectors Bulletin 92:14-24, R. Marcot

The Lee-Enfield Story, I. Skennerton, (1993)

The M1903 Springfield Rifle, L. Thompson, (2013)

‘The 1903 Springfield’, HBSA UK, (source)

The Model 1903 Springfield Rife, J. Poyer, (2013)





A Walk Around the Cody Firearms Museum

Last summer I had the chance to visit the newly renovated Cody Firearms Museum. With the ongoing Coronavirus Pandemic I thought now was a good time to finish my walk-around video taking a look at the new museum.

The museum has always had an extremely impressive collection of firearms and gun related artefacts, some of which we’ve been lucky enough to feature in videos, but the new museum puts more of these amazing firearms on display than ever before.

DSC_0498a

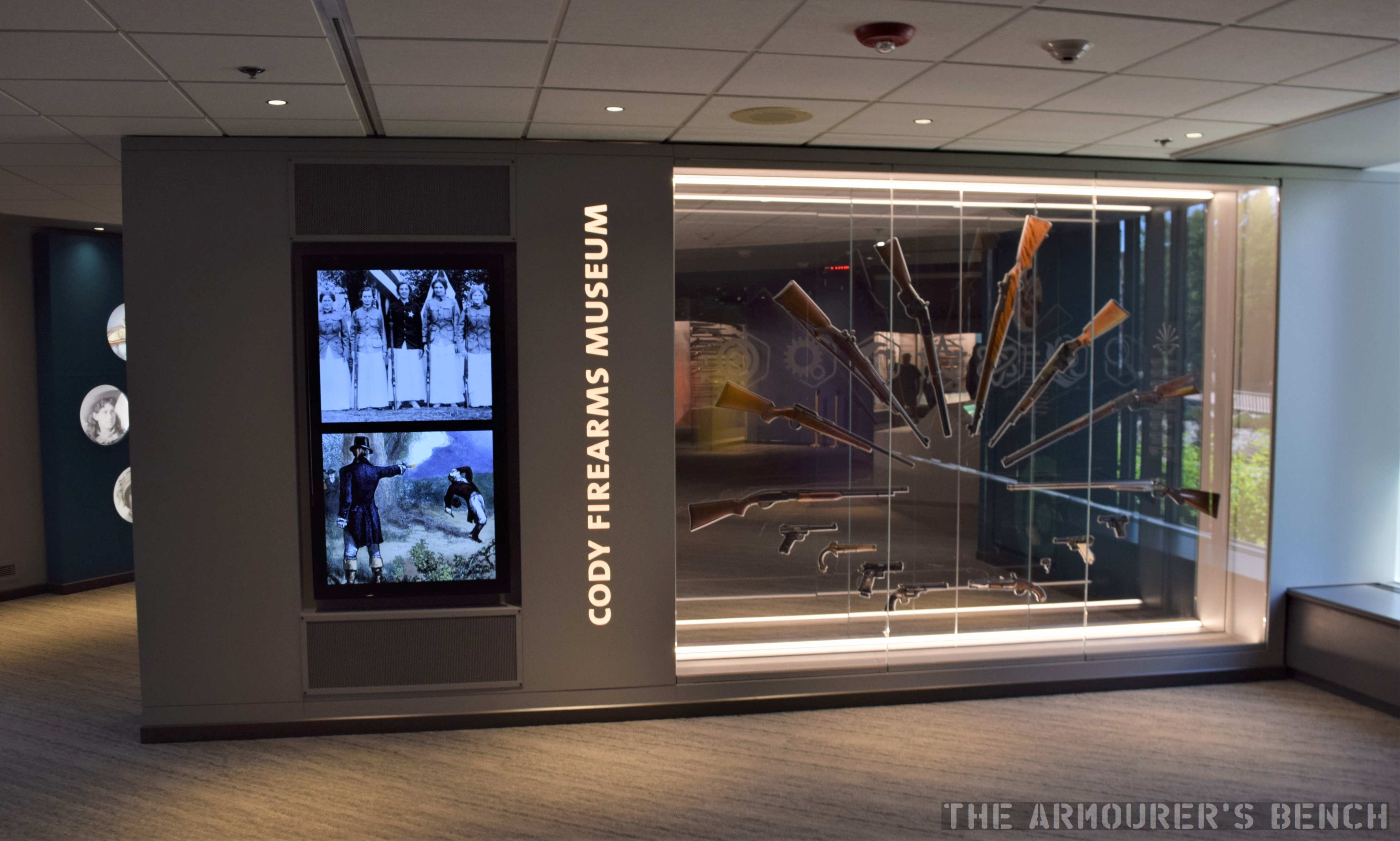

The CFM’s new and improved ‘gun fan’ (Matthew Moss)

The $12 million renovation has also allowed the museum to become much more interactive too with working models, touch screens and shooting simulators.

DSC_0495

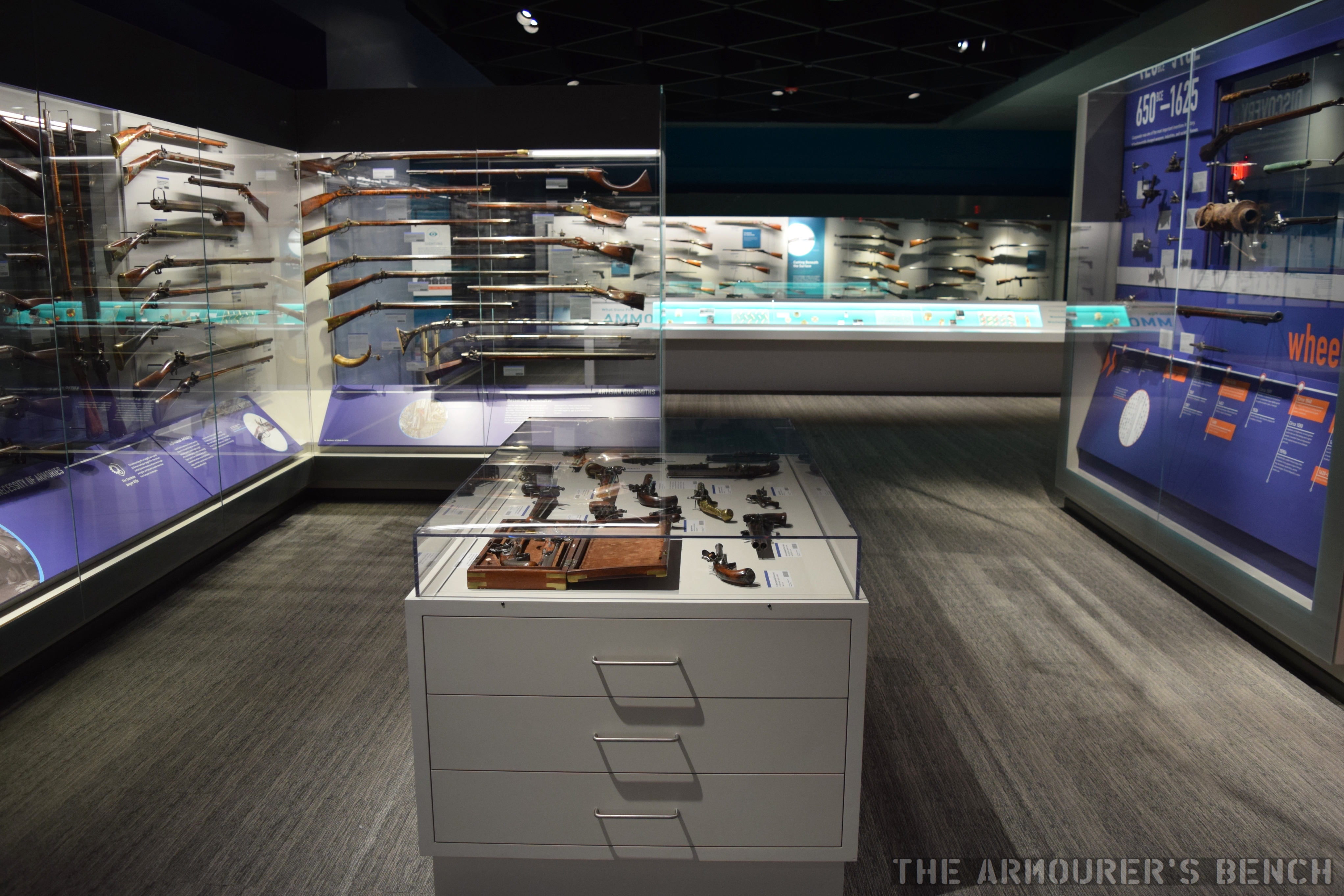

A view back through the first main gallery (Matthew Moss)

A new intuitive layout lets you explore firearm history either by chronology or by theme. In the photo above we can see some of the displays in the chronological gallery that shows the evolution of civilian and military firearms from their invention to the present.

DSC_0493

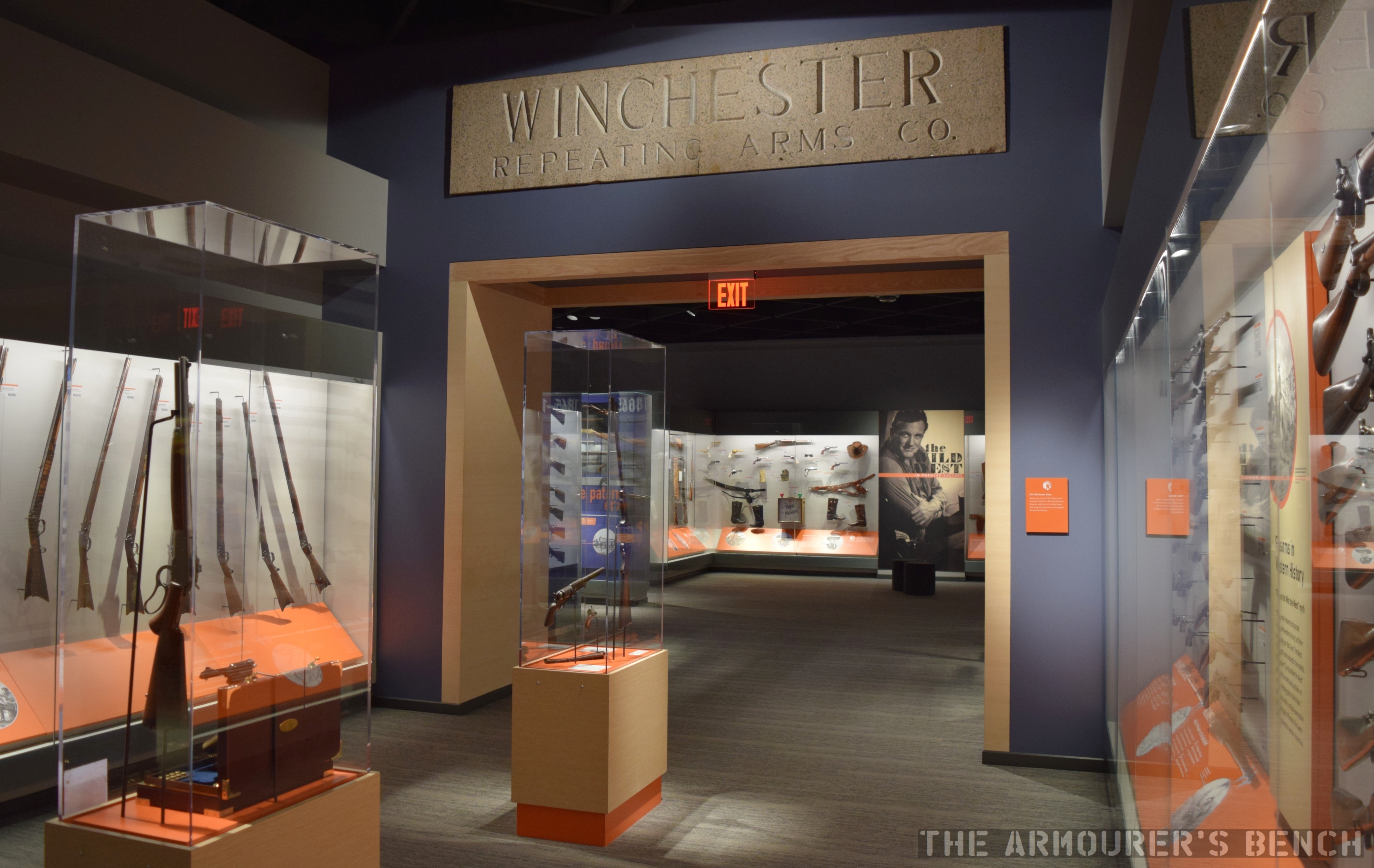

Some of the weapons of the West on display along with the original Winchester factory name stone (Matthew Moss)

One of the features I really liked was that many of the cases can be viewed on both sides allowing you to see all around the firearms.

Around the exhibits are touch screens where you can call up more information, first hand war stories and even animations of how various firearms work.

DSC_0482

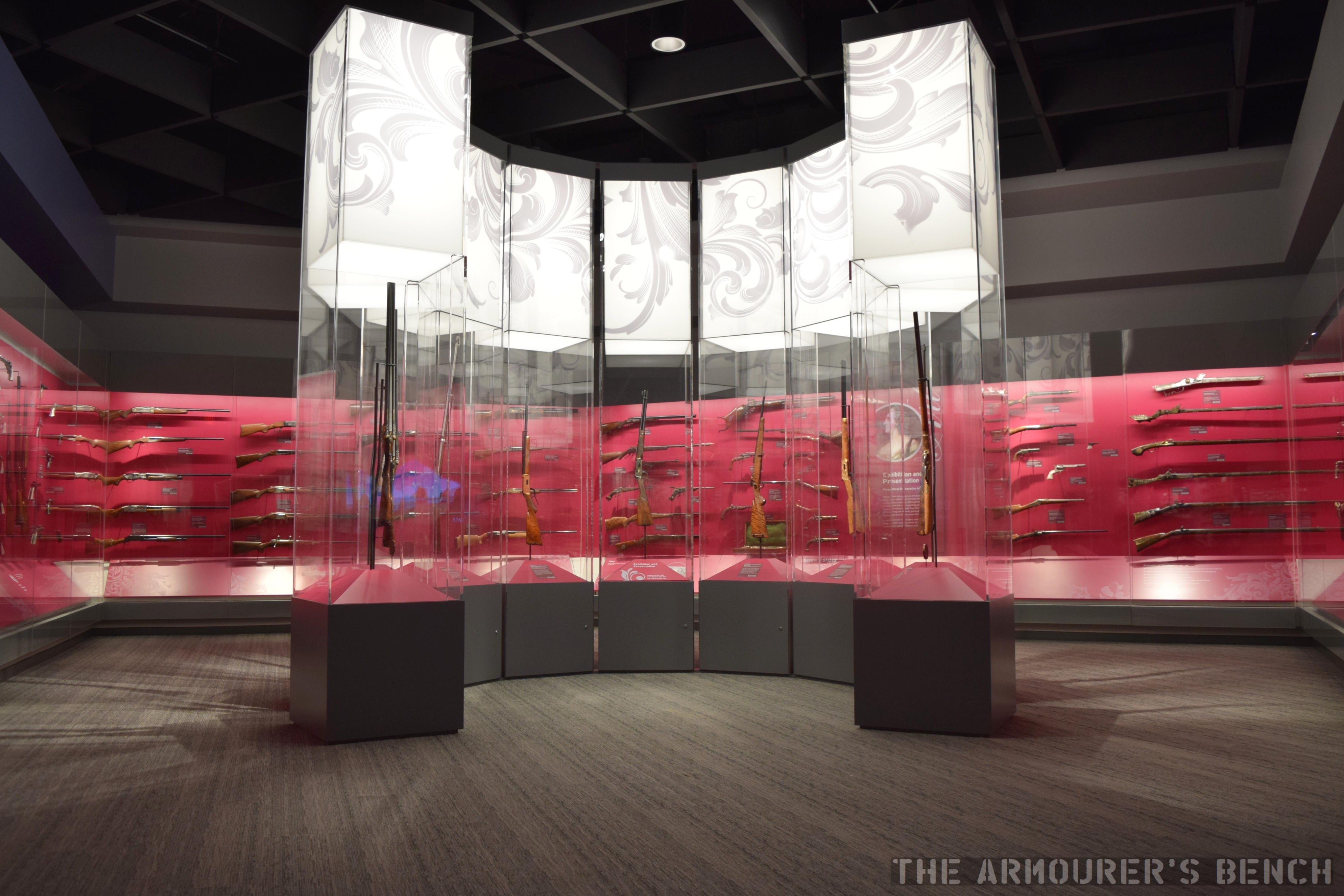

A gallery full of beautifully engraved firearms including some presidential presentation pistols (Matthew Moss)

There is also a gallery of ornately decorated firearms which includes some incredible pieces.

DSC_0458

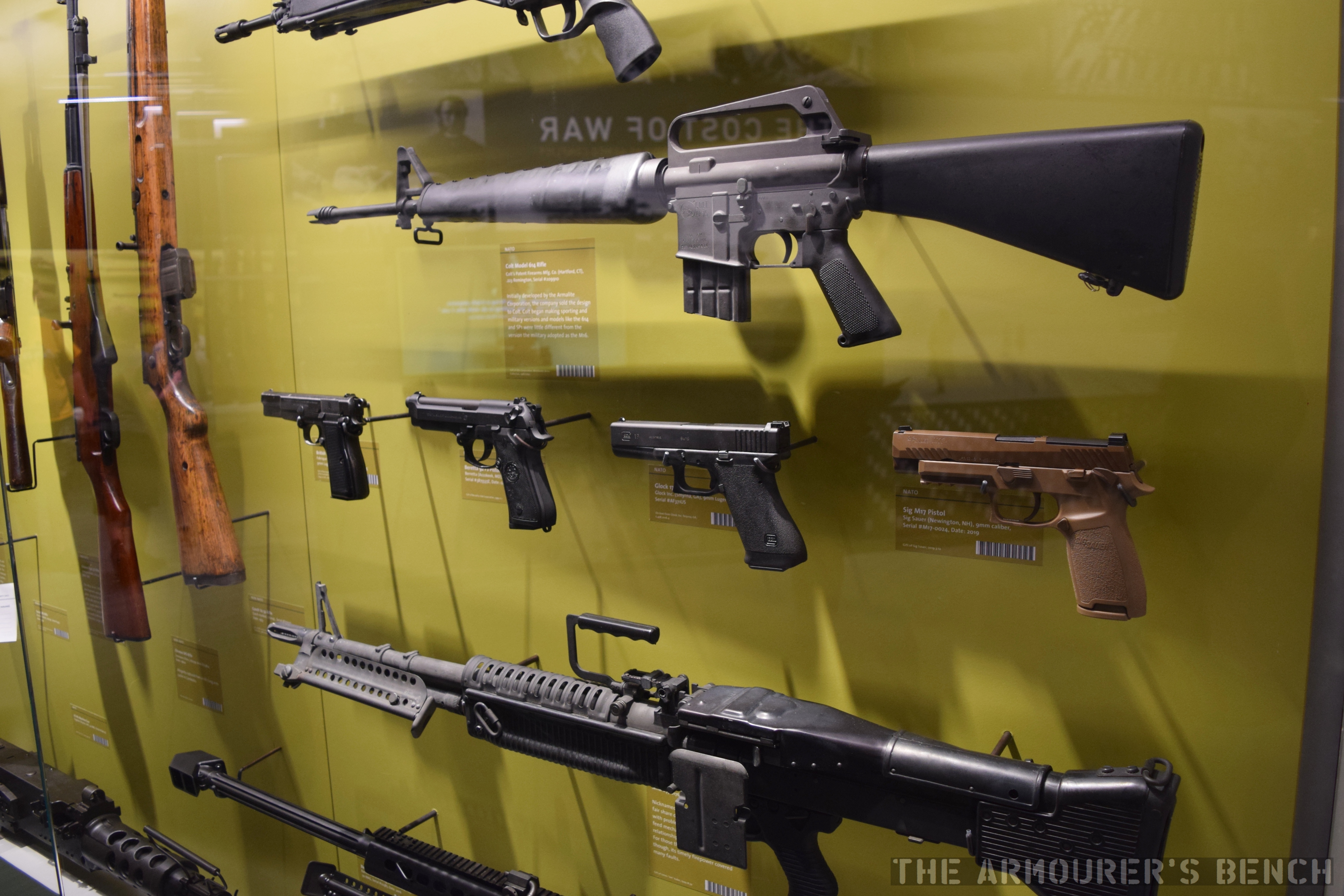

A detail shot from the military gallery (Matthew Moss)

Unsurprisingly, the military gallery was one of my favourite parts of the museum with dozens of guns organised by conflict and period.

DSC_0455

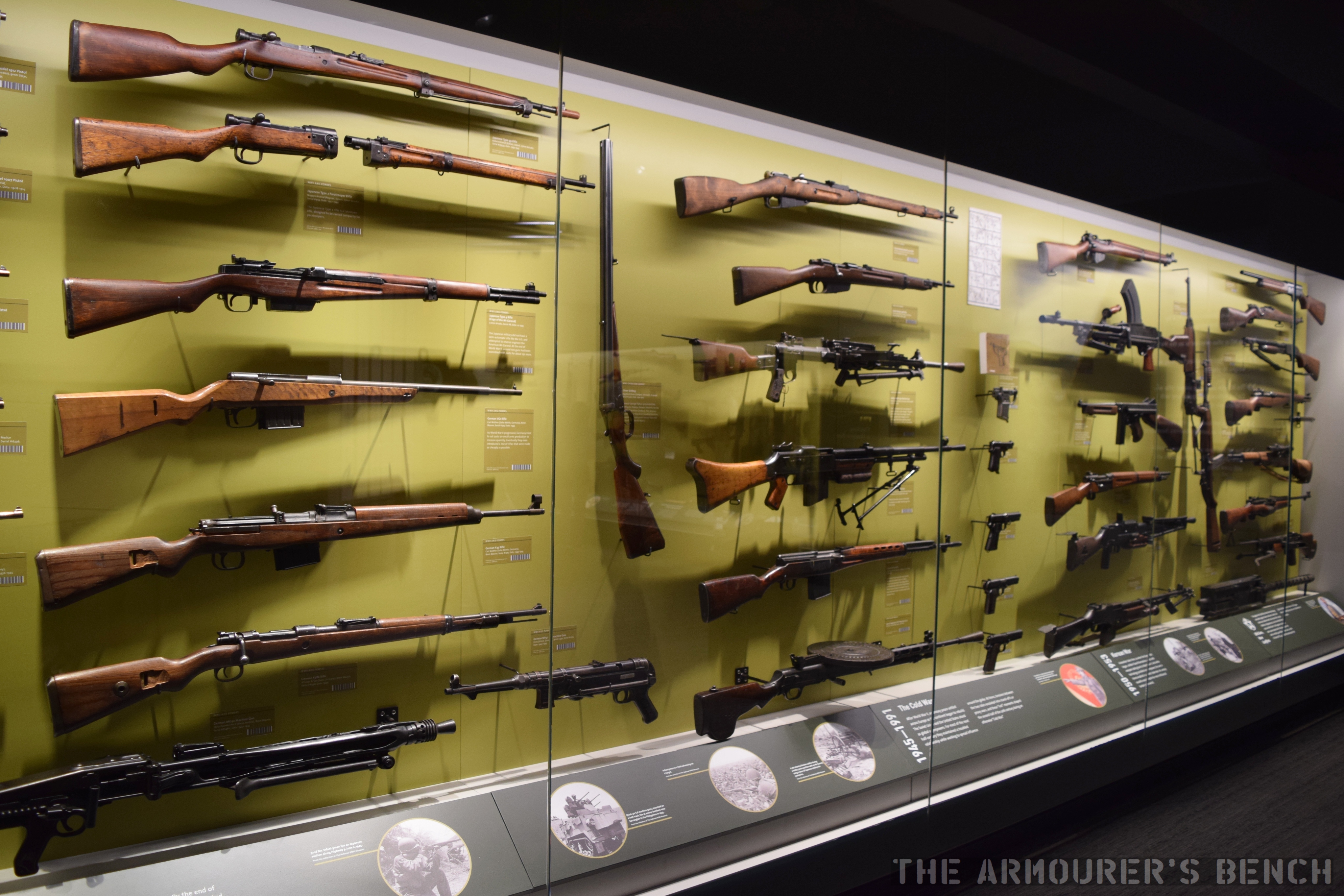

One of the cases in the military gallery (Matthew Moss)
DSC_0447

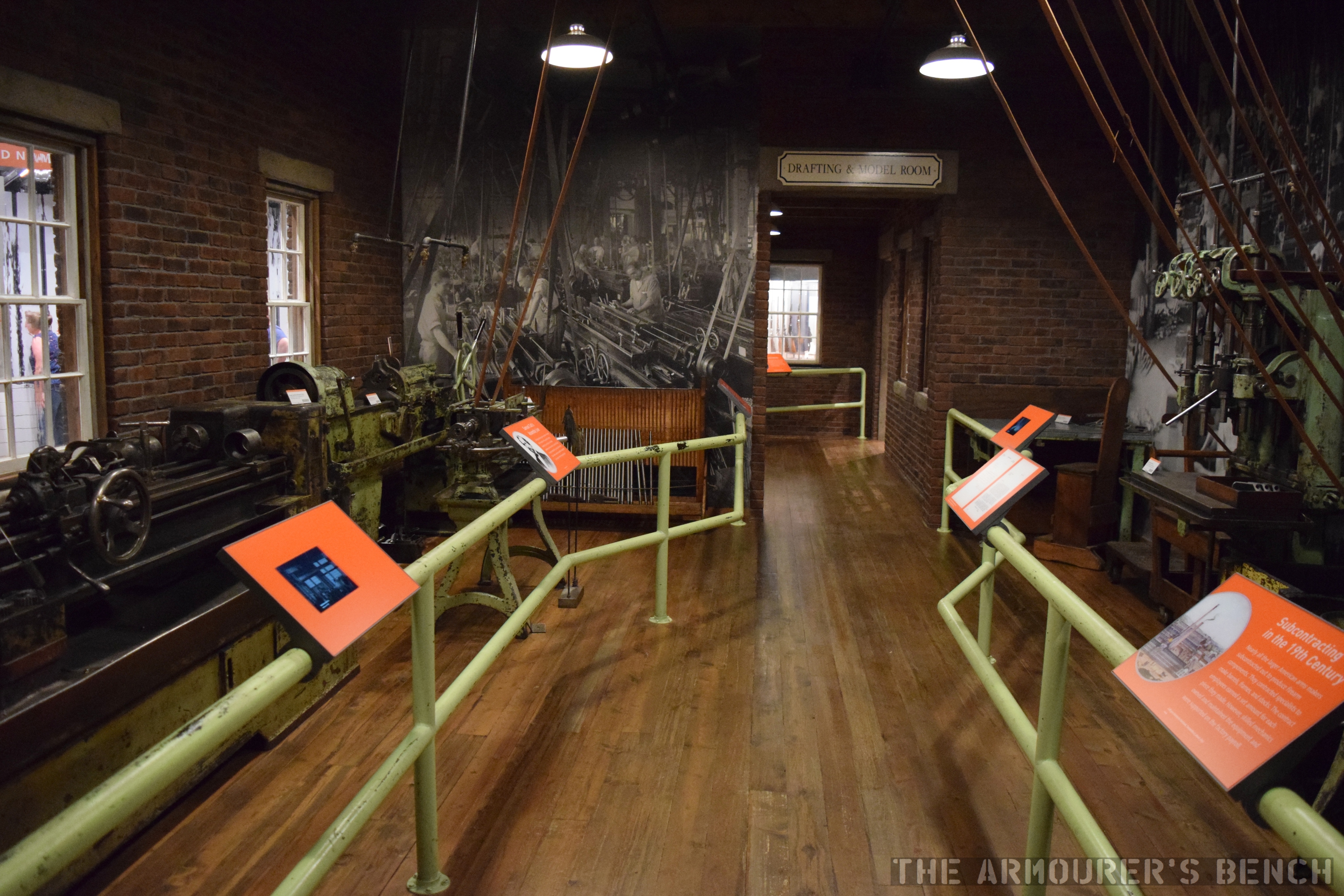

A look back through the recreated machine shop (Matthew Moss)

One of the best features of the original museum has also been retained, a recreation of a gun factory’s drafting room and machine shop.

DSC_0445

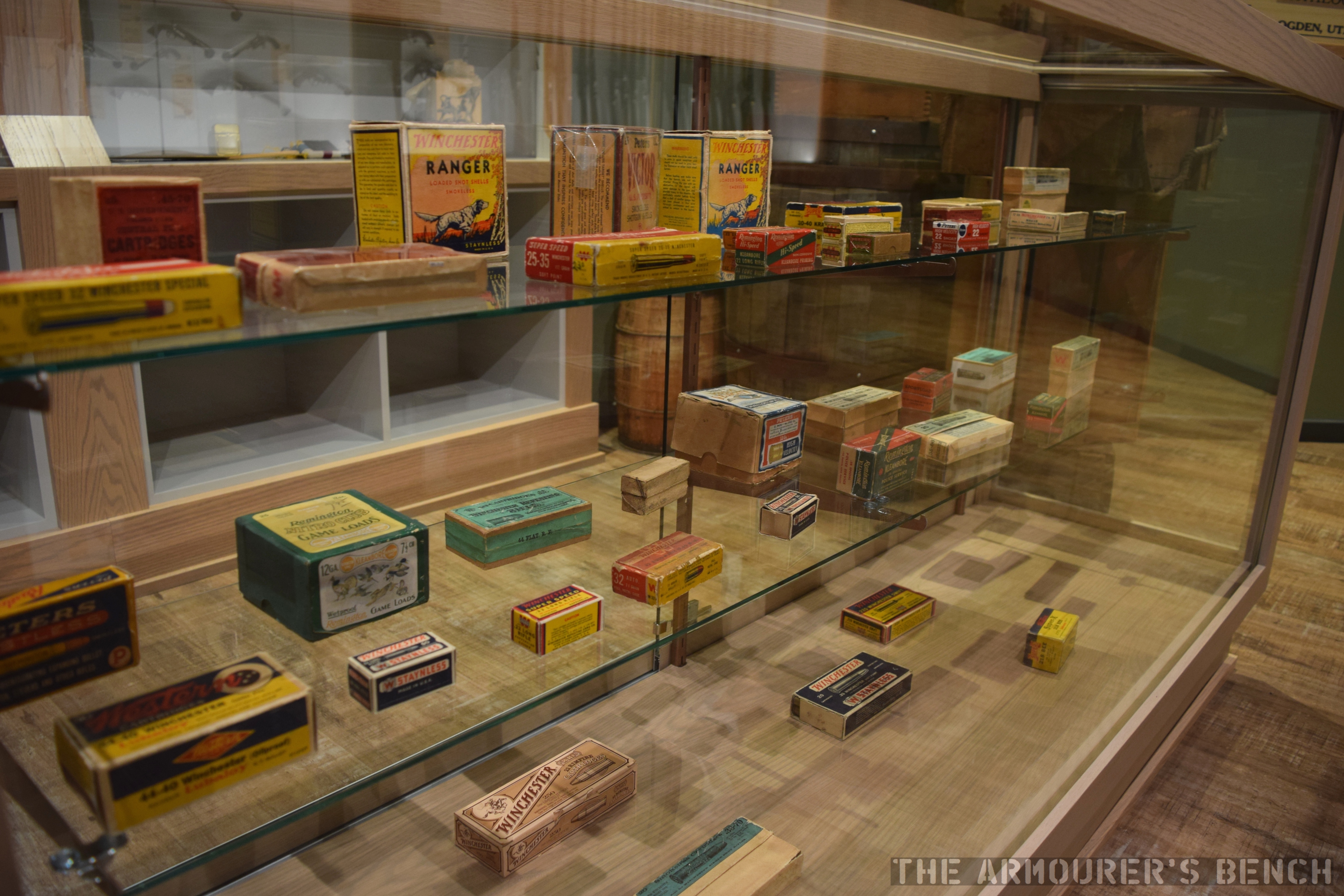

A detail shot of some of the ammunition packaging on display in the ‘general store’ (Matthew Moss)

One of the most interesting little sections is a recreation of a general store showing off some of the items that companies like Winchester made alongside their well known firearms.

DSC_0432

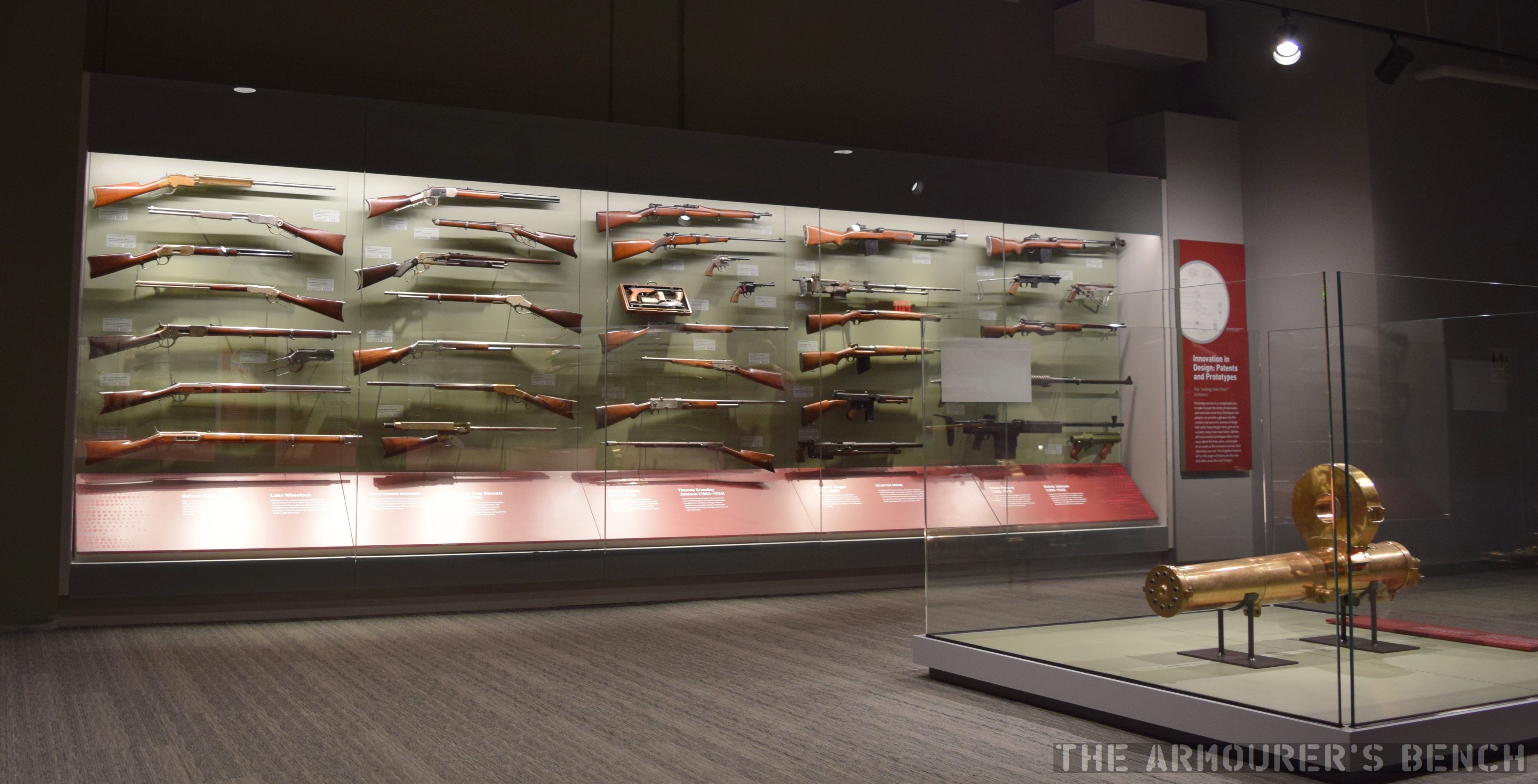

A case dedicated to experimental prototypes with the Gatling used in the initial development of the Vulcan in the foreground (Matthew Moss)

Downstairs is a space dedicated to experimental prototypes and a rolling wall of cases that include examples of hundreds of types of firearms and ammunition.

DSC_0434

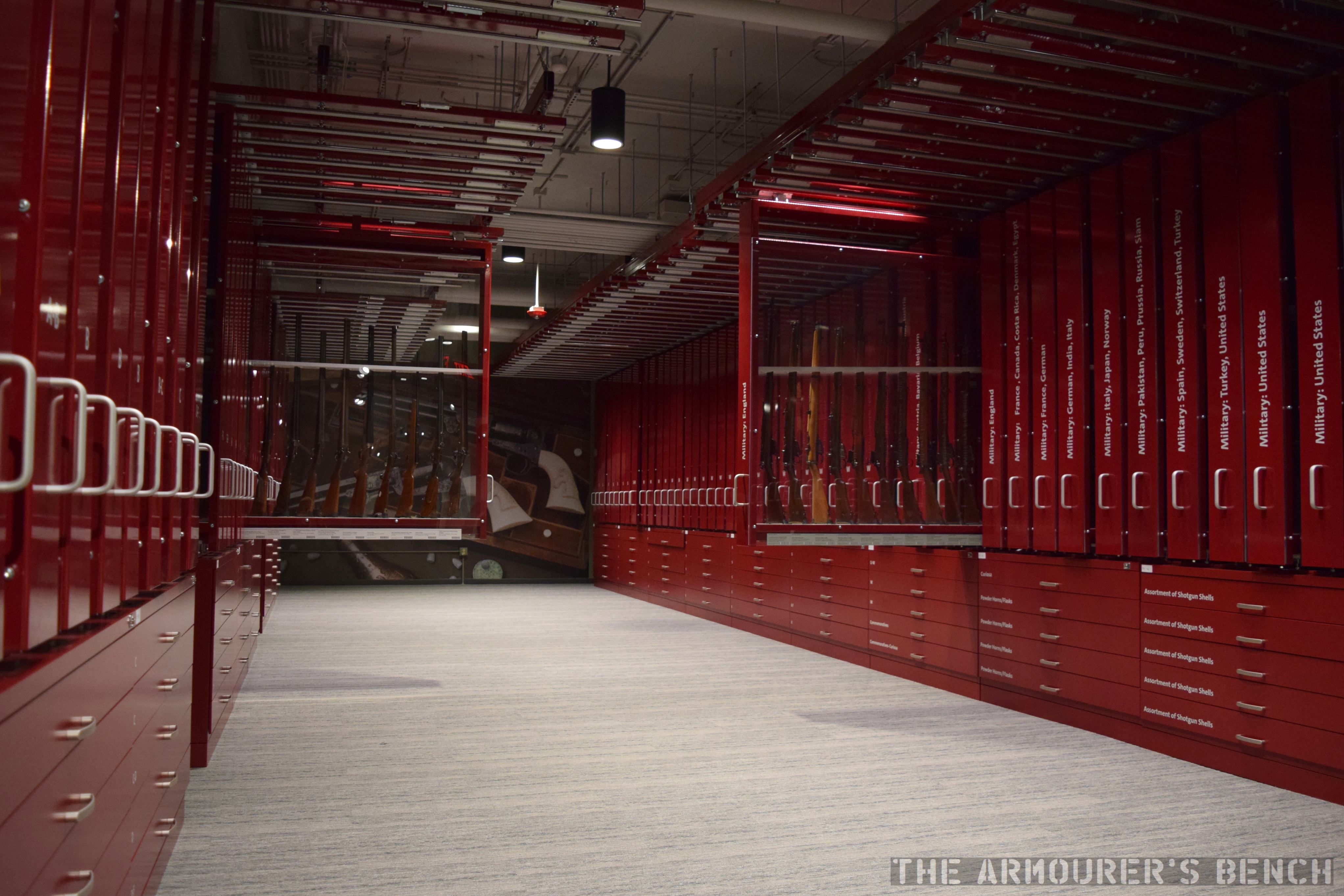

Some of the rolling cases open in the hall dedicated to showing off as many firearms as possible (Matthew Moss)

The newly refurbished museum puts the collection front and centre in a way that will enthral the average museum-goer and satisfy any avid gun enthusiast.

You can find out more about the museum here and check out some of the firearms we have had the privilege of examining from the CFM’s collection here.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.

John Browning’s 1892 En Bloc Lever-Action Prototype

The 1890s were one of John Browning’s most prolific periods, during which he developed a host of firearms which would never actually see production. Here, we’re lucky enough to be able to examine one of those prototypes that were never produced. Dating from 1892, this rifle departs from Browning’s earlier lever-action rifle designs in a number of interesting ways. Perhaps the most interesting aspect of the design is its use of en bloc clips, instead of the tube magazine traditionally used by Winchester’s repeating rifles. John Browning, and his brother Matthew, filed the patent covering the design in June 1892.

DSC_0612a
Right side of the rifle, note its ‘musket’ configuration (Matthew Moss)

The rifle is in what is typically referred to at the time as a ‘Musket’ configuration, signifying that it is a military long-arm. It has a long 32.5 inch barrel, which is held in place by two barrel bands. Overall the rifle is around 50 inches in length and weighs just over 9lbs. The rifle is chambered in a .30 calibre cartridge, likely the then new .30-40 Krag round given its proposed market. It has a ladder-style rear sight with range graduations from 100 to 1,000 yards.

US486272-drawings-page-2
Browning’s patent drawing showing the rifle’s action (US Patent Office)

Okay, let’s take a closer look at the prototype. During the 1890s Browning experimented with a series of magazine systems including an en-bloc clip system. This rifle uses a 5-round magazine which is fed from an en-bloc clip. The idea of an en-bloc clip was relatively new with Ferdinand Mannlicher patenting the idea in the 1880s and using it in his Model 1886 and 1888 rifles. It is unclear if Browning was familiar with Mannlicher’s system but the two are very similar. If you’re unfamiliar with en bloc clips it means that the cartridges are loaded into the weapon in the clip rather than stripped from the clip.

DSC_0627
A look at the ejection port for the en-bloc clip (Matthew Moss)

Browning’s prototype holds five rounds in its clip, which from patent drawings we can see was not reversible. Sadly, we don’t have an example of Browning’s clip to examine but his 1892 patent (see above) gives us a good idea of what it would have looked like. It clearly has a cut at the top of the clip which appears to have been used to help guide the round up into the chamber.

Rounds were pushed up into the action by a follower arm which was actuated by a v-spring located at the front of the magazine housing. The bottom of the fixed magazine housing has a cut-out corresponding to the clip to allow it to fall or be pushed clear by a new clip once it was empty.

DSC_0615
The rifle’s lever fully-forward with its action open and striker cocked (Matthew Moss)

The rifle also departs from the traditional hammer system and uses a striker-fired action. From the patent drawings we can see how the rifle’s striker worked, with a coil spring extending into the stock and a sear holding the striker to the rear. The striker is made up of two pieces with the striker hitting a long firing pin inside the bolt.
The striker has, what the patent refers to as, a ‘thumb piece’ to enable re-cocking and to indicate if its cocked or not. The striker was cocked by the cycling of the lever and held in place by the trigger sear.

DSC_0625
A view inside the action with the bolt partially retracted before it moves down and back into the rifle’s wrist (Matthew Moss)

The lever was held in the close position, preventing out of battery discharges, by what Browning’s patent calls a downward-projecting dog, which projected through a small hole in the trigger assembly link and locked into a catch in the front of the lever loop.
The use of a striker, rather than an exposed hammer, allows the rifle bolt’s travel to be enclosed rather than have the bolt project out of the rear of the receiver, as in previous Winchester lever-actions, we can see that this rifle’s bolt slides back at an angle partially down into the wrist of the stock. This is arguably more ergonomic and potentially helps to prevent ingress of dirt.

The first half of the lever’s travel pulls the bolt to the rear, while the second part cocks the striker. An arm extending from the lever pushed the bolt rearward until the trigger sear was engaged. In order to give the lever enough throw to open the action far enough to allow a round to be loaded the trigger mechanism has to be pivoted out of the action, much like the earlier Winchester 1886.
The bolt has a pair of trunnions which project from the sides of the bolt, these run inside longitudinal grooves either side of the receiver, while the rear of the bolt is free to angle up and down as it cycles. The action is locked by the rear of the bolt secured against the rear of the receiver, rather than with a rising locking bolt.

DSC_0614a
Left side of the rifle (Matthew Moss)

During the period Browning was also working on other lever action and, even more unusual, so-called pull-apart actions as well as various magazine types including a revolving magazine, stripper-clip box magazines and of course as we’ve already seen a detachable box magazine-fed rifle. The 1890s were a truly prolific period for Browning.

The design was purchased by Winchester and the Brownings’ patent was granted in November 1892. The gun, like many of Browning’s other designs of the period, never saw production. Making this rifle a rare one-of-a-kind prototype. It’s an elegant design and the action is smooth. When Winchester did finally seek to produce a military lever-action they chose another of Browning’s designs which retained his traditional rear-locking bolt, which became the Model 1895.

This rifle is a unique prototype and it was an honour to examine it. It’s now on display at the newly refurbished Cody Firearms Museum at the Buffalo Bill Centre of the West. Our thanks to the museum for allowing us to film items, like this one, from the museum’s collection.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.


Bibliography:

‘Breech-loading Firearm’, J. & M. Browning, US Patent #486272, 15/11/1892 (source)

John M Browning: American Gunmaker, J. Browning & C. Gentry (1964)

Winchester Model 1905 .45ACP Conversion

During my recent visit to the Cody Firearms Museum I was lucky enough to examine a number of interesting firearms (more videos soon). In this video we take a look at a Winchester Model 1905 chambered in .45 ACP.

The Model 1905 was originally designed by Thomas Crossley Johnson, as a commercial rifle chambered in either .32 or .35 Winchester Self Loading. It was the second of a series of blowback operated rifles Johnson designed between 1903 and 1910.

DSC_0601
Right-side profile of the converted Model 1905 (Matthew Moss)

The origins of this gun, however, are less clear. It is part of the Cody Firearms Museum’s impressive collection and is believed to be a Winchester-made prototype. Dating the rifle is more difficult. It was originally believed to have been developed during the First World War but the Winchester Arms Collection’s records date the rifle to 1919. It has also been suggested that the conversion may have been developed by Winchester as an auxiliary arm for the US Army, as a replacement for the 1911 pistol for some troops – much along the lines of the later .30 carbine. There are no records, however, to suggest the .45 ACP Model 1905 was ever officially tested.

Herbert Houze, former curator of the Cody Firearms Museum, believed the conversion was actually developed after World War Two. No patents or Winchester documents are known to refer to it but Houze believed that one of Winchester’s engineers, Harry H. Sefried, developed the conversion as a side project with a potential aim to interest law enforcement agencies in a carbine chambered in the readily available .45 ACP round.

DSC_0599
The carbine with the 1911 magazine removed and the bolt back (Matthew Moss)

Taking a stock rifle a number of changes were made, the rifle was re-barrelled and rechambered for the .451-inch .45 ACP round and the bolt face was modified slightly. The 1905 originally fed from straight 5 or 10-round box magazines. In order to feed from a Colt 1911 magazine a new magazine housing was added. The curved front of the trigger guard has been machined back and is now flush with the rear of the conversion housing which appears to be integral to the lower receiver’s frame. On close inspection we can clearly see that parts have been brass brazed together around the original magazine release and inside the magazine well.

DSC_0603
With the 1905’s upper receiver removed we can see how the 1911 magazine aligns with the bolt and breech (Matthew Moss)

The rounded magazine housing has a new magazine release positioned at the front of the magazine, as in the 1911 and allows the magazine to be inserted at an angle. The ejection port has also been altered with an additional cut-out being made at the top to aid ejection.

DSC_0604
With the rifle stripped down and the magazine removed we can see the conversion magazine housing, note what appears to be brass brazing (Matthew Moss)

Take down remains the same, with the upper and lower separating once the take down screw at the rear of the receiver is loosened. The conversion appears to be well thought out and the finish and care taken would indicate this was rifle wasn’t a rough proof of concept prototype. Sadly, there is no information on how the conversion performed.

DSC_0599 - Copy (2)
A close up of the rifle’s receiver and Colt 1911 magazine (Matthew Moss)

Regardless of the origins of the conversion Winchester never offered the chambering commercially and this prototype is the only example known to exist. Today, it is held by the Cody Firearms Museum at the Buffalo Bill Centre of the West in Wyoming. The museum has just undergone a major renovation and is well worth visiting. Our special thanks to the CFM for letting us examine this rare rifle.

Herbert Houze, the former Curator of the Cody Firearms Museum who is mentioned in this article and video, recently passed away – this video is dedicated to his memory.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.


Bibliography:

‘Winchester Center Fire Automatic Rifles’ ARMAX, The Journal of the Cody Firearms Museum (Vol. III, No. 1, 1990), K.F. Schreier Jr.

My thanks to Danny Michael, the CFM’s assistant curator, for additional information from Herb Houze
