SOE Sabotage – The Incendiary Case

Following on from our last video & article looking at Explosive Coal, we continue our series looking at some of the sabotage weapons developed by Britain’s SOE during the Second World War.

We’re lucky enough to have some unique colour footage showing the of testing of some of these explosive devices and in this article we will examine an incendiary-filed case.
In this piece of 16mm colour footage, filmed in 1940 by Captain Cecil V. Clarke, we see what appears to be an attaché case containing three medium-sized bottles, which likely contains a mix of petrol and paraffin or some white phosphorus, prepared for testing at the bomb range at Brickendonbury in Hertfordshire, a Special Operations Executive training and research centre codenamed Station XVII. It’s believed that these films may have been produced as teaching aids for the agents trained at Station XVII and this film may have been shown during a lecture.

New Movie (2).Movie_Snapshot.jpg
A still from the footage showing the case being set up at the test range (IWM)

While incendiary briefcases, attaché cases and even suitcases are listed in the 1944 SOE Descriptive Catalogue of Special Devices and Supplies they were quite different from this case. They were primarily designed for the quick destruction of documents and items carried inside them. They used sheets of potassium nitrate to burn the case’s contents.
The incendiary case seen in this footage on the other hand appears to be designed to be clandestinely placed and detonated with a delay fuse, to set nearby flammable objects on fire. What was described as a ‘Delayed Action Incendiary’.

The Incendiary Suitcase entry from the SOE’s Descriptive Catalogue of Special Devices and Supplies

In this footage of another separate test we get an idea of the destructive capability of just one of the bottles.

It’s possible that this incendiary case was a proof of concept test for the later cases or perhaps a demonstration of a concealed incendiary device Station XVII were working on. SOE developed a large number of bespoke explosive devices for various missions, so while this device may not have become ‘standard issue’, it may have been developed for a specific purpose.


If you enjoyed the video and this article please consider supporting our work here. We have some great perks available for Patreon Supporters. You can also support us via one-time donations here.


Bibliography:

SOE’s Descriptive Catalogue of Special Devices and Supplies, c.1944

SOE’s Secret Weapons Centre: Station 12, D. Turner

SOE: The Scientific Secrets, F. Boyce & D. Everett

The footage is part of the Imperial War Museum‘s collection © IWM MGH 4325 and is used under the Non-commercial Use agreement.

SOE Sabotage – Explosive Coal

During the Second World War Britain’s Special Operations Executive (SOE) developed a whole series of sabotage devices for use behind enemy lines. Using unique archival footage this series of short videos examines some of the weapons developed for use by SOE agents in occupied Europe. We begin the series with a look at the history and development of Explosive Coal. Explosive coal was designed to explode inside fireboxes, furnaces and coal stores hampering enemy infrastructure.

545343
A still from the film showing a close up of the Explosive Coal (IWM)

I came across this footage while doing some research in the Imperial War Museum’s online catalogue. This piece of 16mm film was filmed by Cecil Vandepeer Clarke, a British engineer and sabotage expert who was a member of the Special Operations Executive and worked at a number of weapon research and development centres including MD1 at Whitchurch and SOE Station XII at Aston.

SOE or Special Operations Executive were a clandestine force tasked with conducting irregular warfare behind enemy lines including sabotage, assassination, intelligence gathering an small scale raiding. One of the sabotage methods developed was introducing an explosive charge into the boiler firebox of a ship or a locomotive or a power station or factory’s furnace. This achieved by disguising the explosive as either a piece of fuel like coal or wood or even as a dead rat – which might be tossed into a firebox or furnace to be disposed of.

CoalTorpedo
What is believed to be one of Courtenay’s ‘Coal Torpedos’

The idea of ‘Explosive Coal’ wasn’t new. The idea originated from the US Civil War, when Confederate Captain Thomas Edgeworth Courtenay designed a piece of cast iron, with a cavity which could be packed with gun powder, that looked like a lump of coal. The Courtenay described them as ‘Coal Torpedoes’, their aim was to damage a steam ship’s boiler enough to cause a catastrophic secondary explosion. While several vessels may have been damaged or sunk by these Coal Torpedoes, the claims are difficult to confirm.

It seems the idea of a coal bomb was resurrected in 1940 and initially a ‘Coal Borer’ was developed and available for use in theatre by mid-1940. The borer could be used by agents to make holes in lumps of coal which could be filled by plastic explosive and a detonator. This was soon superseded by an Explosive Coal Kit which included moulded fake coal and paints to allow agents to match the colour of local coal. The kit included instructions on how to prepare and use the coal bomb.

Arthur Christie, a lab assistant at Station XII, is quoted at length in Des Turner’s book on Station XII. Christie remembered being asked to drill large holes in some coal:

“Another task was collecting the biggest lumps of coal that I could find in the storeroom and taking them to the lab. I had no idea what they wanted them for; it was seldom explained to me and, when it was, it was often as clear as mud. My instructions were to try to drill a large hole in each piece of coal without shattering it. I tried with a brace and a six-inch long tube that had a serrated end. I found that, if too much pressure was applied, the coal would disintegrate. I thought, I wonder what the hell they want this for? Don’t ask, just do it, and I did manage to drill three lumps of coal. I placed the drilled coal on the table of the MI room and set off for the officers’ dining room to inform the CO that I had been successful. I was told to insert about a quarter of a pound of PE and a detonator into the hole and glue the coal dust back over it. The mud in my brain now began to clear. The lump of coal could be placed in the coal tender of a locomotive and find its way into the firebox, or perhaps into the furnace of a factory. Later the PE was dyed black, which was better than using coal dust and glue. This idea led to plastic explosive being moulded into a multitude of objects and colours to fool the enemy.”

Frederic Boyce & David Everett, in their book SOE: The Scientific Secrets, credit Station XV with the development of a moulded clam-shell design using dyed Herculite plaster and coated with real coal dust. A photograph of this can be seen in the SOE’s Descriptive Catalogue of Special Devices and Supplies, along with ‘Explosive Wood’, or as it was officially known ‘Wooden Logs, Explosive’.

Coal
Entries for Explosive Coal and Explosive Wood from a reprint of the SOE’s Descriptive Catalogue

Eventually this was replaced by a bomb based around a charge in a metal casing that allowed liquid plaster to be poured around it, simplifying production and removing any sign of a seam. The coal bombs were detonated by a No.27 Detonator to which either a match headed safety fuse or a time delay fuse was attached.

Once the danger of coal bombs was discovered by the enemy it was also believed that they would have considerable a psychological impact and also cause the enemy to expend considerable resources on protecting and checking coal supplies.

SOEcoal11
Explosive Coal  inert cutaway (courtesy of http://www.millsgrenades.co.uk)

The ‘Explosive Coal’ we see in the footage appears to actually be an incendiary bomb, producing a large amount of flame and heat. This would have been ineffective in a boiler but with a time delay or other sort of fuse it may have been very effective in causing a coal bunker fire aboard a ship, in a factory store, at a coal depot or in a locomotive’s coal tender. Coal fires are extremely difficult to contain and put out.

How effective Explosive Coal was is unclear but it is believed that coal bombs were used by both the SOE and their American counterparts the OSS. Boyce & Everett estimate that about 3.5 tons of explosive coal was made between 1941 and 1945. I’m unsure how many of these were explosive and how many were incendiary, like that seen in the footage here,  but it’s a fascinating asymmetric method of targeting enemy infrastructure at the most basic level.


If you enjoyed the video and this article please consider supporting our work here. We have some great perks available for Patreon Supporters. You can also support us via one-time donations here.


Thanks to WW2Talk on twitter for their help getting me some scans from the SOE’s Descriptive Catalogue

Bibliography:

World War II Allied Sabotage Devices and Booby Traps, G.L. Rottman

Technology and the Civil War, S. Mountjoy & T. McNeese

SOE’s Descriptive Catalogue of Special Devices and Supplies, c.1944

SOE’s Secret Weapons Centre: Station 12, D. Turner

SOE: The Scientific Secrets, F. Boyce & D. Everett

The footage is part of the Imperial War Museum‘s collection © IWM MGH 4324 and is used under the Non-commercial Use agreement.

Remington’s Hybrid .303 M1903

In 1940, following the evacuation from Dunkirk the British Army was in desperate need of small arms, with over 100,000 rifles left behind in France. In dire need of rifles Britain turned to the US and its huge industrial base and approached a number of companies about tooling up to produce Lee-Enfield Rifle No.4s. Savage Arms took on one contract and projected production of 1,000 per day but establishing production of a rifle US companies didn’t have the tooling and gauges for would take time.

remington_1903_303_rightwm
Right side of the Remington (Matthew Moss)

Remington was also approached by the British Purchasing Commission and asked if they could manufacture up to 400,000 rifles. Remington estimated it would take up to 30 months to tool up for No.4 production. However, Remington believed that if they could lease the old tooling previously used at the Rock Island Arsenal to produce M1903s, from the US Government, they could tool up to produce the M1903 in just 12 months. It was suggested that the tooling be adapted to produce rifles chambered in the British .303 cartridge. Some ergonomic changes could also be made so the rifles mimicked the British No.4.

remington_1903_303_leftwm
Left side of the Remington (Matthew Moss)



On 12th December 1940, the British government issued a Letter of Intent to Remington for the manufacture of 500,000 rifles in .303 British. Some sources suggest the British agreed to an advanced payment of $4,000,000. Much of this covered the lease, transport and refurbishment of the M1903 tooling. The rest went on the purchase of raw materials and the necessary accessories for half a million rifles.

The tooling lease was agreed in March 1941, and the US Government also supplied 600,000 stock blanks which had been in storage in exchange for ammunition produced by Remington. With the passage of the Lend-Lease act, on 11th March, the Remington contract came under the control of the US Government, rather than a private order. Remington received the last tooling shipments from Rock Island Arsenal on 22nd April, and by the end of May had the production line up and running.

DSC_0535wm
A detail view of the rifle’s action and follower note the ‘2’ stamped on the follower (Matthew Moss)

A contract to produce the hybrid rifles at a cost of $5 per rifle was agreed in late June. Remington’s engineers began setting up the equipment and working out an ad hoc production layout that would allow 1,000+ rifles per day to be built. At least four pilot models were built, with some of these guns being sent to Britain. The rifles were reportedly received in September 1941, and following preliminary examination were described as “very successful”. Four of the rifles were distributed for further testing but by the end of 1941 the project had been abandoned.

remington_1903_303_nosecap_leftwm
A close up of the adapted muzzle and foresight so the rifle could fit a No.4 bayonet (Matthew Moss)

Remington made a number of external and internal changes to approximate the British No.4. They fitted a front sight post with sight protectors which was moved further back from the muzzle to enable the rifle to mount a Rifle No.4 spike bayonet. As such the upper barrel band does not have a bayonet lug.

Many of these parts are still in-the-white, unfinished, including the barrel, barrel bands, floor plate, front sight assembly, rear sight assembly and the bolt itself. The bolt does, however, have a parkerized cocking piece.

DSC_0524wm
The rifle’s bolt (Matthew Moss)

The hybrid also moves the rear sight back onto the receiver, which necessitates a longer piece of wooden furniture covering where the M1903’s ladder sight would normally be. The style of rear sight was also changed to a two-position flip sight with apertures for 300 and 600 yards mimicking those seen on the No.4 Mk2.

DSC_0541wm
A close up of the rifle’s bolt, cocking piece (which wasn’t properly inserted) and rear sight (Matthew Moss)



They also redesigned the charger guide to support the Lee-Enfield-type chargers rather than the M1903 stripper clips. The bolt was adapted to work with Britain’s rimmed .303 round, with the extractor modified for the British cartridges wider, thicker rim.

DSC_0527wm (1)
A close up of the bolt head (Matthew Moss)

The rifle did not have the Lee-Enfield’s detatchable box-magazine, instead retaining the M1903’s 5-round internal magazine. The magazine follower does not appear to have been altered either. Markings on the rifle are minimal and include a ‘7’ on the front sight post, a ‘B2’ on the bolt handle and a ‘2’ stamped on the magazine follower. No roll marks or serial numbers appear to be present.

DSC_0533wm
The faux Lee-Enfield stock with spliced in semi-pistol grip (Matthew Moss)

The rifle’s stock has also been adapted, so instead of a straight wristed-stock a piece of wood has been spliced in to create a Lee-Enfield style contour, forming a semi-pistol grip. The stock is marked with the inspector marks ‘WJS’, which indicate the stock was originally inspected by W.J. Strong and accepted between 1918 and 1921, as well as a pair of later Springfield Armory inspection cartouches: ‘SPG’ – the initials of Stanley P. Gibbs, who was an inspector at Springfield Armory between 1936-1942 and ‘GHS’ – the initials of Brigadier General Gilbert H. Stewart (GHS), Springfield’s commander in the late 1930s- early 1940s. This would suggest that the stock was refurbished at Springfield Armory before being transferred to Remington where it was subsequently adapted.

DSC_0531wm
A detail shot of the stock’s Ordnance stampings (Matthew Moss)

In August 1941, the US began its re-armament programme and in September the British contract with Remington was cancelled. At the same time production in Canada and at Savage’s J. Stevens Arms division in the US had gotten underway and it was decided that the adapted hybrid .303 M1903s developed at Remington was no longer needed. The hybrid contract was formally cancelled in December 1941, and additional .30-06 M1903s and M1917s were taken under the Lend-Lease Agreement to fulfil the needs of the Home Guard. Savage believed that they could significantly increase the number of rifles they could build per day, they managed to enter full production by the end of 1941 and by 1944 had produced well over 1 million No.4s.

1903A3

Remington went on to produce M1903s for the US military, overcoming issues with the original engineering drawings and the tooling dimensions to eventual produce 365,000 M1903s by mid-1943, before switching to production of the M1903A3 pattern and producing 707,629 rifles. In total Remington produced 1,084,079 M1903-pattern rifles during World War Two.

The Remington .303 M1903 hybrids are perhaps the rarest M1903 variant, with only a handful built. They would likely have been perfectly serviceable rifles and helped plug the desperate gap in Britain’s arsenal. Rapidly moving events ensured that these rifles became a footnote in both the Lee-Enfield and Springfield 1903’s histories.

Special thanks to both Remington and the Cody Firearms Museum for allowing us to take a look at this extremely rare rifle.


If you enjoyed the video and this article please consider supporting our work here. We have some great perks available for Patreon Supporters. You can also support us via one-time donations here.


Bibliography:

‘Production of Military Rifles by Remington Arms Company in Ilion, New York During World War II’, American Society of Arms Collectors Bulletin 92:14-24, R. Marcot

The Lee-Enfield Story, I. Skennerton, (1993)

The M1903 Springfield Rifle, L. Thompson, (2013)

‘The 1903 Springfield’, HBSA UK, (source)

The Model 1903 Springfield Rife, J. Poyer, (2013)





The Sten Gun, Its Name and the Men Behind It

The Sten is one of Britain’s iconic Second World War Small arms. Two men are principally responsible for its development Colonel Reginal Vernon Shepherd and Mr. Harold John Turpin a pair of small arms and engineering experts with considerable experience.

Turpin was born in Kent in 1893, served his apprenticeship as a draughtsman in Erith and in 1922, he joined the drawing office at the Royal Small Arms Factory Enfield – Britain’s principal state small arms centre.

1
British Army manual illustration

Reginald Shepherd was born in 1892, received an Bachelor of Science Degree from Leeds University in 1912. In October 1914, he joined the West Yorkshire Regiment as a second lieutenant, serving in Gallipoli and Egypt. After the war, with his engineering background, he assigned as 2nd Assistant Superintendent at the Design Department at RSAF Enfield in December 1922, and promoted to captain.

The two men found themselves joining Enfield at around the same time. In November 1933, Shepherd, now a major, was appointed Inspector of Small-Arms (Class 2) at Enfield and assisted in getting the Bren light machine gun into service. He remained at Enfield until 1936, when he retired from the army and spent a short spell at BSA before being recalled. In late 1939, Major Shepherd returned to active service and once again took up the position of Inspector of Armaments, this time at the Ministry of Supply Design Department at Woolwich Arsenal.

RSAF - Ra
Inside RSAF Enfield (Royal Armouries)

By the outbreak of the Second World War Turpin had become the senior draughtsman at Enfield and when the development of the Lanchester Machine Carbine began he was paired with Major Shepherd to draw up technical drawings for the gun’s production.

The two men decided that a simpler, cheaper submachine gun could be produced and in December 1940 set about designing it, with Turpin in the lead. During the Winter of 1940-41 the first prototypes were built. Development of the first Sten – the T40, was completed on 8th January 1941, taking just 36 days.

14 pilot models were ordered but only two were completed by engineers at the Philco Radio Works in Middlesex: T-40/1 and T-40/2. The gun was initially designated the ‘T-40’ or Turpin, 1940. By the end of January 1941, it had become known as the ‘ST Machine Carbine’. The ‘Carbine, Machine, STEN, MkI’ was approved for issue on 7th March, 1941, with 100,000 guns ordered.

How did the gun become known as the ‘STEN’ and what did Sten stand for?

We know that the ‘S’ stands for Shepherd and the ‘T’ for Turpin, but what about the ‘EN’ – it is generally accepted to represent ‘Enfield’. Why? Because RSAF Enfield is synonymous with British military firearms. Additionally the Bren light machine gun’s name is a portmanteau of ‘BR’ from Brno, the location of the Czech factory the zb.26/30 originated from, and ‘EN’ for Enfield, the British factory that anglicised the design for British manufacture and service.

Enfield, however, wasn’t where the Sten was designed. Turpin and Shepherd claimed that most of the work on the design had been done out of hours. Additionally, during the winter of 1940, the Armament Design Department was relocated, from Enfield to a former Drill Hall in Cheshunt, Hertfordshire to escape the bombing of London.

While the Sten may not have been designed at Enfield, the first prototype was partially assembled there with work also done at Turpin’s own home workshop. A further 46 pre-production pilot models were later ordered from RSAF Enfield, in February 1941.

name insert

Intriguingly, early accounts suggest that ‘EN’ may have stood for ‘England’ – not ‘Enfield’. In October 1942, the fifth instalment of ‘Know Your Weapons’, a semi-official series of weapons manuals printed by the publisher Nicholson & Watson, explains that ‘EN’ did in fact stand for ‘England’.

In June 1943, Turpin penned a semi-anonymous article for ‘The Model Engineer’, about the design and development of the gun, which repeated this claim. An October 1943, article in the US Popular Mechanics magazine, entitled ‘Machine Guns from Backyard’, includes a supposed quote from the inventors explaining that the “E and N stood for England.”

585369
‘The Sten Carbine’, Model Engineer, Turpin, June 1943

A more official account came in June 1949, at a hearing of the Board of the Royal Commission Awards to Inventors (a board set up to reward inventors who had done important war work). One of the board members Lord Justice Sir Lionel Cohen asked Shepherd: “Why was it called the Sten?” The colonel replied: “It was called the Sten by the then Director General of Artillery. The ‘S’ was from my name, the ‘T’ from Mr. Turpin, who was my draughtsman and who did a very large amount of the design, and the ‘EN’ was for England. That is the origin of the name, for which I accept no responsibility.” This suggests that the ‘EN’ standing for ‘England’ may have originated from the upper echelons.

Sadly, there was no officially published explanation of the name as official manuals rarely go into superfluous detail. In 1948, however, Ian Hay published R.O.F. The story of the Royal Ordnance Factories, 1939-1948 in which he stated the ‘EN’ was a reference to the Enfield factory. Similarly, another early published account, D.M. Ward’s 1946 The Other Battle, a history of BSA, also suggested it represented the factory name.

In truth it is difficult to know exactly what the ‘EN’ stood for. It may be that both Enfield and England were discussed and used by various individuals and offices. There may have been an element of propaganda to including ‘England’ in a weapon’s name which led senior officers to push this in the press and direct the gun’s inventors to suggest this was the case too. Of course the authors of those earlier books may have mistakenly believed ‘EN’ stood for Enfield, as it does in Bren. Personally, I’m inclined to follow the primary sources attributed to the two men responsible for the design, and believe it initially stood for England.

Other War
The Other Battle, D.M. Ward, (1946)

Shepherd was awarded an OBE in January 1942, and became the Assistant Chief Engineer Armament Design (A/CEAD), he was promoted to Lt. Colonel in August 1943. He retired from active duty at the age of 55, in January 1947, and was removed from the reserve list. He was granted the honourary rank of colonel. He died in April 1950, aged 58. Turpin retired from RSAF Enfield in 1953, and died in April 1967, aged 74.

Beyond a pair of discretionary payments, £1,500 to Shepherd and a small payment of £200 to Turpin, neither man was officially rewarded as they were deemed to have essentially done what they were paid for, designing small arms. Scant reward and recognition for a weapon which became one of the key wartime small arms of the British and Commonwealth forces.

Our thanks also to Jonathan Ferguson, of the Royal Armouries, for sharing his thoughts on the ‘Enfield’ vs ‘England’ debate.


Bibliography

The Sten Machine Carbine, P. Laidler, (2000)
R.O.F. – The Story of the Royal Ordnance Factories, 1939-1948, I. Hay, (1949)
The Other Battle, D.M. Ward, (1946)
The Sterling Submachine Gun, M.J. Moss, (2018)
The Sten Gun, L. Thompson, (2012)
‘Sten & Bren Guns’, Know Your Weapon #5, (Oct. 1942)
‘The Sten Carbine’, Model Engineer, 3 Jun. 1943, H.J. Turpin
Board of the Royal Commission Awards to Inventors – 1946-49
‘Machine Guns From Backyard’, Popular Mechanics, Oct. 1943


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.

The Room The Nazis Surrendered In

Matt recently visited Berlin and took the opportunity to visit the German-Russian Museum in Karlshorst, the site of Nazi Germany’s unconditional surrender. The museum’s centrepiece is the hall in which the surrender documents were signed, restored to how it appeared at that historic moment.

The hall itself is inside what used to be the officers’ mess of the Wehrmacht’s pioneer corps training school No.1 (Pionierschule 1) which was established in 1936 in Karlshorst, an eastern suburb of Berlin. The officers’ mess building was built in the late 1930s. Later, in 1942 the school was renamed the Fortress Pioneer School (or Festungspionierschule).

The Pioneer School’s Officers’ Mess under Soviet occupation, c.1945

During the Battle for Berlin and the Soviet push into the centre of the German capital, the school was occupied by a Soviet battalion on 23rd April. The Soviet military maintained a presence at the former pioneer school for the next 40 years, with parts used by the KGB.

After the war the building housed the Soviet Military Administration in Germany until 1949, when the German Democratic Republic was formed. Today, much of the school has been reclaimed for housing and the mess the building is home to the awkwardly named, German-Russian Museum which tells the story of WWII from the Russian perspective.

DSC_0492wm
The former Officers’ Mess today (Matthew Moss)

The surrender was signed by three representatives of the German high command, Field Marshall Wilhelm Keitel, Admiral Von Friedeburg and Colonel General Stumpff early on the 9th May, 1945 – in the presence of Soviet commander in chief Marshal Georgy Zhukov and Air Chief Marshal Arthur Tedder – Deputy Supreme Commander at Supreme Headquarters Allied Expeditionary Force.

IMG_20200220_141737a (1)wm
The hall in which the surrender was signed (Matthew Moss)

The initial instrument of surrender had been signed in Riems, in France, the day before but the documents were officially ratified in Berlin at 00:16, on 9th May. The Soviets believed it was more fitting that the surrender be signed in the German capital – highlighting the Soviet role in victory. The surrender ended both the last of the fighting around Berlin as well as the war in Europe.

In 1967 the Soviet Armed Forces in Berlin established the museum, then called the ‘Museum of Unconditional Surrender of Fascist Germany in the Great Patriotic War 1941-1945’, the hall was restored to look as it did on the night of the surrender.

It was a surreal experience being in a room which was witness to one of history’s most defining moment and you could certainly feel the history of the room.

You can find out more about the museum here.


If you enjoyed the video and this article please consider supporting our work here. We have some great perks available for Patreon Supporters.

The Art of Persuasion – the Abram Games Exhibition

I recently had the opportunity to visit the National Army Museum in London and check out their current exhibition, The Art of Persuasion, a look at the wartime work of graphic designer Abram Games. While you may not recognise the name you will probably recognise some of his impressive and striking posters.

Games’ work is instantly arresting with an eye-catching starkness which underlines the messages he sought to convey. In the video above I aim to give a feel for the exhibition and, if you are unfamiliar with him, a feel for Games’ work.

He joined the army in 1940 and began designing posters for both military and civilian audiences in 1941. Over the next 5 years he designed over 100 posters, some of which have become iconic.

Some of Games’ posters designed to dissuade loose talk (Matthew Moss)

Describing himself as a ‘graphic thinker’ Games used silhouettes and contrasting colour and vivid subjects. Largely self-taught Games was extremely passionate about his work and by November 1942 had been made ‘Official War Poster Artist’.

A shot of the exhibition space showing some of the posters on display (Matthew Moss)

The exhibition not only displays his work but also explains how Games created his posters, often working from models or taking photographs of soldiers training. Some posters have his original sketches displayed next to them to show how the concepts evolved.

His posters encouraged young women to join the ATS, soldiers to volunteer for the Commandos and civilians to support the war effort. In addition to posters for the War Office, some of his most recognisable work, including the ‘Your Britain, Fight For It Now’ posters were designed for the Army Bureau of Current Affairs in an effort to raise morale and promote the idea of post war reform and progress. He also designed a series of powerful, striking posters for appeals to aid Europe’s Jews, a cause he was deeply connected to as a Jew. Games was demobilised in 1945 and enjoyed a long, successful civilian career, he died in 1996.

Appeal posters to aid Europe’s Jews (Matthew Moss)

The National Army Museum’s exhibition works hard to give a feel for not just the work but also the man and his motivations. Games’ wartime posters are extremely rare, unsurprising when most were covered or torn down after a few months, so it was a treat to see them in person. Up close you get a sense of what it would have been like to see one on a barrack wall or a billboard 75 years ago. The exhibition also had some interesting interactive elements with a touch screen allowing visitors to create their own Games-style posters as well as another screen with video interviews with Games’ daughter and people who knew him talking about his work.

Games’ work are not just pieces of art but also important historical objects that can help us understand what the war was like and what motivated people to fight.

Find out more about the exhibition on the National Army Museum’s website, here.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.

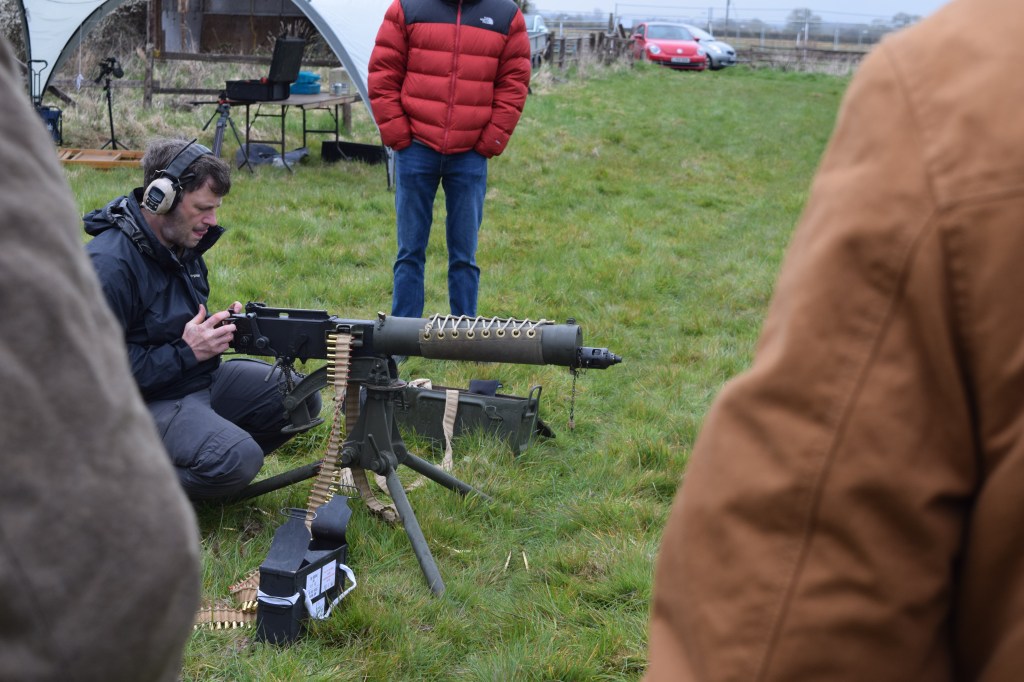

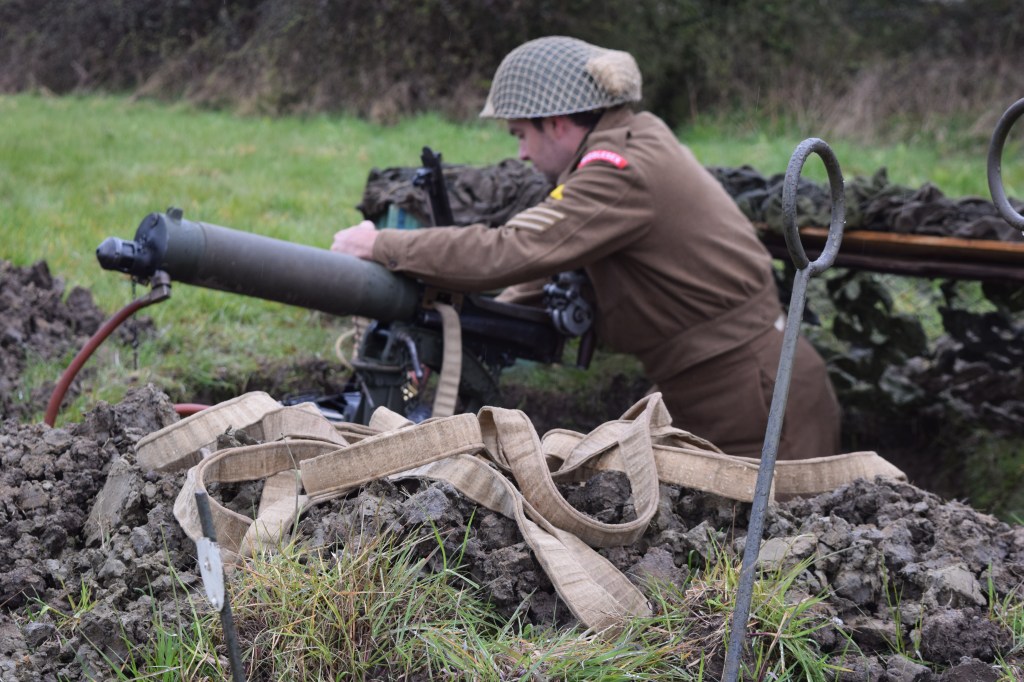

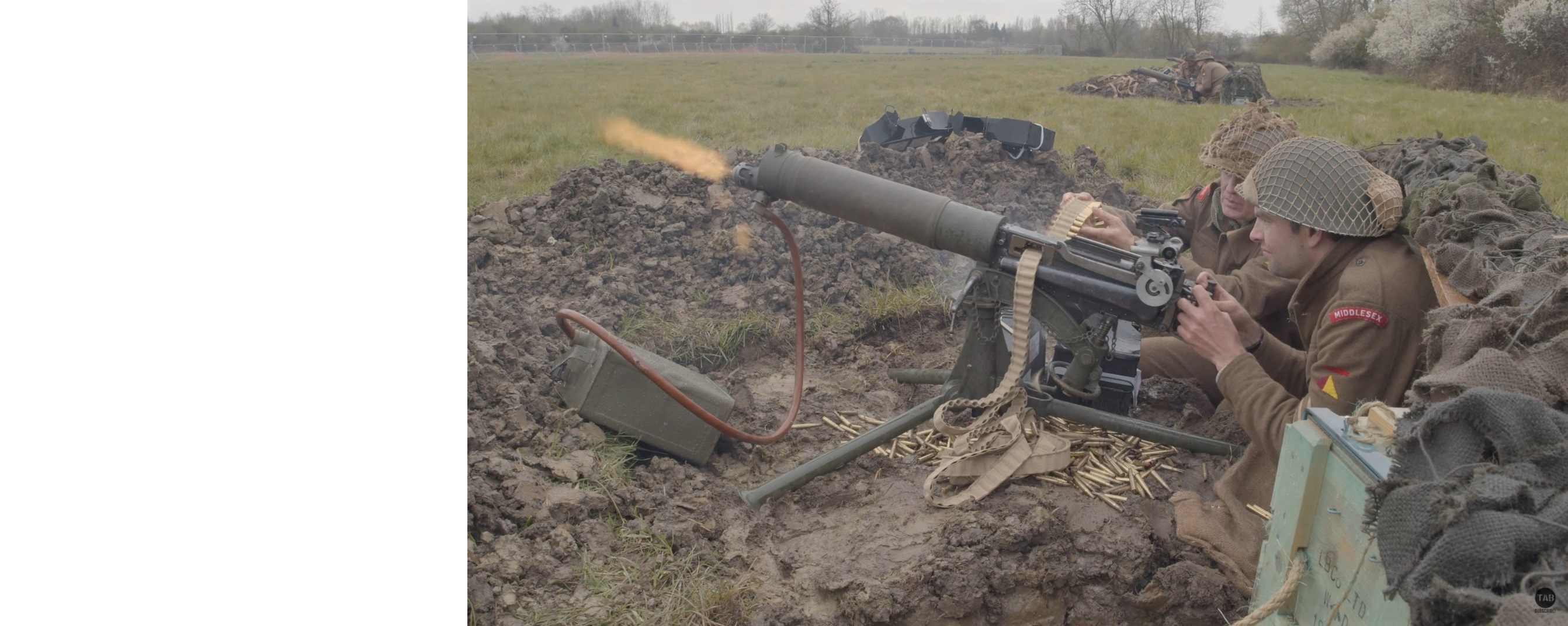

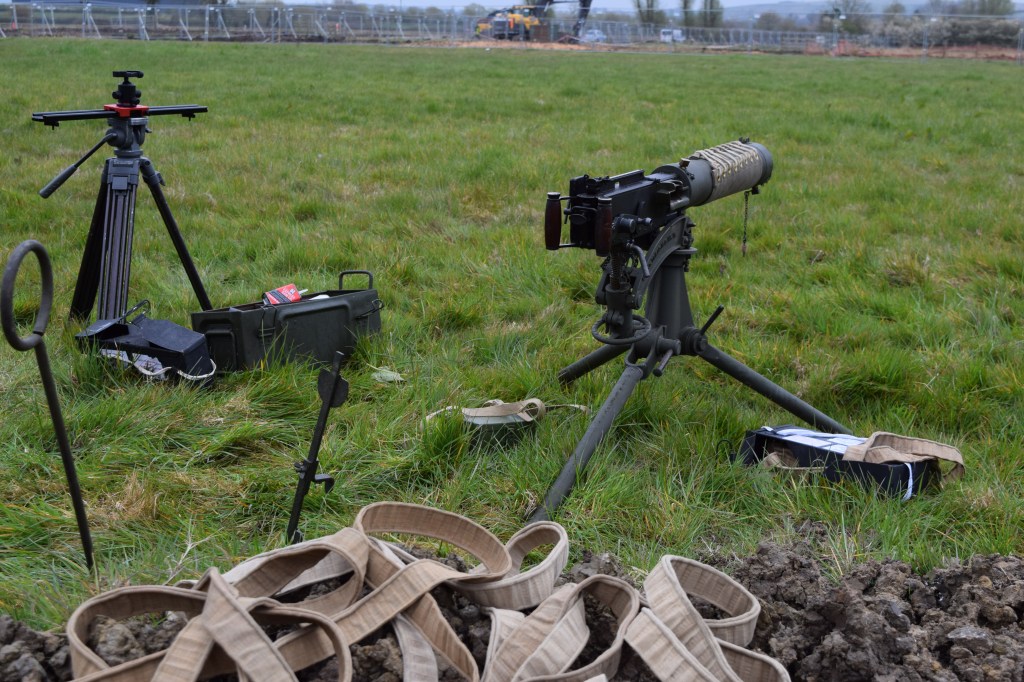

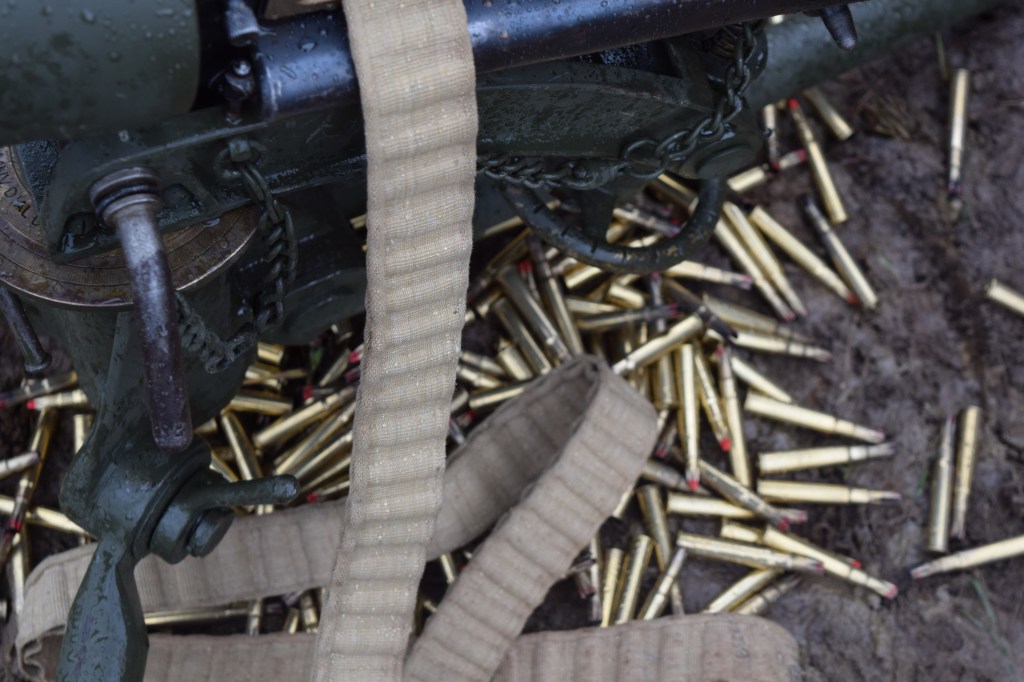

Vickers Gun Disassembly

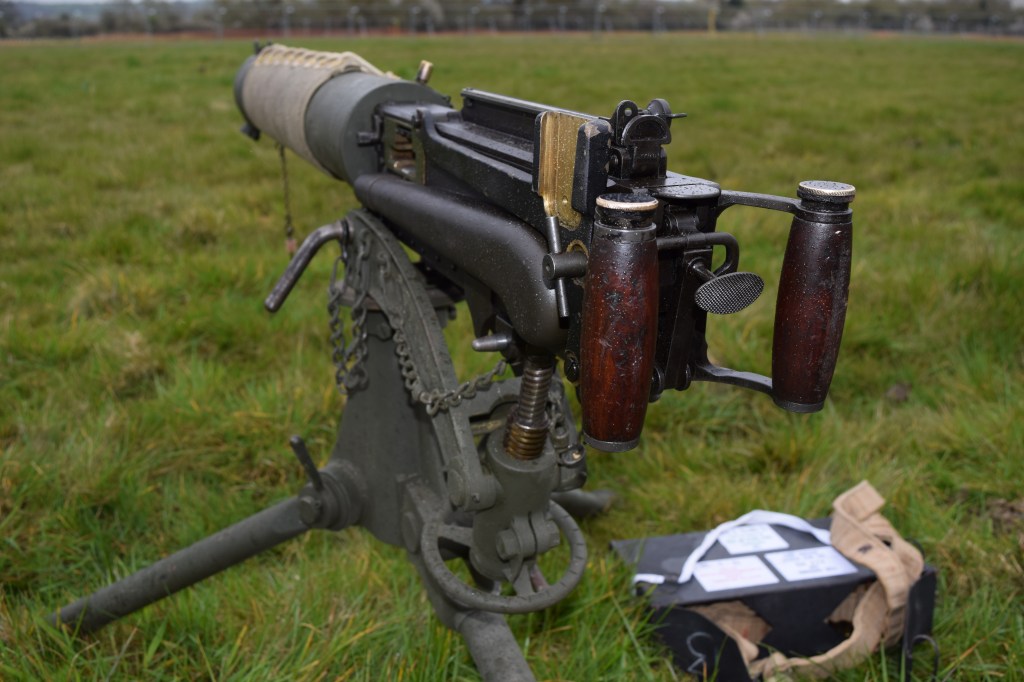

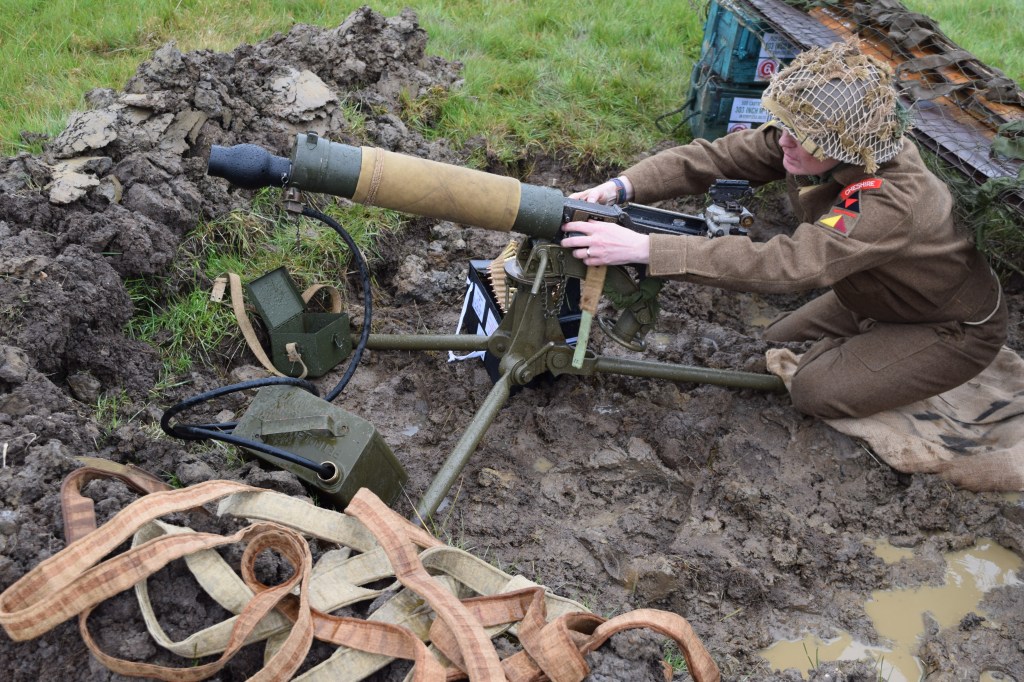

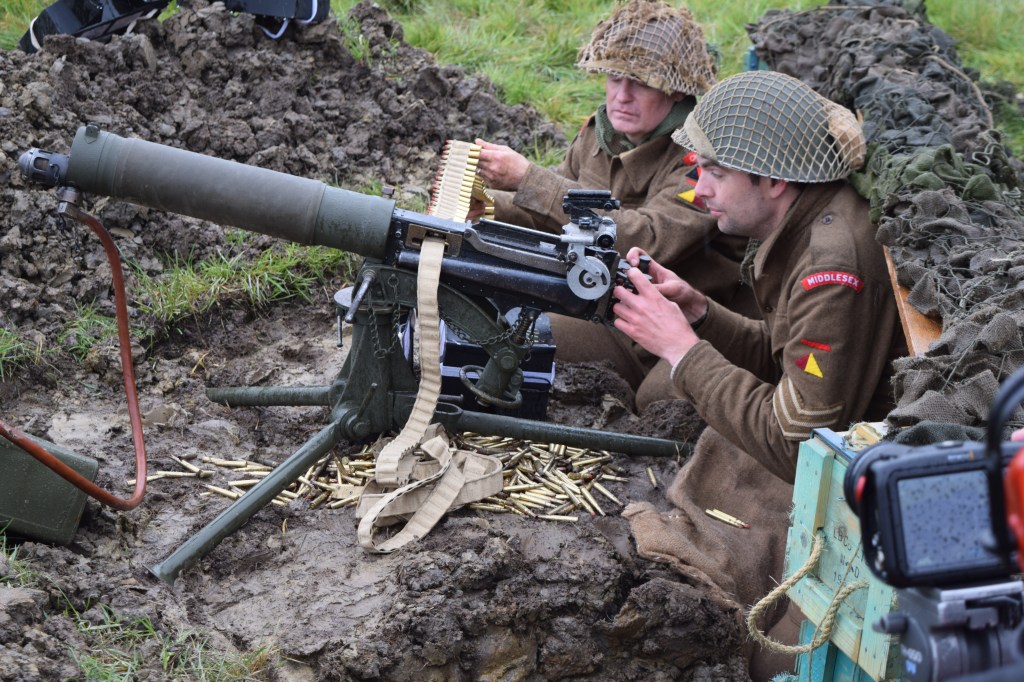

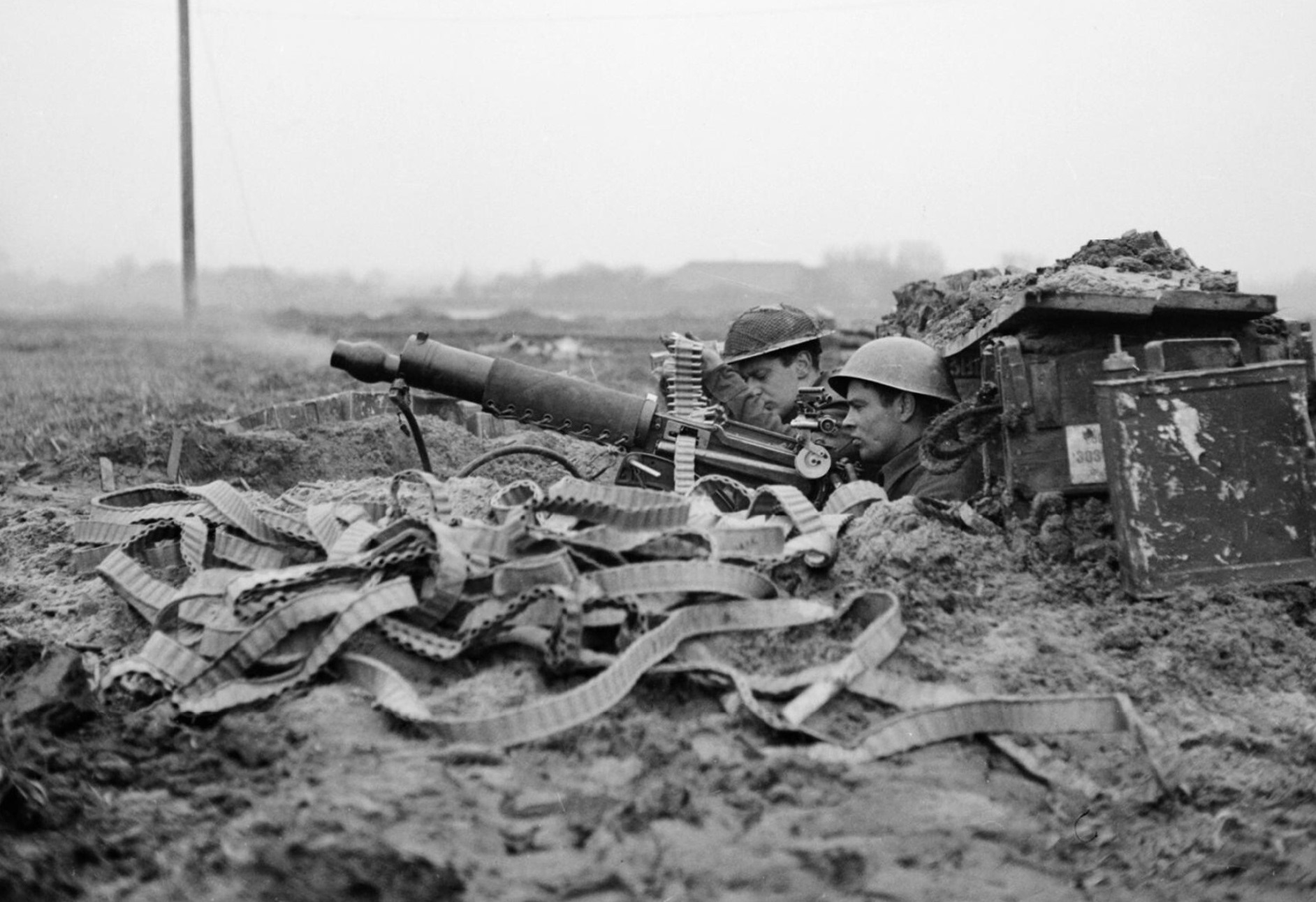

The Vickers Gun is an iconic weapon, developed from the Maxim and adopted by the British in 1912. It served for over 50 years in conflicts all around the world. In this video, we’re lucky enough to have Richard Fisher of the Vickers Machine Gun Collection and Research Association shows us how to disassemble a the gun and talk us through its internals.

Big thank you to Rich for taking the time to help with this video and provide the voice over explaining the process! We’ll have more videos on the Vickers Gun in the future! Check out Richard’s work over on the Vickers Machine Gun Collection and Research Association’s site here.

I’ll let Rich explain the disassembly process in real time in the video but here are a couple of photographs of the gun disassembled:

DSC_0371
The Vickers gun field stripped (Matthew Moss)

This is the gun in its fully field stripped condition, with lock still assembled, but with its fusee spring and cover off and its barrel and action removed. Just below the barrel is the feed block.

Here’s the Vickers Gun’s lock disassembled into its 14 component parts:

DSC_0363
The gun’s disassembled lock (Matthew Moss)

This photo gives us a good look inside the receiver with the barrel, action and side plates removed, The spade grip assembly simply folds down to allow the action and barrel to be slide out of the gun.

DSC_0366
Once the action and barrel is removed you can look straight through the receiver and down through the water jacket (Matthew Moss)

Finally, here’s the gun reassembled and ready for action.

DSC_0353
The gun fully reassembled (Matthew Moss)

Thanks again to Richard for his help with this video, it was great to collaborate and hopefully we’ll have more videos with Rich in the future.  Please check out the Vickers Machine Gun Collection & Research Association’s site to find out more about what they do. They have some wonderful resources, including a comprehensive collection of manuals, for not just the Vickers but also the wider British Army from the past 100 years. You can also order copies of the brilliant instructional posters which were featured in the video over on the the associations website too!

If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.



Rifle No.4 Cutaway

We’ve looked at a few cutaways in the past, today we’re going to take a look at a Lee-Enfield Rifle No.4 cutaway.

One of the main drawbacks of the venerable SMLE was that it was expensive and time consuming to manufacture. The No.4 was an attempt to address this. It evolved from the experimental No.1 MkV and MkVI which were trialled in the early 1920s. The key mechanical change was that the barrel was free-floated and had a heavier profile to deal with expansion of the stock. The No.4 also had a new rear aperture sight mounted further back on the receiver giving a better sight picture and a longer sight radius.

DSC_0317
Close up of the Rifle No.4 Instructional Cutaway’s receiver (Matthew Moss)(Matthew Moss)

With this cutaway we get a look inside the butt trap, which has a pull-through and oil bottle inside, then as we move to the action we get a look at the rifle’s trigger, sear, sear spring and magazine catch.  If we look closely we can see the bolt head catch. The magazine has also been cutaway, with the magazine follower spring just visible.

This cutaway rifle has had all of the wood around its receiver removed, so we can see the magazine housing floor plate and the point where the retaining screw attaches to the trunnion. As we move along we get a look inside the chamber where the outline of the cartridge neck is easy to see and we can also see the barrel’s rifling too.

DSC_0316
Rifle No.4 Instructional Cutaway (Matthew Moss)

Down near the muzzle the rifle’s upper retaining band and the hand guard have been cutaway to show the barrel inside. The No.4 was adopted for service officially in November 1939 and just over 4 million were made during WW2. We’ll have a full, more in-depth video on the No.4 in the future.

Check out our earlier videos featuring cutaways including the Pattern 14 and the CETME AMELI.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.

The 6pdr QF Anti-Tank Gun

Previously we have discussed Britain’s first anti-tank gun, the QF 2pdr. Today we’re going to examine its successor, Britain’s second anti-tank gun – the 6pdr.

Development of the gun actually began before the war in 1938, but the QF 6pdr MkII Anti-Tank gun didn’t enter full production until 1942. After the evacuation from Dunkirk in the summer of 1940, and the loss of nearly 600 AT guns, it was decided to focus on the 2pdr which was then already in production. The 6pdr saw action for the first time in the Western Desert against the Afrika Korps, serving alongside its predecessor the 2pdr.

DSC_0724
QF 6pdr AT Gun (Matthew Moss)

The 6pdr was a 57mm gun, firing a 57x441mmR shell effective out to 1,700 yards or 1,500m – with a rated maximum range of 5,000 yd. Unlike its predecessor the 6pdr could fire both armour piercing and high explosive rounds. The gun weighed in at 2,520 lb or just under 1,150 kg. Manned by a six man crew the gun had a vertically sliding breechblock and could fire up to 15 rounds per minute.

DSC_0732
Breech View of the QF 6pdr (Matthew Moss)

The 6pdr had a Hydro-pneumatic recuperator which mitigated some of the gun’s recoil. The barrel recoiled around 30 inches along its cradle immediately after firing. It was mounted on a variety of carriages with the most common being a split trail carriage with 45-degrees of traverse left and right. The 6pdr could be fired with its split trail deployed or closed. The gun could be elevated 15-degrees and depressed 5-degrees – less than its predecessor, although elevation was not a key requirement for a direct fire weapon like an anti-tank gun.

Five Marks of 6pdr were produced, the MkI development model was declared obsolete and didn’t enter production. Production of the MkII began in late 1941, it had a shorter barrel and was later replaced by the longer barrelled MkIV, which also had a single-baffle muzzle brake, one of the first British guns to have one. The MkIII and V variants had special lugs to enable them to be mounted in tanks. The first guns produced were MkIIIs, while these could be carriage mounted they were earmarked for tanks.

THE BRITISH ARMY IN NORTH-WEST EUROPE 1944-45 -IWM
Airborne troops with a 6-pdr anti-tank gun in Hamminkeln, March 1945 (IWM)

The MkIII Airborne carriage was designed to be lighter so it could be transported aboard gliders and aircraft. Its trail legs were jointed in order to save room and the carriage was narrower which restricted the traverse to 37-degrees left or right. The shield was also redesigned with an even smaller profile. Identifiable by its straight, rather than wavy, top edge.

The gun was aimed using a No.22C 2 or 3-power sighting telescope, located on the left side of the gun, which projected through a sight box in the shield. The gunner also had an elevation wheel to his right and, unlike the 2pdr, the 6pdr used a free traverse rather than a geared wheel system. This was controlled by the gunner pushing or pulling the gun. The gun was fired by a firing lever on the left side of the breech. On the right side of the gun, an ammunition box with space for three rounds could be attached to the shield for emergency use. The gun shield consisted of two/four sections, made of bulletproof steel plate, which had a lower profile than the earlier 2pdr.

COMMONWEALTH FORCES IN ITALY 1944 - iwm
A New Zealand 6-pdr anti-tank gun in action against enemy positions at Cassino, March 1944 (IWM)

Unlike the 2pdr, the 6pdr had an array of ammunition that continued to evolve during the war. The initial armour piercing round could penetrate 70mm or 2.8in of armour at 1,600 yards / 1,500m while the Armour-Piercing Capped Ballistic Cap (APCBC) introduced in early 1943 increased this to 3.1in, while the Armour-Piercing, Discarding Sabot (APDS) shot introduced in Spring 1944, enabled it to effectively engage Tiger I and Panther frontal armour, penetrating 4.8 inches of armour at 1,500m. It is worth noting that figures on penetration vary somewhat from source to source. A high explosive shell that allowed the guns to engage non-armoured targets more effectively was introduced in 1943.

Initially used solely by the Royal Artillery’s anti-tank regiments comprising of four batteries, each with 12 guns. By 1944 an infantry division would be equipped with as many as 78 6pdrs and more than 30 heavier 17pdrs while an armoured divisions was equipped with 30 6pdrs.

THE BRITISH ARMY IN NORTH AFRICA 1942 -iwm2
British 6pdr anti-tank gun in action in the desert, 3 September 1942 (IWM)

The 6pdrs first saw action in North Africa proving to be highly effective against both Italian and German armour. During the Second Battle of El Alamein, 19 6pdrs were instrumental in the defence of Outpost Snipe. The 2nd Rifle Brigade and their supporting 6pdrs managed to knock out more than 55 Axis armoured vehicles including Panzer IIIs, Semovente 75/18 self-propelled guns and a number of Panzer IVs. The gunners used enfilading fire to target weaker side armour and interlocked fields of fire caught advancing tanks in killing grounds.

During Operation Market Garden, the airborne 6pdrs of the Airlanding Anti-Tank Batteries proved critical in beating back German armoured counter attacks around Oosterbeek and at the bridge in Arnhem itself. They were instrumental in repulsing the SS reconnaissance battalion which attempted to cross the bridge on the second day of the battle.

One desperate action involving a section of two 6pdrs saw three StuG-III self-propelled guns knocked out before the crews of both guns were killed. The last survivor, Lance-Sergeant Baskeyfield managed to man on of the guns alone and destroy a fourth StuG-III before he was killed. For his actions he was awarded the Victoria Cross.

Churchill III N africa 1942 IWM
Churchill MkIII tanks armed with QF 6pdrs, North Africa, 1942 (IWM)

Like its predecessor the 6pdr was also used as a vehicle gun, mounted in the Churchill Mks III & IV, Valentine Mk IX and the Crusader Mk III tanks as well as the Canadian MkII Ram and the MkII AEC Armoured Car. These vehicles had previously been designed to mount the 2pdr, but were adapted to fit the new 6pdr, in some cases having to remove a crew member from the turret to make enough room to fit the new gun. The Cavalier, Cromwell and Centaur tanks were designed to mount the new larger gun from scratch.

The first tank, equipped with a 6pdr, to go into action was the Mk III Churchill, which took part in the disastrous Dieppe Raid in August 1942. The new tanks, assigned to the 14th Army Tank Regiment (The Calgary Regiment (Tank)), were all abandoned or destroyed during the raid.

In North Africa, like the 2pdr, the heavier guns were mounted on trucks as Portees. Additionally AEC produced the Mk1 Gun Carrier or Deacon self-propelled gun – a 6pdr mounted in an armoured turret on the back of an AEC Matador truck chassis. These performed well in the desert but more enclosed country made them vulnerable and they were removed from service after the North African campaign.

THE BRITISH ARMY IN NORTH AFRICA 1942 -iwm
A truck mounted 6-pdr anti-tank gun (Portee) in the Western Desert, 31 May 1942 (IWM)

It was not only tanks the 6pdr found itself mounted in. Coupled with the Molins automatic loading system it was also mounted in the RAF’s De Havilland Mosquito Mark XVIII ‘Tstetse’ and the Royal Navy’s motor torpedo boats. The Navy’s Molins auto-loader allowed the gun to fire a 6-round burst at a rate of 1 round per second. Nearly 600 naval versions of the gun, the QF 6pdr MkIIA, were produced. The RAF’s use was more short-lived with only 17 6pdr Tstetses built before 3in rockets were standardised. Despite this two Tsetse of 248 Squadron sank the German submarine U-976 in March 1944.

RN molins
QF 6pdr Molins Gun aboard HMS Mantis, 1944 (IWM)

The US also adopted the 6pdr to replace their 37mm M3 anti-tank gun. It had initially been planned to produce the 6pdr in the US under the lend-lease agreement (4,242 guns were eventually delivered for British use) but in May 1941 the US approved the production of the 6pdr as the 57mm M1 Gun. The US M1 guns had a longer barrel than their British counterparts and many smaller differences in manufacture. The US, like Britain, mounted the gun on vehicles such as the M3 half-track – the T48 Gun Motor Carriage. By the end of the war the US has produced over 15,600 M1 anti-tank guns.

Ordnance QF 75mm was developed from the 6pdr, the 75mm guns were manufacture by boring out the 6pdr’s barrel to enable it to fire the US 75mm M46 HE round. The QF 75mm was fitted to a number of British armoured vehicles from 1943 onwards.

raf molins
RAF De Havilland Mosquito Mark XVIII ‘Tstetse’ with Molins QF 6pdr (IWM)

The 6pdr was a simpler gun to manufacture than its predecessor but despite being effective throughout the war it too was surpassed by a heavier gun, the QF 17pdr AT gun, which was developed in the early 1940s, the 17pdr was accepted for service in May 1942 but the 6pdr remained in service alongside the heavier guns.

After the end of the war the 6pdr continued to see use with a number of countries including Israel during the 1950s, the Irish Army and South Korea during the Korean War. The 6pdr remained in British service until 1951, before being replaced entirely by the 17pdr.

If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.


Gallery:


Specifications:

Overall Length: 185in / 4.7m
Weight: 2,520 lb / 1,13 kg
Action: Semi-automatic, hydrospring recoil buffer
Calibre: 6pdr or 57x441mmR
Elevation: -5 / +15 degrees
Traverse: 9 degrees
Rate of fire: 15 rounds per minute


Bibliography:

Guns for Australia, AWM, (source)

Desert victory, AWM, (source)

Anti-Tank Weapons, T. Gander, (2000)

British Anti-Tank Artillery 1939-45, C. Henry, (2004)

Tsetse – the DH Mosquito Mk XVIII, R. Knapman (source)

World War II Ballistics: Armor and Gunnery, L. Bird & R. Lingston, (2001)

‘The 6 Pounder Anti-Tank Gun’, WWII Equipment.com, D. Boyd, (source)

Our special tanks to the collection the gun belongs to for their permission to film the gun.

Live Fire: Bren Mk1 (Modified)

Introduce in British service in 1938, the Bren remained in use into the 1990s. Based upon the Czechoslovakian series of ZB light machine guns, its name comes from an amalgamation of its origins: BR for Brno, the factory in Czechoslovakia, and EN for RSAF Enfield where it had been adapted for British service and was to be produced.

The Bren is chambered in .303, is gas operated and fires from an open bolt. It feeds from a top-mounted 30 round box magazine, as such the sights are offset to the left meaning the Bren can only be fired from the right shoulder – which as a lefty, I quickly realised.

Bren Mk1(Modified) (Matthew Moss)

This example does not have the scope mounting dovetail machined into the left side of its receiver, or the folding grip and the hinged shoulder rest indicating that it is a Mk1 (Modified) ‘Pattern A’ gun, which was introduced after the evacuation of Dunkirk, the British Expeditionary Force lost most of the 30,000 Brens that had been taken to France. Only around 2,000 remained in inventory in the summer of 1940, so increasing production was essential, this model and the even more simplified MkII were introduced. While at the same time the BESAL light machine gun was developed as an emergency alternative by BSA – check out our earlier video on the BESAL here.

DSC_0829
The BSA-developed BESAL light machine gun (Matthew Moss)

As a Mk1, the gun has the original profile buttstock, with the fitting for a rear folding grip and tripod attachment point as well as a buttcap. It also has the drum rear sight rather than the later ladder sight of the Mk2 & 3. It also had a folding cocking handle and this Mk1(M) gun also has the earlier pattern height adjustable, rather than fixed, bipod legs. This gun is marked ‘MK1, with an E within a D, 1942’ indicating it was made at RSAF Enfield.



DSC_0451
Bren Mk1(Modified) with magazine off and dust cover closed, note the drum sight but lack of receiver cut for optic (Matthew Moss)

The Bren’s relatively slow rate of fire (of around 500 rounds per minute) makes it controllable and very easy to fire single shots while in full auto. The Bren does, however, have a selector on the left side of the gun, just above the trigger guard, which can be set to safe, semi or fully automatic. The Bren has a rocking recoil impulse as its heavy bolt moves back and forth, easily manageable if held tightly into the shoulder with the off-hand holding onto the wrist of the stock. The top-mounted magazine when fully loaded does have a tendency to want to fall to the side but once you’re used to this it’s not really an issue. The legend surrounding the accuracy of the Bren is certainly somewhat valid, at the time it was recognised as an accurate weapon and I found it accurate from my short time behind the trigger.  I found the Mk1’s rear sight aperture and drum adjustment easy to use.

Spent cases eject out of the bottom of the receiver, the weapon had a sliding dust cover for when the magazine was removed and the charging handle is non reciprocating and folds forward.

DSC_0456
Bren Mk1(Modified) with magazine off, dust cover closed and barrel removed (Matthew Moss)

The Bren has a quick change barrel system. To remove the barrel the release catch in front of the magazine was rotated upwards to unlock and then the barrel was rotated 90 degrees clockwise by bringing the carrying handle up to the 12 o’clock position and then sliding it forward.

We’ll have a more in-depth look at the Bren and its Czech predecessors in the future. My thanks to my friend Chuck over at Gunlab for letting me put some rounds through his Bren, I got a real kick out of it!


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.
