In our latest video we take a look at the massive 15 Inch Coastal Guns that protect the port of Mahon in Menorca. The guns, built by the British Vickers company, could fire an 860kg shell up to 35km.
The battery of two 15 or 381mm guns was added to the Fortalesa Isabel II’s emplacements in the early 1930s and were in active service for nearly 80 years. For more information on their history and design, check out the video and full in-depth blog here.
Below are some photographs I took of the battery and its ancillary support buildings. While researching I also found a couple of great contemporary photos.
A view of the 15 Inch Vickers Gun from the rear (Matthew Moss)A view of the front of the gun turret’s housing, while not thick enough to withstand a direct hit the turret would protect against shrapnel (Matthew Moss)A view of the front of the gun, note the small hatch in the front of the gun housing, this would have been the gun aimer’s postion (Matthew Moss)The sliding hatch and crane used to bring up cordite charges when the gun was in action. (Matthew Moss)A view of the rear of one of four supporting 6 Inch Vickers guns (Matthew Moss)The battery’s support buildings: Stores, offices, barrack blocks(Matthew Moss)The Battery’s other 15 Inch Gun on the other side of the old quarry that houses the battery’s support buildings (Matthew MossThe left side of the turret, not the ladder for roof access (Matthew Moss)
A facebook group for those who served at Fortales Isabel II has a number of brilliant contemporary photographs of the guns:
These photographs show the guns being transported by a specially laid, segmented rail track in the early 1932s, the first shows the guns at the dockside with another showing it being moved through a busy street.
The group also has some contemporary photographs of the gun emplacements including the rangefinder and the inside of the gun housing:
The gun aimer’s position with communications to the rangefinder bunkers near by:
The group also has some excellent recent photos of the restored interior of the gun turret the magazine below. The first photos show the magazine and system for bringing the 860kg shells up from the projectile store:
Sign reads: ‘Ordinary projectiles will only be used with reduced load‘
Great shot of the various tracks, winches and lifts used to get the massive shells up to the turret:
Interior shot of the turret with a shell ready to be winched onto the loading tray and loaded into the breech:
View of the gun aimer’s positions complete with shining brass speaking tubes and controls:
Last summer I was lucky enough to visit the vast Fortalesa Isabel II which defended the port of Mahon, in Menorca. One of the fort’s most impressive sights is its huge 15 inch gun battery.
The Spanish island of Menorca, in the Balearic Islands, has a long and storied military history. The strategically important harbour of Mahon was historically the envy of the British, Spanish and French and was the reason for Fortalesa Isabel II’s construction. The for was the last major fortification built on the island, with the Spanish military beginning construction in 1850. A second phase of major improvements was made during 1853-1864. Work to improve and modernise the fort continued into the 20th century.
The ornate main gate of the fort, defended by a counterguard and rifle slits either side of the gate (Matthew Moss)
The Fortress is built on a beautiful rocky headland of La Mola at the mouth of the harbour and covers about a square kilometre. Construction was a massive undertaking and took over twenty years to complete, costing over nine million pesetas. The fortifications are some of the Mediterranean’s most impressive of the period.
The fort is a maze of tunnels, galleries, casements and buildings surrounded by a deep, dry moat. The fort’s first line of defence consisted of a moat 9 metres (30 feet) deep covered by rifle loop holes for infantrymen and embrasures for artillery. Interlocking fields of fire defend the landward approach to the fort’s main entrance, the Queen’s Gate.
Map showing the layout of the fort during the 19th century before the 15 inch guns were added (source)
Designed to dominate the entrance to the harbour the fortress was intended to hold 160 artillery pieces of various sizes, including Krupp guns and howitzers, many of these protected by strong stone casements. The fort’s armaments evolved overtime from muzzle-loaders to faster firing breech-loaders.
The Spanish continued to upgrade the fort’s guns over the decades mounting rifled guns and howitzers of various calibres ranging from 15cm to 30.5cm. In addition to the fort’s guns the defences also included mines in the harbour mouth and later a battery of shore launched torpedoes.
By the early 20th century the fort’s guns were increasingly obsolete against the backdrop of the naval revolution that saw Dreadnoughts come to dominate maritime warfare. With advances in naval architecture, armour and guns the Spanish government decided to purchase a number of massive 15 inch naval guns that could fire a 1,895 lb (860kg) shell up to 22 miles.
One of the fort’s two 15 inch Vickers guns in position on Cape Espero (Matthew Moss)
Spain purchased 18 of these massive guns made by the British Vickers company, they had originally been designed for the cancelled Brazilian battleship Riachuelo. In Spanish service the guns were officially designated the Costa de 38.1cm Modelo 1926. During the 1930s the new coastal guns were installed on both the Spanish mainland and Menorca. Two guns placed in the Castillitos Battery, defending Cartagena, opened fire on a Spanish Nationalist fleet, during the dying days of the Spanish Civil War. While Menorca’s guns never fired a shot in anger, they acted as a deterrent.
The first guns reached Mahon in 1932, with a second arriving in 1936, these were mounted on the cliffs of Cape Espero on the La Mola peninsular. The guns were so huge they had to be transported to the fort on a specially built railway pulled by hand and traction engine. These formidable new guns brought Fortalesa Isabel II’s armament up to date, enabling it to protect Mahon from any modern warship.
One of the massive 15 inch guns being pulled along its special track by a traction engine through the streets of Mahon (source)
The 15 inch (or 381mm) Vickers battery at the fort was positioned 70m above sea level and commanded the entrance to the harbour. Six guns were eventually sent to Menorca with two placed on La Mola, two more installed in a battery at Favaritx (the remains of which can be seen here) in the north of the island and a pair at a battery near Llucalari in the south of the island.
While the guns at Favaritx were later removed, the guns at Llucalari remain. The fact that six of these massive and expensive naval guns were placed on Menorca shows its strategic value during the period.
Satellite photo showing Menorca’s other 15 inch battery at Llucalari (google maps)
The guns were mounted in barbettes which allowed the guns to traverse up to 300 degrees. The gun housing of the turret was armoured but while it would not protect the crew from a direct hit, it would protect against shrapnel. Below the guns were magazine stores for both cordite charge bags and projectiles, the machinery needed to rotate and move the gun and the motors to power it. Inside the turret were controls to open and close the breech, lift and lower the loading tray and aim the gun. The guns had a potential maximum range of 35km or 22 miles, however, the guns at La Mola lacked the necessary range-finding equipment to achieve this range.
A contemporary photograph showing the interior of the gun turret. A shell is sat on the loading try ready to be pushed into the breech. (source)
The ancillary buildings for the battery on La Mola are built just behind the two gun emplacements with offices, stores and barracks built in an old quarry. As well as the two main guns the battery was supported by four faster firing 6 inch Vickers guns.
One of Menorca’s 15 inch guns firing c.1980s (source)
With the eruption of the Spanish Civil War in 1936, Menorca was initially held by the Republicans. But in 1939, the island fell to General Franco’s Nationalists and the fort’s military prison was used to house a number of prominent Republican prisoners. Throughout the Cold War the fort continued to be used by the Spanish Army as a training centre but the rise of air power, the invention of the cruise missile and nuclear weapons rendered the fort and its guns increasingly obsolete.
The last of Spain’s 15 inch guns were finally decommissioned in the mid-2000s, after nearly 80 years in service. Fortalesa Isabel II and her two massive guns never saw action, and today the site is maintained as an impressive museum which is well worth a visit.
If you enjoyed the video and this article please consider supporting our work here.
Specifications:
Length: 18m or 59 feet
Weight: 86.9 tons
Action: breech-loading
Calibre: 15 inch or 381mm
Elevation -5 / +40 degrees
Traverse: 300 degrees
Rate of fire: 2 rounds per minute
Bibliography:
The Fortress of Isabel II on La Mola in Mahon Harbour (19th 7 20th Century), F. Fornals (2007)
The Conquests and Reconquests of Menorca, M. Mata (1984)
Just a quick reminder that you can keep up to date with TAB content via Facebook. You can find our page here, we post some extra photos and updates on upcoming videos!
In the late 1970s James Sullivan, one of ArmaLite’s former chief designers and one of the men responsible for the M16, began developing a new light machine gun for a company in Singapore. The Ultimax 100 is a 5.56x45mm, gas-operated magazine-fed light machine gun. It uses a short stroke gas piston system that acts on a continuously recoiling bolt.
Sullivan was originally approached to develop a new select-fire intermediate cartridge rifle for the Singaporean military. Working with Chartered Industries he developed a very lightweight light machine gun. Sullivan was especially interested in recoil mitigation and developed the Ultimax’s bolt to travel rearward without ever hitting a buffer or the receiver. This greatly lowers perceived recoil and makes the weapon much flatter shooting.
A MkII Ultimax which featured a fixed barrel (source)
The Ultimax fires from an open bolt (which uses a multi-lug rotating bolt head) and has a non-reciprocating charging handle. It’s buttstock can be removed to make the weapon even more compact. The absence of a buffer in the butt allows the weapon length to be reduced to just 81cm (32 inches), making it an excellent weapon for jungle or urban combat. The Ultimax is also extremely light for a squad automatic weapon, weighing approximately 4.7kg unloaded, and around 6.5kg when loaded with a 100-round drum.
Diagram from an early marketing brochure showing the MkII and MkIII models of the Ultimax (source)
While the MkII Ultimax has a fixed barrel, the MkIII has a quick change barrel which releases by pulling a catch the the rear and simply twisting the barrel and pulling it forward. Unlike other machine guns the bolt can remain forward when the barrel is being removed.
The Ultimax feeds from either an adapted STANAG magazine or a 100 round drum magazine, which has a controlled internal feed rather than a belt. The drum was co-developed by Sullivan and Bob Waterfield. The weapon’s rear pistol grip is similar to the Stoner 63 weapon system’s (which Sullivan had also worked on) while the smaller, grooved front pistol grip is reminiscent of the classic Thompson submachine gun’s.
Cover of Chartered Industries sales brochure for the Ultimax 100, featuring a MkIII, note the bayonet lug (source)
It is said that Singapore’s government would not allow the Ultimax to be entered in the US’ Squad Automatic Weapon trials as the US government had refused them the technical package for the M16. Other sources suggest there was a commercial disagreement between Colt and Chartered Industries Over region sales of the M16. As a result the FN Minimi won the trials and was adopted as the M249. Those who have fired both claim that the Ultimax would have given the Minimi more than a run for its money. Despite this the Ultimax has seen action around the world and has been in service with the Singapore Army since 1982.
An updated version was offered in the US Marine Corps’ Infantry Automatic Rifle trial but was beaten by Heckler & Koch’s HK416, now the M27. ST Kinetics, formerly Chartered Industries, continues to improve and produce the Ultimax with the Mk8 introduced in 2012.
If you enjoyed the video and this article please consider supporting our work here.
The Australian military adopted the F1 submachine gun in 1962, with the first guns reaching troops in April 1963, it replaced the venerable Owen gun. Like the earlier Owen the F1 had a top-mounted magazine – a position that lent itself to prone firing and more comfortable carrying when slung. But it also shared some similarities with the British L2A3 Sterling.
Men of the 7th Battalion, The Royal Australian Regiment demonstrate the F1 to the Australian Army Minister, Malcolm Fraser, in Vietnam in 1967 (Australian War Memorial)
The F1 entered service alongside the Australian L1A1 (self-loading rifle/FN FAL), it shared the rifles butt plate and pistol grip – slightly minimising additional unique parts needed by the submachine gun. Australian Ordnance had begun searching for a replacement for the ageing Owen gun after the Korean War. The Owen had been made quickly and cheaply during the Second World War and while it was well liked by Australian troops it was felt it could be improved upon. Maintenance of the older Owen guns proved difficult as each weapon had been hand fitted to speed up production and some parts proved not to be interchangeable.
Left side view of an Australian F1 submachine gun, from the 1970 production run (Matthew Moss)
A number of designs were developed including one designated the ‘Kokoda’ (presumably after the Kokoda Trail campaign fought by Australian troops in 1942). This design was lighter than the Owen but suffered from overheating problems. A series of designs from the Australian Design Establishment, designated the ‘X’ series, were then developed. These weapons incorporated elements from both the Owen and the British Sterling. Including the Sterling’s perforated barrel jacket and magazine and the Owen’s bolt, magazine orientation and forward pistol grip – a feature many troops with experience with both the Owen and F1 lamented to loss of with the adoption of the F1. The first two ‘X’ series weapons developed into the X3 which in 1962, after successful trials, became the F1.
The F1 used a standard blowback action with a non-reciprocating charging handle. The charging/cocking handle was positioned on the left side of the receiver with its slot protected from the ingress of dirt by a dust cover. The F1 has a two-position fire selector with up for ‘safe’ and down for ‘fire’. The trigger mechanism allowed for firing single shots by pulling the trigger to the half-way point, this allowed the sear to trip into the semi-automatic position (see the diagram below).
Diagram from Australian Army Parts List showing how the F1’s semi-automatic mode works (source)
Chambered in 9x19mm, the F1 fed from a 34-round curved magazine, although it could use straight, single-feed, Sten or Owen magazines. In the 1960s, in order to achieve commonality with Britain and other Commonwealth nations, that used the Sterling Submachine Gun, the Australian government contacted the Sterling Armaments Company to enquire how much a license to produce Sterling’s magazines would cost, only to be quoted an exorbitant fee. The Australian government were unwilling to pay for the license and produced them anyway. And as Sterling could not afford to take legal action were able to continue to do so – with the understanding they would not sell any commercially. The Australian government would later purchase a number of suppressed Mark 5 Sterling-Patchetts, also adopted by the British army as the L34A1.
The weapon’s ejection port was located on the bottom of the receiver ahead of the trigger guard. A small piece of metal was added in front of the ejection port, as a hand stop, to prevent the operator from inadvertently moving their hand over the port. The F1 had an in-line stock fitting into the rear of the tube receiver. The sights were offset to the right, the rear peep sight folded against the receiver when not in use while the front sight, rather than over the muzzle, projected from the right side of the magazine housing. The F1 could also mount the L1A1 self-loading rifle’s standard L1A2 sword bayonet.
Australian sailors aboard the destroyer HMAS Duchess wait to take part in a live firing exercise with their unloaded F1 submachine guns, c.1969. (Australian War Memorial)
The F1 weighed just over 7lbs (3.2kg), was 28 inches long and had a cyclic rate of approximately 600 rounds per minute. It had a solid butt stock, unlike the Sterling which had a folding stock. The F1 was produced solely by the Lithgow Small Arms Factory with most sources suggesting 25,000 were produced for the Australian military between 1963 and 1973. The Lithgow Small Arms Factory Museum were kind enough to look into the exact number made for us, and reported that there is some uncertainty surrounding the exact number produced with production report totals varying, giving a total of either 21,916 or 24,828.
The F1s saw extensive service in Vietnam and later with Australian peacekeeping troops through to the 1990s. It was issued to rear echelon troops, ACP and aircraft crews and to infantry sections. While the F1 was appreciated for its reliability, for those troops who had experience with the venerable Owen Gun, the F1 lacked a certain something. Colonel Warren Feakes noted that “every time I picked up an F1 I had the feeling that something was missing.” Another Australian veteran, Warrant Officer Kevin Konemann, who served in Vietnam in 1966-67, recalled: “It was awkward to fire from the shoulder and more awkward to fire from the hip” and that “the F1 wasn’t popular. Soldiers found it more difficult to point and bring on target than the OMC [Owen Gun] and firing from the shoulder… was decidedly more difficult without the front hand grip.”
Despite the shortcomings identified by some troops the F1 remained in service alongside the L1A1 self-loading rifle into the early 1990s, when both were phased out of use as the 5.56x45mm F88 (Steyr AUG) was adopted.
If you enjoyed the video and this article please consider supporting our work here.
This is the first instalment of what will hopefully become a regular feature where we discuss some of the books we use when researching the guns we feature in our videos. We’ll give an overview of what the books cover, how they approach subjects and how good a resource they are.
With Vic’s recent special episode on the AR-10, I’ve been using Joseph Putnam Evans’ book ‘The ArmaLite AR-10: The World’s Best Battle Rifle‘ to help write the accompanying blog posts. While not without its flaws Evans’ book is without doubt the best published source on the AR-10 currently available.
For many years the published material on the AR-10 was confined to both contemporary gun magazine articles on the ‘new’ rifle and a handful of retrospective articles published later. Very little was written about their surprisingly extensive combat use or even the nuances of the design changes. Even the Black Rifle books, also published by Collector Grade, lacked the context of where the AR-15 evolved from. ArmaLite AR-10 is well worth reading, and a great base for further research.
If you missed the first part of our special episode on the AR-10 you can find it here!
Vic brings us the second part of his special episode looking at the story of the AR-10, with a very unique run down of various variants of Eugene Stoner’s weapon. Vic runs us through every production model made by Artillerie Inrichtingen as well as several special prototypes and transitional models.
After a recap look at an example of a Hollywood-made rifle Vic shows us how the AR-10 worked using an instructional cutaway model. Throughout the video Vic examines all of the major production guns, beginning with an early A.I. production gun that incorporates the same ‘beer can’ muzzle device as the original American-made rifles. Vic then takes us through a series of rifles that represent the evolution of the design.
Photograph from the Bundeswehr rifle trials of a German soldier firing an AR-10B in 1957, the German’s classified the AR-10 as the G4 during the trials (source)
Beginning with the Cuban model, with its pencil profile barrel and top mounted gas tube. This model was also trailed by both the Dutch Army and the German Bundeswehr. Later in the video Vic gives us a quick look at the various German trials rifles the FAL (G1), the SIG 510-1 (G2), the H&K/CETME (G3) and the AR-10 (G4).
Soldier firing an AR-10 during the Dutch Army trials (source)
Vic follows the Cuban model with a look at the Sudanese Model, with its bayonet lug sleeve, and the Guatemalan variant which swaps out the bayonet lug for rifle grenade launching capability. The Sudanese military ordered 2,508 rifles from A.I.
In addition to these Vic also gives us a look at an extremely rare prototype carbine, a sporter model (the AR-102) and a prototype squad automatic weapon with a heavier profile barrel. Vic then takes us through the features of the final A.I.-made variant, the Portuguese or NATO model. The rifle was officially adopted by the Portuguese army’s Caçadores Páraquedistas (paratroops) and saw action in Angola, Portuguese Guinea and Mozambique.
Vic then takes a look at a series of rare variants and one-offs, including a rifle with green furniture made for Prince Bernhard, the Royal consort to Queen Juliana of the Netherlands, and a heavy barrelled magazine-fed squad automatic rifle with a rubber butt-pad and additional folding carrying handle.
To round out the story of Artillerie Inrichtingen’s involvement with the AR-10, Vic is lucky enough to take a close look at an M1 Garand adapted to feed from surplus AR-10 aluminium waffle magazines. This concept was developed to equip the NATRES, the Dutch Army Reserve, and was based somewhat on the Italian Beretta BM-59. Vic shows us both a very early prototype BM-59 and one of only two A.I. Garand adaptation prototypes.
In the next part of the series Vic will examine several examples of the belt-fed AR-10. If you missed the first part of the series, which featured the early history of the ArmaLite AR-10 and a very rare original promotional film featuring Eugene Stoner himself, you can find that here!
If you enjoyed the video and this article please consider supporting our work here.
Bibliography:
The Armalite AR-10: World’s Finest Battle Rifle, J. Putnam Evans (2016)
During our first research trip last spring I had the opportunity to examine an unusual ‘hybrid’ Sten submachine gun. The weapon combined a MkII Sten’s receiver with a MkIII’s magazine housing. Added to this was a proprietary folding stock and a new fire control group and pistol grip.
Very little is known about the hybrid Sten with Peter Laidler’s book The Sten Machine Carbine mentioning it and the later Osprey book by Leroy Thompson sharing a photograph and brief caption which calls it an “experimental version of the Mk III.” It is also unclear exactly when it was built.
Below are some photographs I took of the Sten, lets look at some of the interesting features of the Hybrid Sten.
left side of the Sten with the stock folded flush under the receiver (Matthew Moss)
No production Variant of the Sten was fitted with an under-folding stock, the Australian Austen, however, directly copied the MP38/40. The entire weapon is covered by a layer of textured, crackle paint finish, this was commonly used on commercial Sterling Mk4 submachine guns. The weapon has a short, 3.5 inch, perforated fore-end welded onto the front of the tube receiver that appears to be from a Lanchester.
Rear right of the weapon close up of its pistol grip, stock and trigger housing (Matthew Moss)
The under folding stock is rudimentary but effective, the butt plate swivels free but the lock up is quite secure. It uses the receiver main spring-loaded return-spring cap. The folding stock attaches to the pistol grip assembly (which can be seen detached below).
The proprietary rectangular trigger group housing brazed onto the tub receiver is unlike any other Sten and lacks a fire-selector.
Left side of the Sten with its pistol grip and stock assembly detached (Matthew Moss)
The pistol grip itself is made from paxoline, a form of early resin plastic. The shape shape of the pistol grip does not resemble any production or prototype Sten grip. A simple hand-stop, made from a bent piece of sheet metal, has also been added in front of the weapon’s ejection port to prevent the user’s hand moving back and fingers being caught if gripped by the forend.
Right side of the Sten with its stock unfolded (Matthew Moss)
While the origins of the hybrid Sten remain unclear I don’t believe it was an officially made prototype. While impressive it is relatively crudely assembled and does not match the Sten prototypes made by Enfield, such as the VI. Intriguingly, the magazine housing of the weapon has been stamped ‘PILOT’ below the usual ‘STEN MkIII’ stamp. I suspect that the weapon may have been put together by a unit armourer, perhaps authorised by a superior officer to suggest improvements or as an unofficial project gun.
UPDATE: Their is some evidence emerging that this Hybrid Sten may be related to the T42 Sten prototype, part of the Sten MkIV development program. Where this hybrid fits into the story is not yet clear but the similarities are striking, when we have more information we will revisit this weapon.
If you enjoyed the video and this article please consider supporting our work here.
In the first part of Vic’s special episode on the AR-10 we brought you a remastered version of the fascinating 1958 ArmaLite/Fairchild promotional sales film made for ArmaLite salesmen, like Sam Cummings and Jacques Michault, to show to prospective buyers of the new rifle. Back in the 1990s Vic was lucky enough to scan Michault’s copy the film and has recently remastered with better image quality.
Below you can find the video, time stamped to begin at the promotional film (although I highly recommend you watch the entire video for Vic’s introduction to the early history of the AR-10).
Lets break the video down, with the help of some screen captures. The film opens with a rifleman emerging from the sea, firing as he advances. The film then explains Fairchild’s background and beings to explain the features of the rifle.

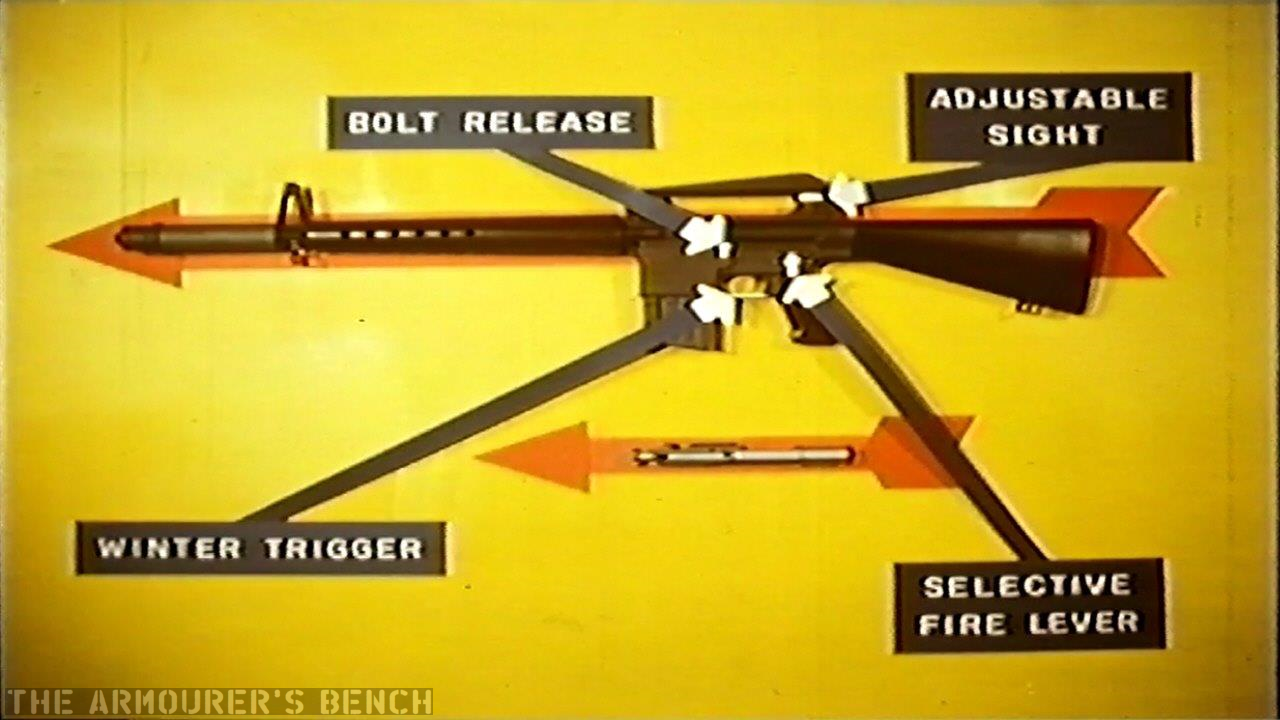

Arrows point out some of the AR-10s controls

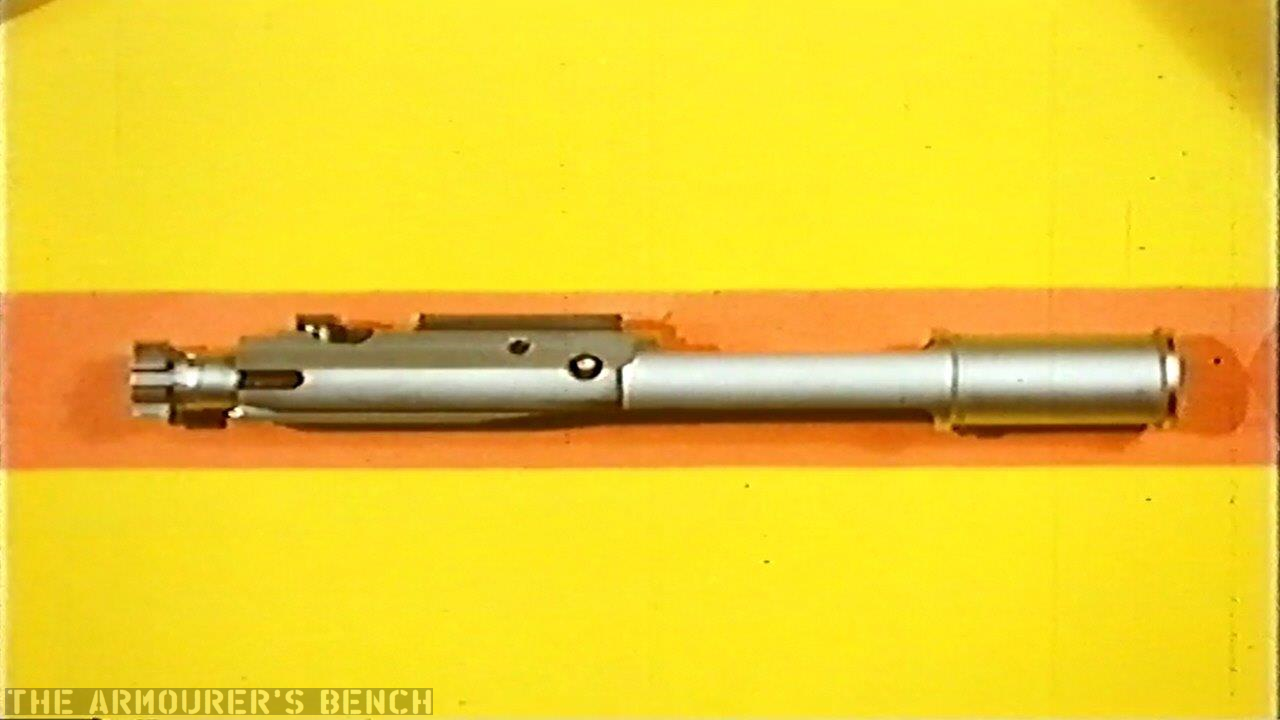

A close up of the rifle’s bolt and carrier

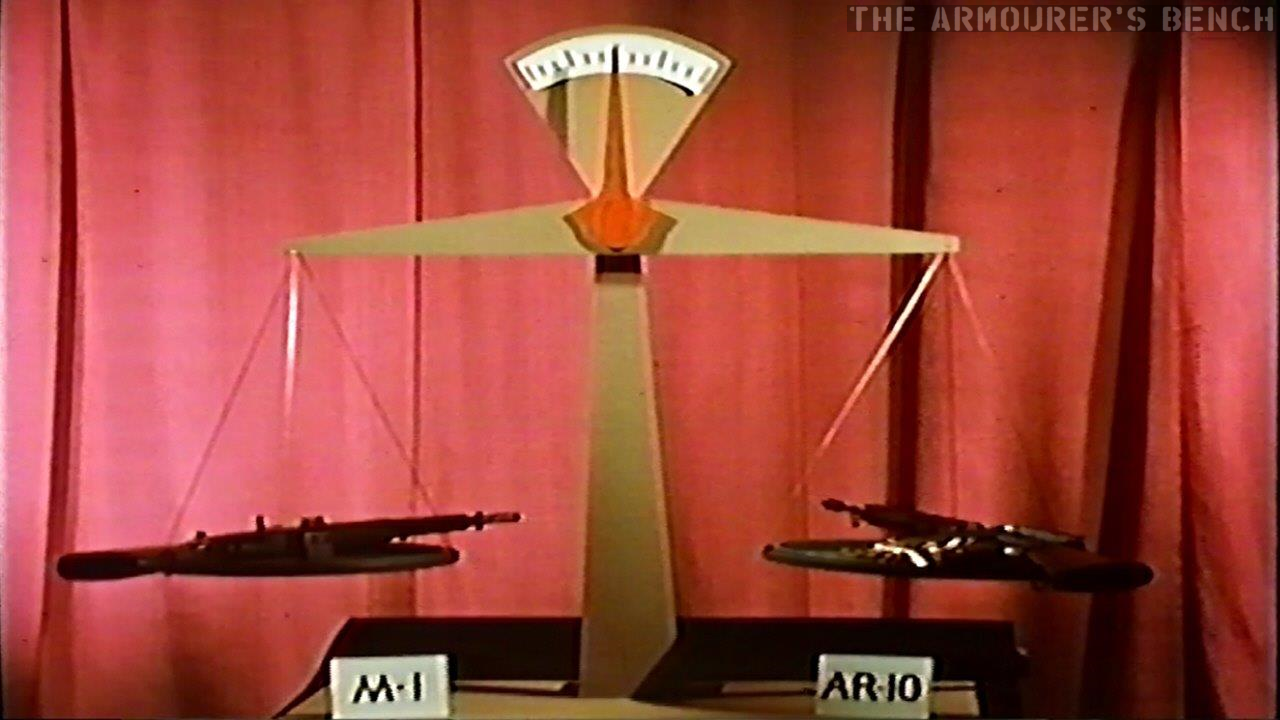

A set of scales is used to demonstrate how the AR-10 (plus 50 rounds) is equal to an M1 Garand
The film then shows several shots of the rifle’s lower receiver being milled.

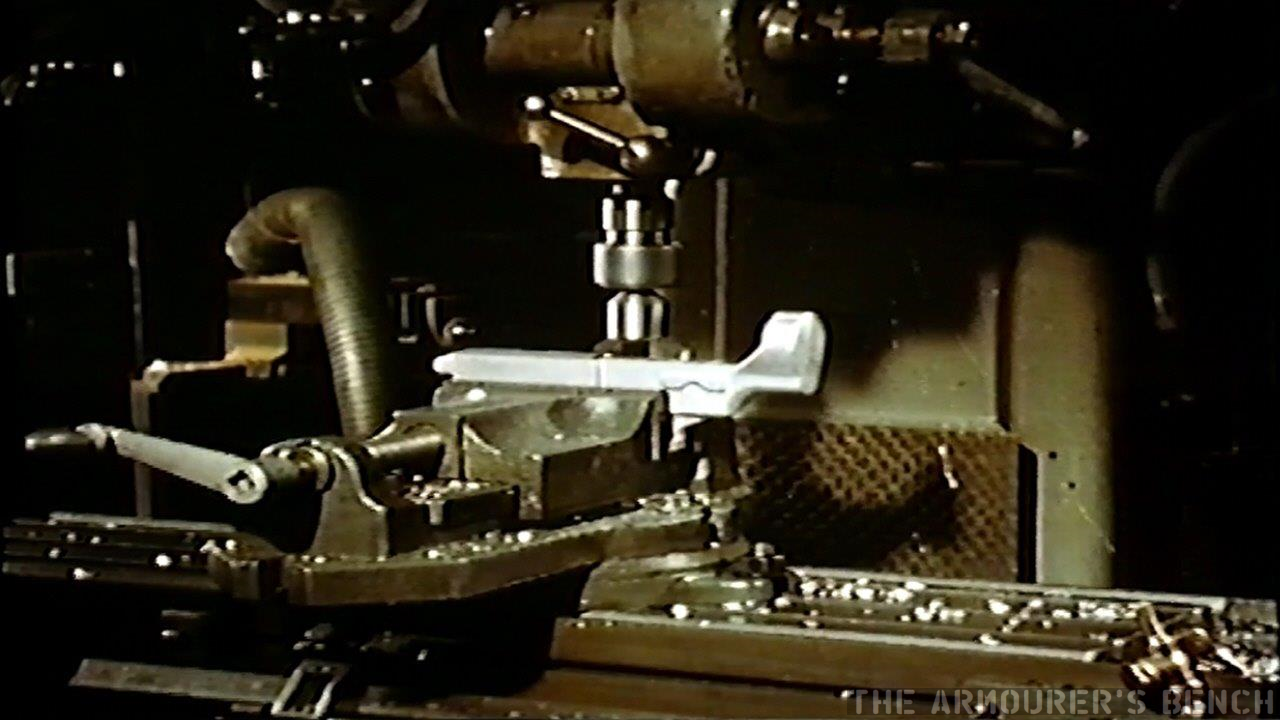

The milling of the rifle’s aluminium-alloy forged receiver

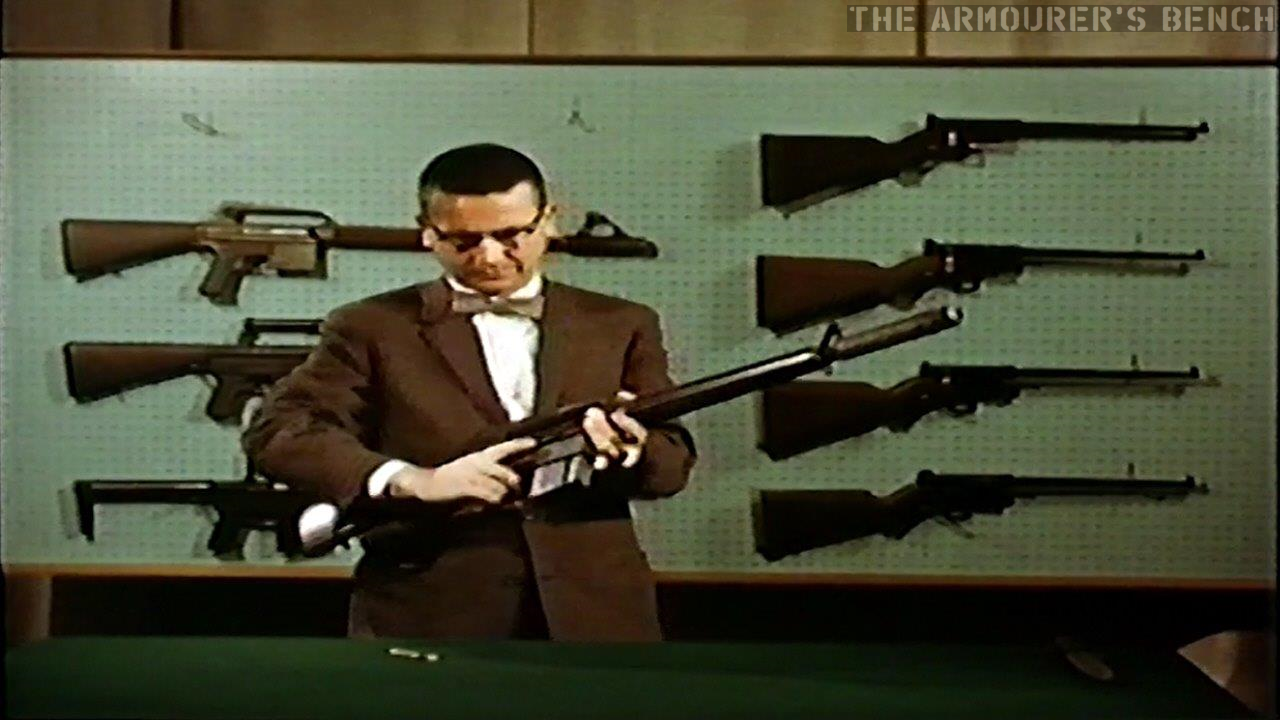

None other than the rifle’s designer himself, Eugene Stoner, then takes an AR-10 from a wall display and proceeds to completely disassemble it.
Stoner standing in front of a display board holding three AR-10 prototypes and AR-5s and an AR-7 survival rifle
Stoner completely strips the rifle, its muzzle device and its magazine before Charles Dorchester, ArmaLite’s production manager, demonstrating the rifle’s operation and subjects it to sub-zero temperatures and once again firing the rifle.
Chuck Dorchester submerges he rifle in what appears to be liquid nitrogen
Dorchester again test fires the rifle
The film then shows the rifle being used in a variety of roles:

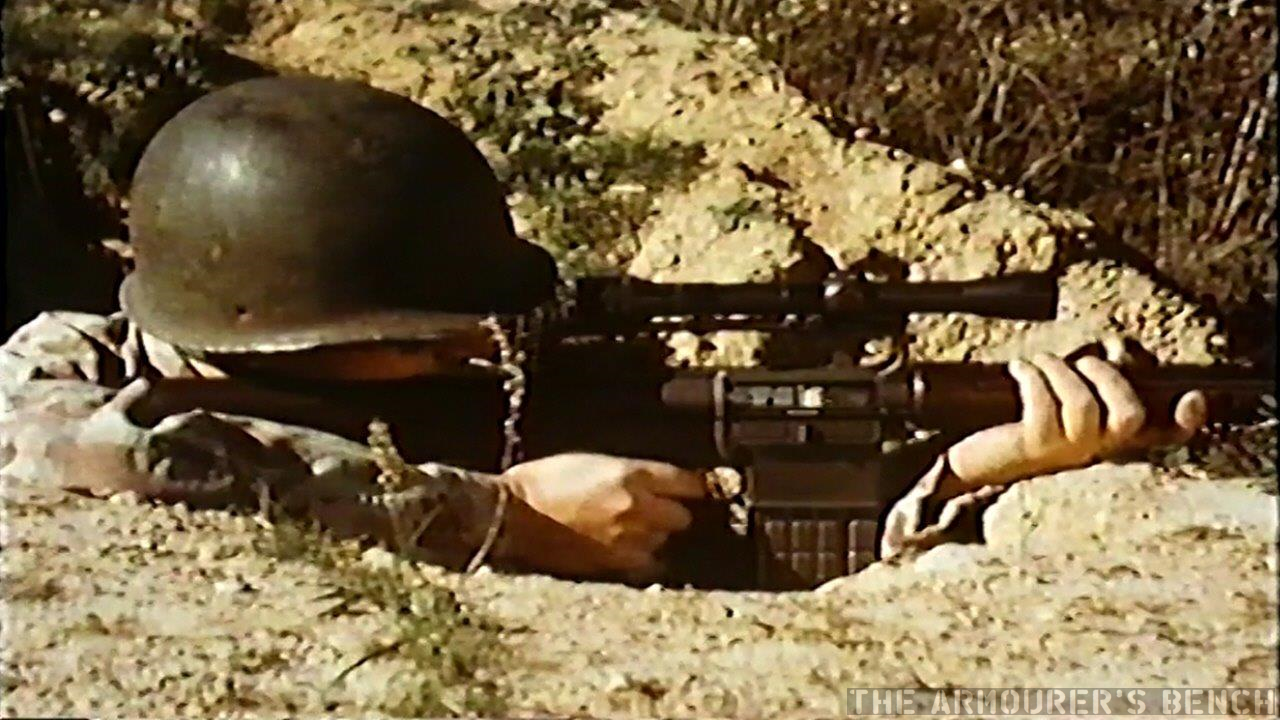

AR-10 being fired with a scope mounted to the carrying handle

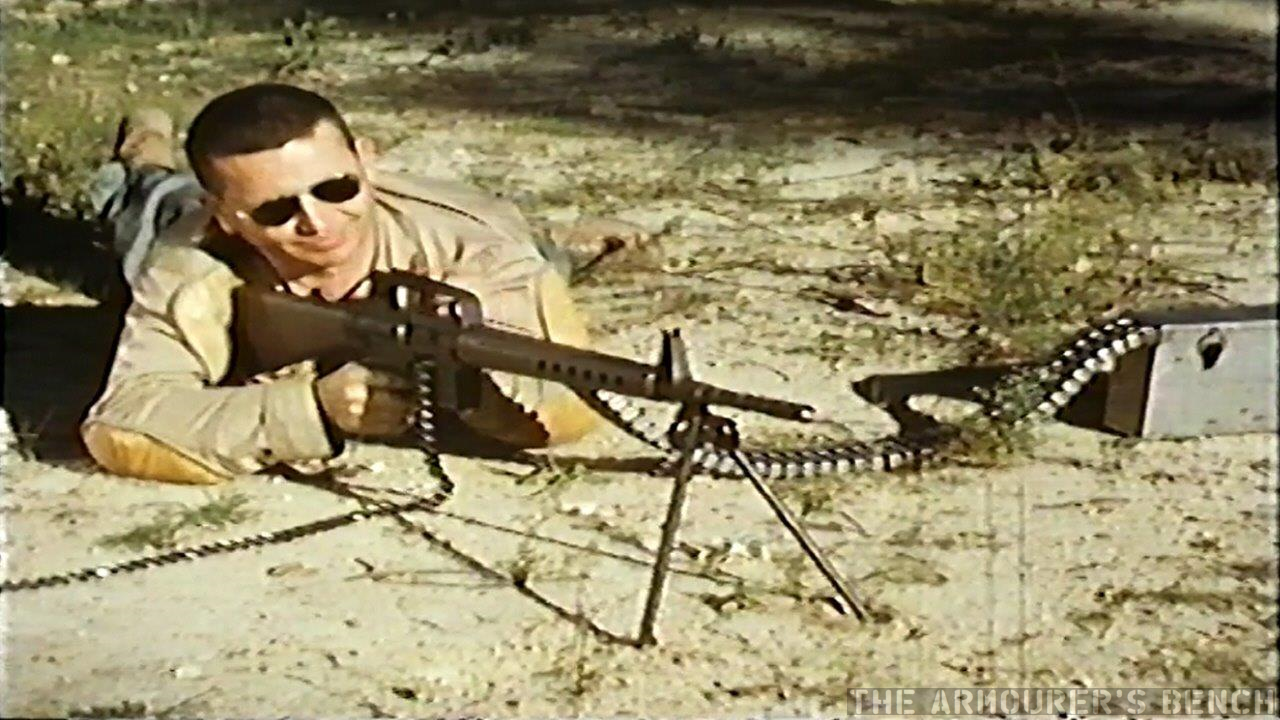

The AR-10 being fired from a bi-pod in the light support role, feeding from 20-round magazines, the AR-10 LMG could easily be switched between magazine and belt feeding by removing the belt feed assembly
An ENERGA rifle grenade being fired from the AR-10, the US Army had adopted the ENERGA as the M28 rifle grenade in 1950.
Stoner then covers the rifle with sand before running five magazines through the rifle in quick succession to demonstrate reliability:
This slideshow requires JavaScript.

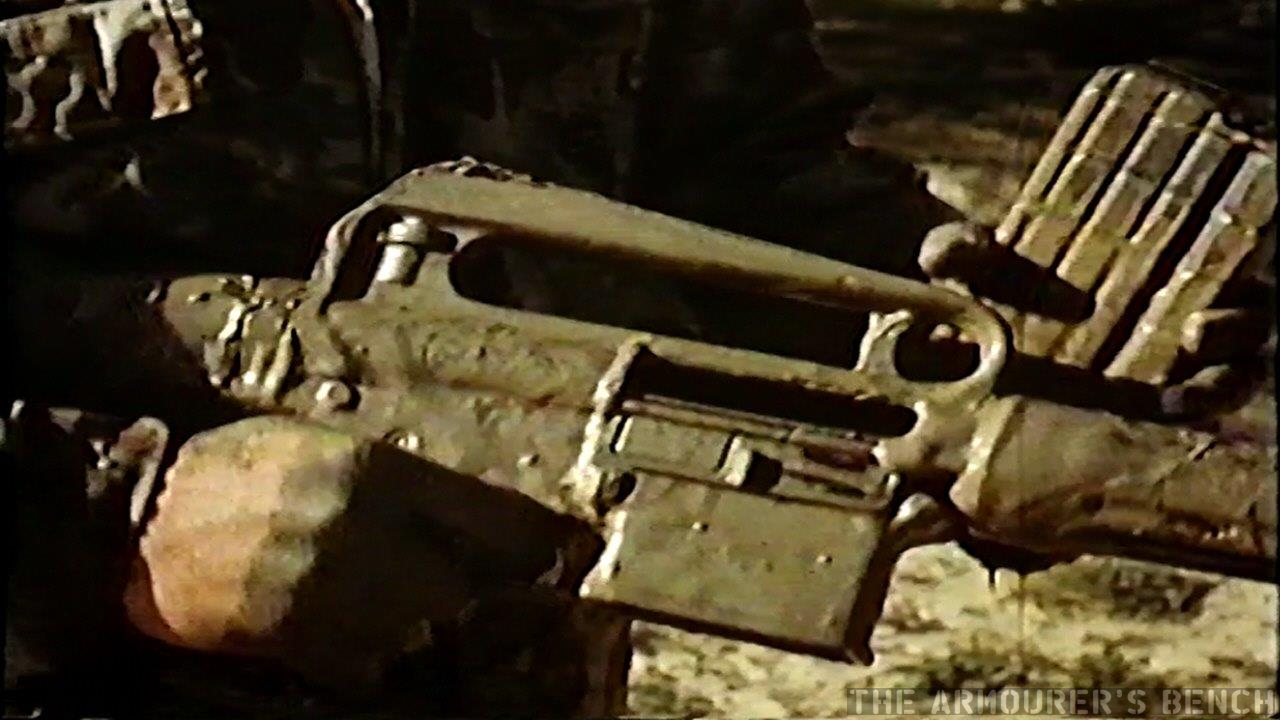

The rifle is then submerged in mud (with its dust cover closed) and demonstrated again.
AR-10 covered in mud
The film then shows how simple field stripping and cleaning is before Stoner demonstrates the belt-fed variant of the rifle:

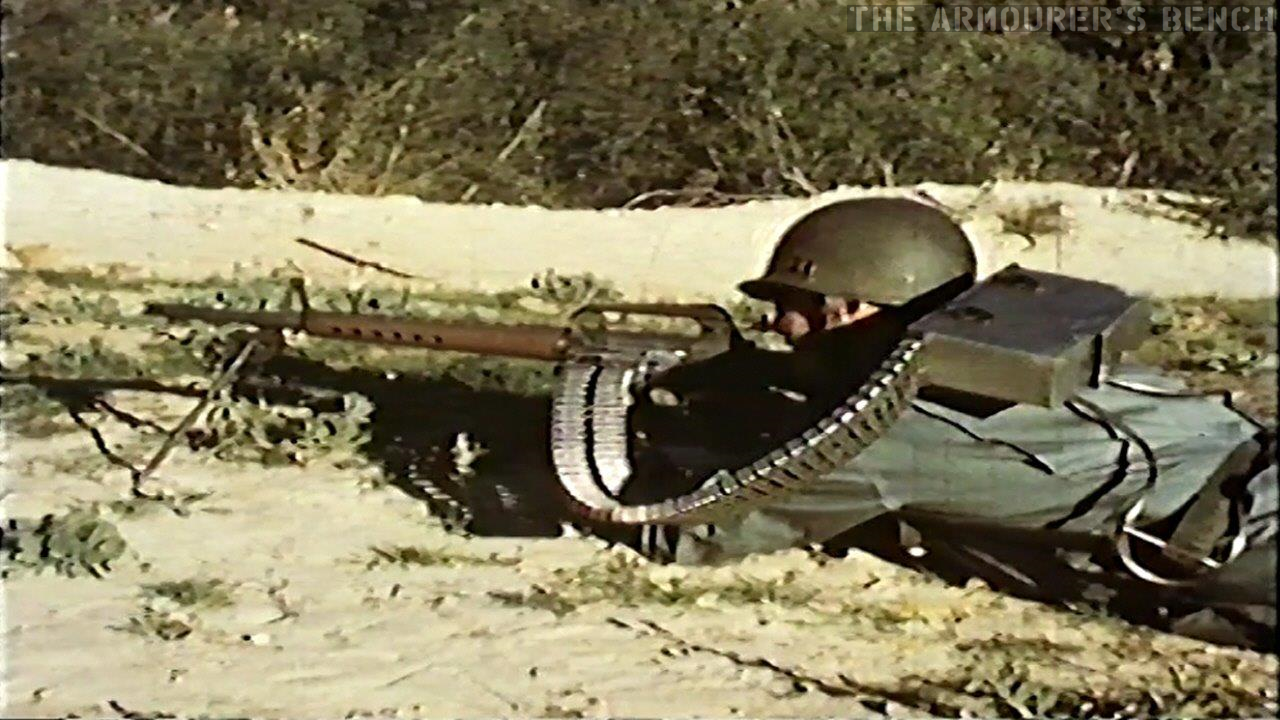

A rifleman demonstrates the AR-10 in its belt-fed configuration, changing position several times before switching to feeding from magazines. Note also the ‘backpack’ belt box and controlled chute/feedway
Stoner firing the belt-fed AR-10
Stoner with a happy grin on his face before opening up with the AR-10,
Note the bolt link port in the lower receiver
Don’t forget to check out the full episode and the accompanying blog here!
If you enjoyed the video and this article please consider supporting our work here.
In this first part of a TAB special episode examining the history of the ArmaLite AR-10 Vic discusses the early origins, history and development of the now legendary 7.62x51mm rifle. At the heart of this episode is a remastered version (certainly the best currently available online) of the c.1958 ArmaLite/Fairchild promotional film that features Eugene Stoner and shows many of the early ‘Hollywood’ Armalites in action! The first part of this special documentary concludes with Vic examining a Hollywood-made AR-10B (the last iteration of the US-made AR-10s).
Part two of the episode can be found here and includes an overview of almost every Artillerie Inrichtingen (A.I.)-made model of AR-10, including the Cuban, Sudanese and Portuguese variants.
Armalite & the AR-10’s Early History
Much has been written about the AR-10, Eugene Stoner and the genesis of the AR-15’s parent rifle. It’s a design which owes much to many: Stoner, George Sullivan, Melvin Johnson and later the engineers at Artillerie Inrichtingen.
Photographs taken during Springfield Armory’s evaluation of the AR-10B (source)
ArmaLite, formed by George Sullivan with the help of Richard Boutelle, President of the Fairchild Engine and Aircraft Corporation, began work on the first AR-10 prototypes in 1955. Designed by Eugene Stoner, using his patented direct gas impingement system. Stoner patented this system in 1956, with the patent being granted in September 1960 (US #2,951,424).
Stoner pictured with some of the Hollywood AR-10 prototypes for a 1958 article in Guns magazine (source)
The AR-10 had an aluminium-alloy forged receiver, an in-line stock, polymer furniture and chrome-lined steel parts. While conventional steel barrels were the norm an ill-fated attempt to use an aluminium/steel composite barrel during US Army evaluations proved disastrous when the steel inner parted from the aluminium outer and caused the barrel to burst. As a result of these weight saving efforts the rifle weighed just ~3.4kgs/7.5lbs unloaded. The Armalite AR-10 had a side mounted gas tube, a top mounted charging handle and fed from 20-round box magazines. One of the most interesting features was the large aluminium muzzle device, fitted to some ArmaLite-made Rifles, which reduced sound and flash.
In 1957, ArmaLite sold the AR-10 manufacturing rights to the Dutch small arms manufacturer Artillerie Inrichtingen, while US manufacture was licensed by Colt in February 1959. With minimal financial returns Fairchild sold their interests in ArmaLite in 1962.
A Springfield Armory file photograph of the AR-10B disassembled, taken during evaluations in 1956 (source)
Featured in the first part of Vic’s special episode on the AR-10 is an original Armalite/Fairchild promotional film, originally filmed in 16mm, that dates from around 1958. While a version of this film has been shared online for a number of years it is grainy, washed out and of relatively low audio quality. Vic reproduced the very rare promotional sales film in the 1990s onto VHS (a process he explains in the video). He has managed to take an original VHS copy and digitally remaster it to regain some of the original’s clarity and detail.
A still from Vic’s remastered 1958 promo film showing Stoner firing the belt-fed variant of the AR-10 (source)
The promotional film was originally used by salesmen to showcase the AR-10 to potential clients and features Hollywood-produced guns. Both Stoner and Charles Dorchester (ArmaLite’s production manager) are seen in the film demonstrating the AR-10. The rifle’s action, function and controls are explained and various variants, including rifle and light machine gun, are demonstrated. The demonstration segment included a sub-zero test, covering in sand and much and Stoner himself dumping 5 magazine’s through the rifle in quick succession. The promotional film concluded with demonstrations of firing rifle grenades and a belt-fed AR-10.
Vic concludes the first part of the AR-10 overview episode with an examination of an AR-10B rifle held by the Netherlands’ Nationaal Militair Museum. In the second part of the episode Vic will look at nearly a dozen AR-10 variants made by Artillerie Inrichtingen (A.I.) between 1957 and 1961.
