In this video/article we’re going to take a look at a short internal British Ministry of Defence film about the SBS called ‘Oil Safe’. Produced in 1980 by the SSVC, the Services Sound & Vision Corporation, the 11 minute film provides an introduction to the Special Boat Service’s capabilities and procedures for retaking off-shore oil and gas rigs seized in a potential terrorist operation.
‘Oil Safe’ is not to be confused with another oil rig hijack film made the same year – ‘North Sea Hijack’ with Roger Moore.
It gives some insight into how the SBS would go about recapturing a rig seized by terrorists, showing in some detail the procedures used in operations associated with offshore gas and oil installations. The film takes us step by step through the operation from the moment the SBS are notified to the moment they exfiltrate after the operation to retake the rig is successful.
It’s definitely worth watching the whole thing, its available up on the. In this video we’ll take a look at some of the weapons featured in the film.
The first weapons we see are those of the SBS assault team as they are preparing their weapons and kit for the journey out to the oil rig. On the table we see no less than eight MAC-10s. While the MAC-10 would later be surpassed by the HK MP5 it was in service with UK special forces throughout the 1970s. Here it appears to be the assault team’s primary weapon.
The MAC-10, designed by Gordon Ingram, could be paired with a sound suppressor – but these do not appear in the film. The MAC-10’s small size and considerable firepower seem well suited to the team’s task.
Also on the table are numerous L9A1 Browning Hi-Powers, a Remington 870 shotgun, a pair of AR-15s, an L1A1 self-loading rifle and an anti-riot Grenade Discharger – for CS gas. The Colt AR-15 was favoured for its firepower and light weight. The SAS and the Royal Marines’ Mountain & Artic Warfare Cadre favoured the AR-15 for the same reasons. Colt Model 602, 603 and 604s were the most prevalent models. In the film the rifle is seen with both 20 and 30 round magazines.
During the operation to retake the rig we see the team armed with the MAC-10s, AR-15s and Hi-Powers. The terrorist seen guarding the rig’s landing pad is shot by a member of the SBS armed with the Remington 870, another terrorist is shot by two SBS members with Hi-Powers who raid the rig’s cafeteria.
The terrorists are portrayed as being armed with a magazine-less M1 Carbine and a Luger P08 pistol. After the terrorists are neutralised the film explains that their weapons are taken by UK Police as part of an investigation into the seizure of the rig. Royal Marine Commandos who arrive by helicopter following the SBS’ initial assault are armed with L1A1 SLRs and L2A3 Sterling submachine guns.
Check out our earlier article/video analysing a 1984 British Army video on the SAS here.
I highly recommend watching the full film over on the Imperial War Museum’s online archive.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
Bibliography
SBS Procedure: Part 3 – Oil Safe, SSVC/UK MoD via IWM, (source)
From the late 1960s into the 1990s, Northern Ireland suffered a long period of sectarian violence, commonly known as The Troubles. Without going into too much detail about the conflict, other sources do a much better job than I can today, the violence saw Irish Republican paramilitary groups, Ulster Loyalist paramilitary groups and British security forces involved in a protracted low-level conflict with a Republican insurgency fighting not just British forces but Loyalist paramilitaries like the Ulster Volunteer Force (UVF), the Ulster Protestant Volunteers (UPV) and the Ulster Defence Association (UDA). This article/video has no intention to comment on the conflict itself, merely examine a weapon produced during the period.
This copy or clone of a Sterling Mk4 / L2A3 submachine gun is believed to have been assembled by Loyalist paramilitaries although which group and its origins are unclear. Loyalist groups during the 60s and 70s tended to be less well armed and relied more heavily on improvised small arms and weapons stolen from military and police armouries and personnel than Republican groups. When tensions rose in the late 1960s, the Loyalists were largely equipped with obsolete and outdated weapons.
Right side view of the Sterling clone (Matthew Moss)
Sammy Duddy, a member of an early Loyalist group, the Westland Defence Association, and later a press officer for the Ulster Defence Association, recalled the dire state of their arsenal at that time:
“[…] we had no guns. The IRA had automatics [machine-guns], high-velocity sniper rifles, powerful pistols, the lot, but we had fuck all. There were virtually no guns on the Loyalist side. The only weapons we had were baseball bats and I just thought to myself, ‘what the fuck are we going to do when they [the IRA] come in with their machine-guns? Throw bats at them?’”
The Ulster Volunteer Force (or UVF) took to stealing what weapons and spare parts they could from the British military and Royal Ulster Constabulary. Weapons assembled from damaged captured Sterlings and Sterling spare parts kits became common. In this case, this weapon has a number of cannibalised original Sterling parts which have been paired with a craft-made receiver tube. From examination we can see that the weapon’s end cap has a Sterling part number stamp ‘CR110’ inside. Similarly the weapon has a factory-made plastic grip. Other factory made parts include the helically grooved bolt, the two recoil springs and the charging handle. There is also seemingly a factory-made trigger group and magazine release button. The magazine is well sized and utilises various parts from a Sterling’s magazine release including the button, an set screw and catch piece.
The weapon uses a Sterling’s factory-made pistol grip and trigger mechanism – a remarkably sophisticated craft-made weapon (Matthew Moss)
The trigger assembly housing is welded and ground smooth where it joins with the tube receiver. On factory-made guns there is a visible seam. The poorer quality tube steel of the receiver also appears to have drooped or bent a little around the middle of the weapon. The holes in the barrel shroud are of uniform size but they are roughly drilled and not equally spaced. At the front of the receiver we can see they have retained the barrel with a pair of large bolts, suggesting that the barrel may have been factory made too. There is now end cap catch at the rear nor provision for a folding stock either. While whoever made the receiver tube went to the trouble of added hand stops found on the actual Sterling they are clearly only lightly welded on.
Close up of the weapon’s magazine housing, with salvaged Sterling magazine release button (Matthew Moss)
Another difference is the absence of a bayonet lug on the left side of the barrel shroud, and a much cruder fixed sight sat within a U-shaped piece of metal welded to the tube receiver – to act as a front sight protector. The factory-made Sterling’s front sight is adjustable and the sight protectors are folded forward and aligned across the tube receiver. The rear sight and its protectors appears to have sheared off at some point. The only marking on the weapon, ‘29992’, is crudely electro pencilled on the top of the magazine housing, where you’d normally see markings saying ‘Sterling Mk4’ or ‘L2A3’. When that crude serial number was added is unclear. The black paint on the receiver is wearing thin and we can clearly see some file marks in places.
Hundreds of craft-made submachine guns were built to feed from Sterling and Sten magazines and there are numerous surviving examples of guns made from box tubing – often parts were clandestinely made in Northern Ireland’s factories and at shipyards like Harland & Wolf in Belfast – giving rise to the name ‘shipyard special’. Other nicknames included ‘rattlers’ and table leg guns.
Left side view of the Sterling clone (Matthew Moss)
The origins and story behind this particular weapon remain unknown, it is today part of a UK Ministry of Defence collection and said to have been found in Northern Ireland during the Troubles. Regardless it’s a very interesting piece of clandestine engineering which shows considerable skill in its assembly. Which is unsurprising as there are numerous accounts of skilled machinists working on illegal firearms parts during the period.
If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters. You can also support us via one-time donations here.Thank you for your support!
Bibliography:
The Northern Irish troubles | This Week | 1972, Thames TV, (source)
Terminal Effects: The Guns of the Loyalist Paramilitaries, Balaclava Street, (source)
Improvised Weapons of the Irish Underground (Ulster), D. Shea, Small Arms Review, (source)
Beyond State Control: Improvised and Craft-produced Small Arms and Light Weapons, G. Hays and N.R. Jenzen-Jones, Small Arms Survey, (source)
In May 1946, George Patchett patented a new curved magazine which would become one of the Sterling’s most recognisable features. It addressed some of the serious shortcomings of the STEN’s magazine.
George Patchett’s machine carbine, Which later that came to be known as the Sterling, had been initially designed to use the standard STEN magazine. This makes complete sense as not only was the STEN’s magazine readily available but it stood to reason that the British Army would prefer to retain the large number of magazines it already had in stores.
A Sterling L2A3 with a disassembled Sterling commercial-pattern magazine (Matthew Moss)
The STEN’s magazine is, however, the gun’s weakest link. Its a double-stack, single feed 32-round magazine was difficult to load and could feed unreliably when not looked after. The Patchett prototype performed well during initial testing in 1943, but later sand, mud and arctic testing of the Patchett against various other submachine guns highlighted the limitations of the STEN magazine – regardless of the weapon using it.
Patchett’s Original Toolroom prototype (Matthew Moss)
At some point in 1945, Patchett developed a series of new magazines, a 20-round ‘Patrol’ magazine, a 40-round ‘Standard’ magazine and a 60-round ‘Assault’ magazine. By late 1946, these had been superseded by a 35-round magazine designed to fit into the basic pouch of the British Army’s 1944 Pattern web equipment.
Patchett addressed the STEN magazine’s shortcomings by designing his magazine with a curve which allowed the slightly tapered 9×19mm rounds to feed more reliably. He also replaced the traditional magazine follower with a pair of rollers which minimised friction and allowed dust, grit and dirt to be rolled out of the way improving reliability. Patchett’s magazine was designed so it could be economically stamped from sheet metal and folded and spot welded into shape. It was also simple to disassemble for cleaning and requires no tools for disassembly.
George Patchett’s US patent for his roller magazine follower (US Patent Office)
By 1951 the magazine had been largely perfected but a trials report suggested that the magazine’s feed lips needed to be reinforced. Despite this the Sterling was said to be “better than all other weapons tested.” Following further development and testing the L2A1 Sterling submachine gun was eventually adopted in the summer of 1954. We will cover the development, adoption and service of the Sterling at a later date.
In 1952, Patchett added a pair of strengthening ribs to the inside of the magazine which also further reduced friction on the rollers. He also replaced the oval follower spring with a more efficient circular one with the ribs acting to hold it in place. The final production magazines held 34 rounds and were substantially easier to load than the earlier STEN’s.
Patchett’s US patent for his circular magazine spring held in position by the stamped magazine body (US Patent Office)
The L2A1/MkII, introduced in 1954, was the first Patchett to incorporate an angled magazine housing which improved feeding reliability from the Patchett’s patented curved, double stack, double feed magazine. The Sterling’s magazine housing was angled forward slightly at 82-degrees.
The magazines used by the British military differed from Patchett’s design. The British government, perhaps unwilling to purchase the rights to manufacture Patchett’s design, developed the ‘Magazine, L1A2’. Nearly two million of these were built at Mettoy, Rolls Razor, ROF Fazakerley and the Woolwich Royal Laboratories. The L1A2 magazine was slightly simpler to manufacture but retained Patchett’s roller follower while the magazine’s body was made from two, rather than four, pieces of stamped steel and electrically welded together. The government-designed magazine is 5cm (2 inches) longer than Sterling’s magazines.
disassembled Sterling commercial-pattern magazine (Matthew Moss)Rear edge of the magazine, with Sterling factory markings (Matthew Moss)
The example magazine seen above and in the accompanying video is Sterling-made and is marked with the company name and patent numbers. We can see the folded sheet metal construction and the overlaps at the rear of the magazine body.
Patchett’s patented-roller follower and circular amazing spring (Matthew Moss)
When Canada adopted the C1, a modified version of the Sterling, they dispensed with Patchett’s roller system and designed their own magazine which held 30, rather than 34 rounds, but could be used in all Sterling-pattern guns.
On the front of the magazine is an over-insertion stop built into the edge of the magazine body, at the rear is another magazine stop with a flat spring which limits rattle and helps properly align the magazine in the breech for optimal feeding.
Before its adoption by the British Army in 1954 the Patchett Machine Carbine, later better known as the Sterling submachine gun, was extensively tested all over the world. The Patchett went through nearly a decade of testing, evaluation and refinement. It was tested by British troops around the world, from West Germany to Africa, from the middle east to Malaya.
Today, we’re going to examine a unique Patchett/Sterling prototype assembled in Malaya. The gun we’re examining is officially a MkII Patchett Machine Carbine, but as the guns are better known as the Sterling we will refer to it as such from here on out. This prototype has been specially adapted with a shotgun style rib sight to help aiming in jungle conditions.
Right side profile of the jungle rib sight Patchett prototype (Matthew Moss)
It was in Malaya that the specially adapted but short-lived prototype improvement emerged. As early as December 1952, British troops were testing the gun during operations against communist insurgents in Malaya. The harsh jungle conditions were a challenge for any weapon but an early report testing a single prototype noted that the weapon performed well but one of the issues identified was that the rear aperture sight was found to be “smaller than was desirable” and the report suggested that the aperture be widened to 0.098 inches 2.5mm – the same as the Owen gun. The report also noted that the front sight “did not stand out well in relation to the front sight protectors”.
It seems that when a batch of 75 trials guns arrived in 1953, a number of them were specially adapted in theatre. It was hoped that the shotgun-style rib sight fitted along the length of the receiver would aid snap shooting in the jungle. It was intended to enable users to engage fleeting targets quicker and improve ‘first shot hit’ probability in thick jungle and heavy rainstorms.
During operations in Malaya and Borneo, many scouts and point men carried shotguns such as the semi-automatic Browning Auto-5. Shotguns were favoured during jungle operations because of the ease with which they could be quickly and instinctively aimed and their exceptional close-range firepower.
The modification saw the complete removal of the standard front and rear sights and the razing on of a rib sight running along the length of the top of the gun from the muzzle to the rear sight. It appears an armourer cut down and removed the front and rear sight assemblies and used them as mounting points. The first few inches of the rib are stippled to minimise glare and a brass front sight bead has been added to help sight acquisition.
Left side profile of the jungle rib sight Patchett prototype (Matthew Moss)
The simpler sight rib also helped with another issue that was identified during early jungle testing, it removed the problem of the sights getting clogged with mud. It is unknown just how many were adapted but at least three are known to survive. The jungle-specific modifications were short-lived and not formerly adopted because the rib sight offered poor longer range accuracy.
Here are some more detail photographs of the rib sight prototype:
With the adoption of the Patchett as the L2A1, in 1954, a list of modifications based on trials recommendations was drawn up in June 1953, one of the suggestions was the enlargement of the rear sight aperture to 0.1, (2.5mm) 0.15 (3.8mm) or 0.2 inches (5mm). In August 1953, the infantry board decided that the 100 yard aperture would be 0.15 (3.8mm) in diameter while the 200 yard would be 0.1, (2.5mm). The spacing of the rear sight protectors was also subsequently widened to 0.55 inches (14mm). With these changes made the Sterling saw service in the jungles of Malaya and Borneo for over a decade during the Malayan Emergency and Indonesian Confrontation.
If you enjoyed the video and this article please consider supporting our work here.
Bibliography
Primary Sources:
‘Operational Research Section, Singapore, Technical Note No.5 – Technical Notes on Initial Trials of the Patchett Carbine in Malaya’, Maj. R.St.G. Maxwell, 1th December, 1952, Royal Armouries Library
‘Minutes of a Meeting held at the war office on Friday 7th August, 1953, to decide whether the Patchett sub-machine gun be introduced into the Service as a replacement for the Sten sub-mahcine gun’, Royal Armouries Library
I have written a book for Osprey’s Weapon series looking at the development, use and significance of the Sterling, it’s available now, you can find out more about it here.
In this episode we bring you our first live fire and slow motion footage! Matt had the opportunity to fire a British L2A3 Sterling submachine gun and Vic captured some great video. The Sterling was adopted by the British military in 1954 and standardised as the L2A3 in 1956.
Designed by George Patchett, at the Sterling Armaments Company, development began towards the end of the Second World War. After a decade of development and testing the British Army adopted the Sterling. It remained in service into the 1990s and Sterling produced and sold the gun overseas until the company closed in the late 1980s. Licensed versions of the Sterling were made in Canada and production continues today in India.
While the Sterling Armaments Company, the original developers and manufacturer of the gun, produced L2A3s for the government and the commercial market most of the British Army’s Sterlings were made by the government owned Royal Ordnance Factory in Fazakerly near Liverpool.
The gun featured in the video is a Fazakerly-made British Army L2A3, the magazine is also of the slightly simplified government pattern.
Frame from the slow motion footage showing a spent 9x19mm case being ejected from the L2A3 (TAB)
In this episode we look at the firing cycle of the L2A3 and how the weapon works. The Sterling uses a standard blowback action and this footage shows it firing in semi-automatic. We can see the breech block travel forward, strip a round from the magazine and chamber it. The round is fired and the breech block then travels rearward again before repeating the cycle.
In future videos we will discuss in-depth the design, development and history of the Sterling.
We would like to thank Graham over at www.slomocamco.com for the loan of the brilliant slow motion camera which captured this great footage!
If you enjoyed the video and this article please consider supporting our work here.
The Australian military adopted the F1 submachine gun in 1962, with the first guns reaching troops in April 1963, it replaced the venerable Owen gun. Like the earlier Owen the F1 had a top-mounted magazine – a position that lent itself to prone firing and more comfortable carrying when slung. But it also shared some similarities with the British L2A3 Sterling.
Men of the 7th Battalion, The Royal Australian Regiment demonstrate the F1 to the Australian Army Minister, Malcolm Fraser, in Vietnam in 1967 (Australian War Memorial)
The F1 entered service alongside the Australian L1A1 (self-loading rifle/FN FAL), it shared the rifles butt plate and pistol grip – slightly minimising additional unique parts needed by the submachine gun. Australian Ordnance had begun searching for a replacement for the ageing Owen gun after the Korean War. The Owen had been made quickly and cheaply during the Second World War and while it was well liked by Australian troops it was felt it could be improved upon. Maintenance of the older Owen guns proved difficult as each weapon had been hand fitted to speed up production and some parts proved not to be interchangeable.

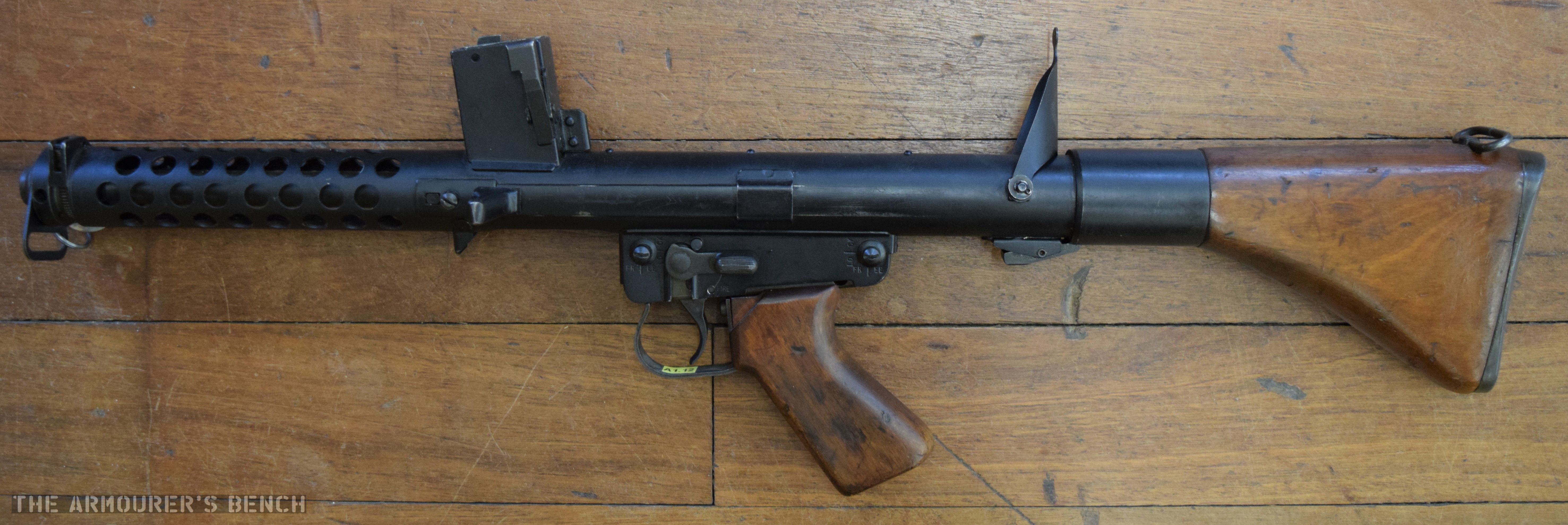

Left side view of an Australian F1 submachine gun, from the 1970 production run (Matthew Moss)
A number of designs were developed including one designated the ‘Kokoda’ (presumably after the Kokoda Trail campaign fought by Australian troops in 1942). This design was lighter than the Owen but suffered from overheating problems. A series of designs from the Australian Design Establishment, designated the ‘X’ series, were then developed. These weapons incorporated elements from both the Owen and the British Sterling. Including the Sterling’s perforated barrel jacket and magazine and the Owen’s bolt, magazine orientation and forward pistol grip – a feature many troops with experience with both the Owen and F1 lamented to loss of with the adoption of the F1. The first two ‘X’ series weapons developed into the X3 which in 1962, after successful trials, became the F1.
The F1 used a standard blowback action with a non-reciprocating charging handle. The charging/cocking handle was positioned on the left side of the receiver with its slot protected from the ingress of dirt by a dust cover. The F1 has a two-position fire selector with up for ‘safe’ and down for ‘fire’. The trigger mechanism allowed for firing single shots by pulling the trigger to the half-way point, this allowed the sear to trip into the semi-automatic position (see the diagram below).

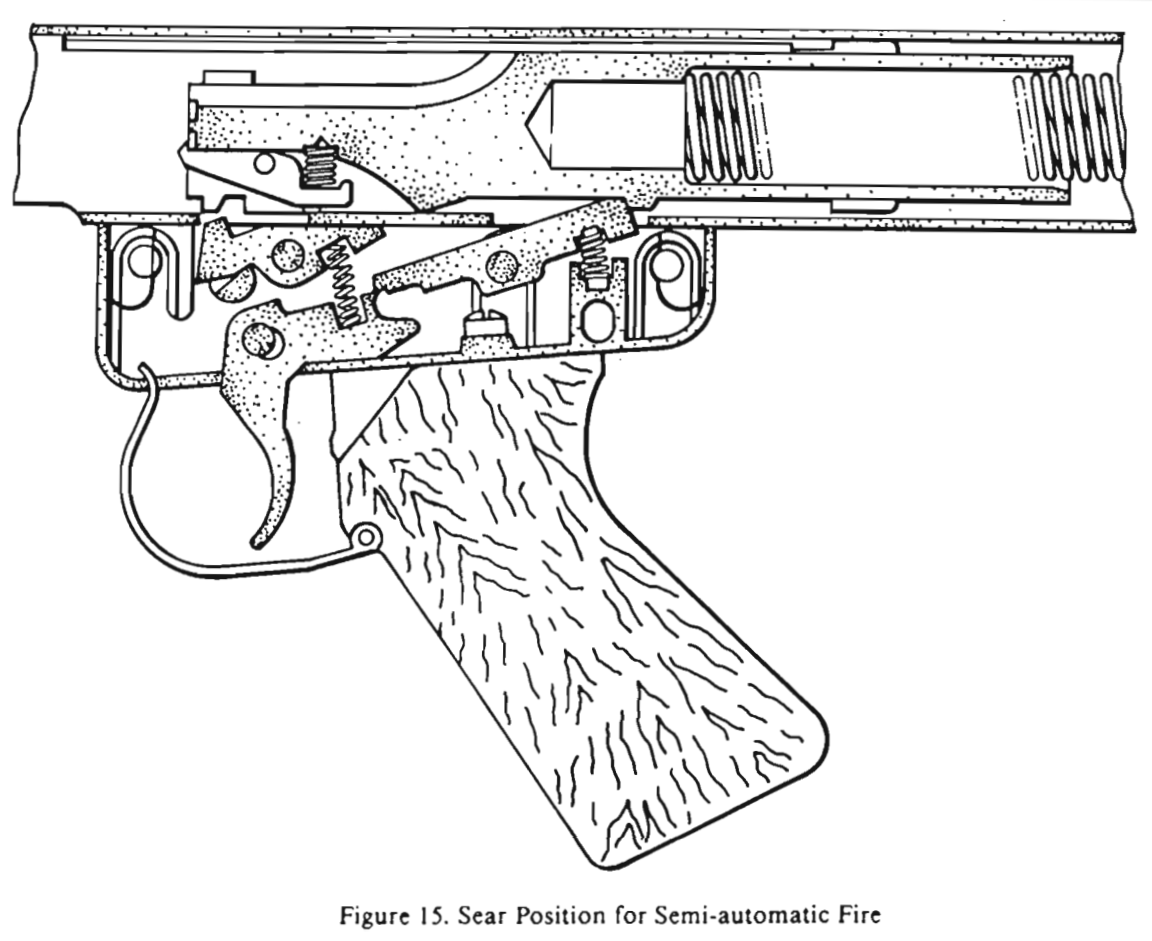

Diagram from Australian Army Parts List showing how the F1’s semi-automatic mode works (source)
Chambered in 9x19mm, the F1 fed from a 34-round curved magazine, although it could use straight, single-feed, Sten or Owen magazines. In the 1960s, in order to achieve commonality with Britain and other Commonwealth nations, that used the Sterling Submachine Gun, the Australian government contacted the Sterling Armaments Company to enquire how much a license to produce Sterling’s magazines would cost, only to be quoted an exorbitant fee. The Australian government were unwilling to pay for the license and produced them anyway. And as Sterling could not afford to take legal action were able to continue to do so – with the understanding they would not sell any commercially. The Australian government would later purchase a number of suppressed Mark 5 Sterling-Patchetts, also adopted by the British army as the L34A1.
The weapon’s ejection port was located on the bottom of the receiver ahead of the trigger guard. A small piece of metal was added in front of the ejection port, as a hand stop, to prevent the operator from inadvertently moving their hand over the port. The F1 had an in-line stock fitting into the rear of the tube receiver. The sights were offset to the right, the rear peep sight folded against the receiver when not in use while the front sight, rather than over the muzzle, projected from the right side of the magazine housing. The F1 could also mount the L1A1 self-loading rifle’s standard L1A2 sword bayonet.
Australian sailors aboard the destroyer HMAS Duchess wait to take part in a live firing exercise with their unloaded F1 submachine guns, c.1969. (Australian War Memorial)
The F1 weighed just over 7lbs (3.2kg), was 28 inches long and had a cyclic rate of approximately 600 rounds per minute. It had a solid butt stock, unlike the Sterling which had a folding stock. The F1 was produced solely by the Lithgow Small Arms Factory with most sources suggesting 25,000 were produced for the Australian military between 1963 and 1973. The Lithgow Small Arms Factory Museum were kind enough to look into the exact number made for us, and reported that there is some uncertainty surrounding the exact number produced with production report totals varying, giving a total of either 21,916 or 24,828.
The F1s saw extensive service in Vietnam and later with Australian peacekeeping troops through to the 1990s. It was issued to rear echelon troops, ACP and aircraft crews and to infantry sections. While the F1 was appreciated for its reliability, for those troops who had experience with the venerable Owen Gun, the F1 lacked a certain something. Colonel Warren Feakes noted that “every time I picked up an F1 I had the feeling that something was missing.” Another Australian veteran, Warrant Officer Kevin Konemann, who served in Vietnam in 1966-67, recalled: “It was awkward to fire from the shoulder and more awkward to fire from the hip” and that “the F1 wasn’t popular. Soldiers found it more difficult to point and bring on target than the OMC [Owen Gun] and firing from the shoulder… was decidedly more difficult without the front hand grip.”
Despite the shortcomings identified by some troops the F1 remained in service alongside the L1A1 self-loading rifle into the early 1990s, when both were phased out of use as the 5.56x45mm F88 (Steyr AUG) was adopted.
If you enjoyed the video and this article please consider supporting our work here.
