Surplus Zone: PIAT EOD Training Bomb

Whilst looking through the piles of surplus ‘kit’ in my friends warehouse in Germany I came across an interesting find, an Explosive Ordnance Disposal (EOD) training kit that has several examples of WWII and after ordnance that might be found on training grounds and former battlefields throughout Europe.

One of the elements from that training kit was a PIAT or Projector, Infantry, Anti-Tank, round. Many of these have been found across northwest Europe since the end of WWII and it was important for EOD teams to be able to identify them and understand how they work in order to safely dispose of them.

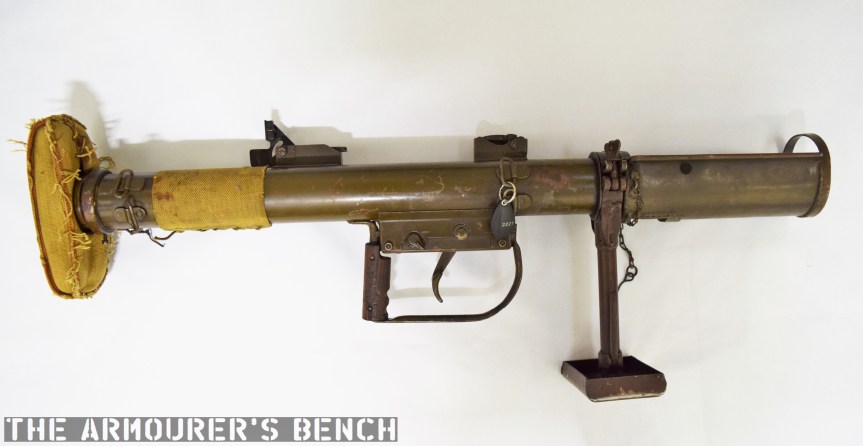

DSC_0042 (1).jpg
A British a PIAT or Projector, Infantry, Anti-Tank (Matthew Moss)

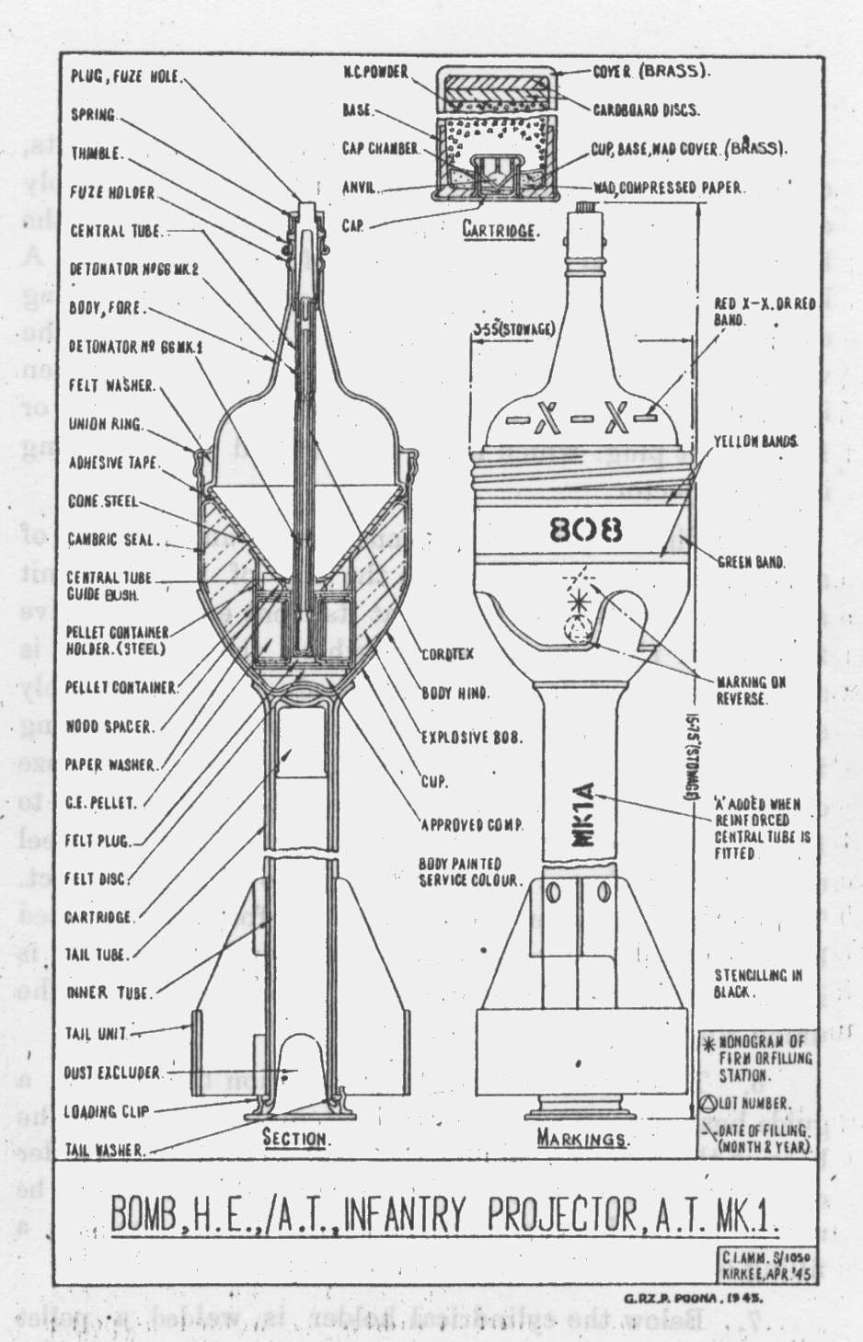

This example is likely an ‘instructional’ round that may have been produced from a previously live round and not subsequently marked as inert. In the video, which was filmed on location from memory, I mentioned that the charge was inside the front cone. Instead the charge was actually just behind the steel cone, which acted as a forcing cone, and has seen been replaced by some sawdust. We can see this in the diagram below, which shows an earlier Mk round but the configuration remains the same:

piat bomb.jpg

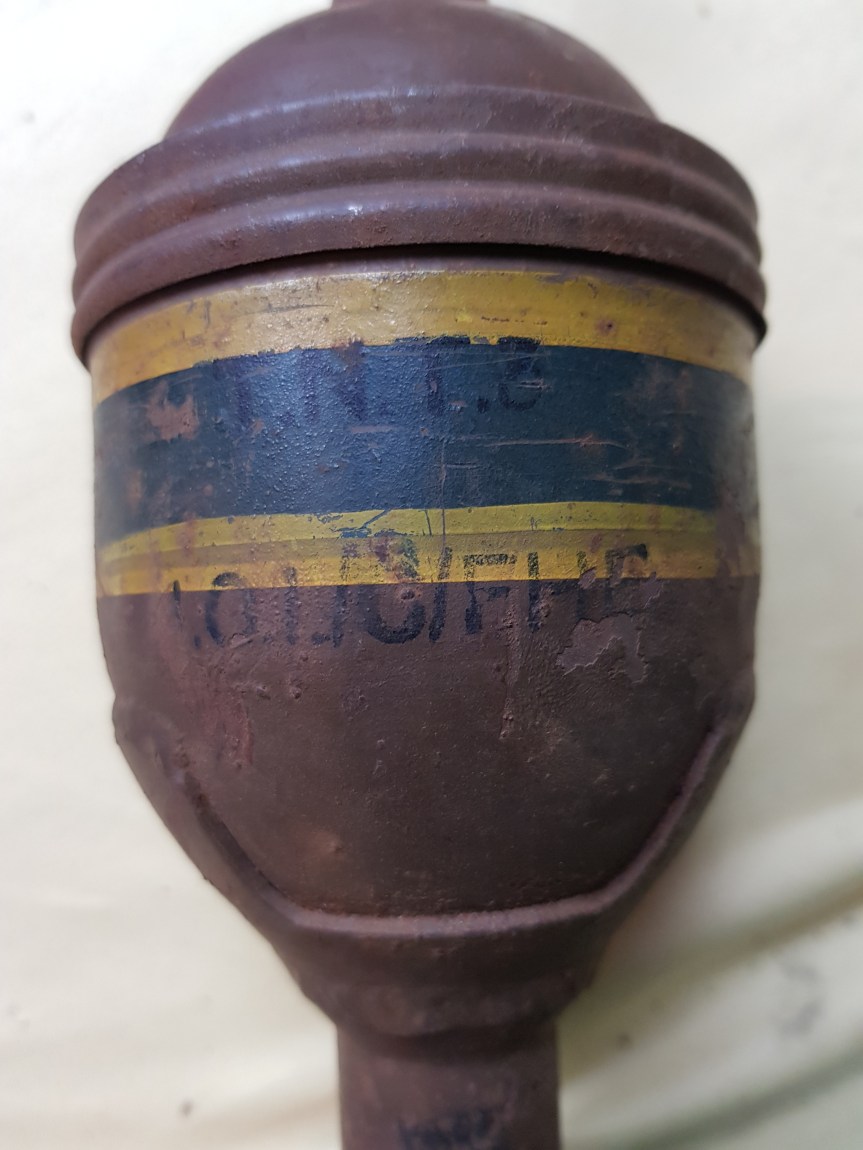

PIAT Bomb 1.jpg
A close up of the bomb’s markings (Vic Tuff)

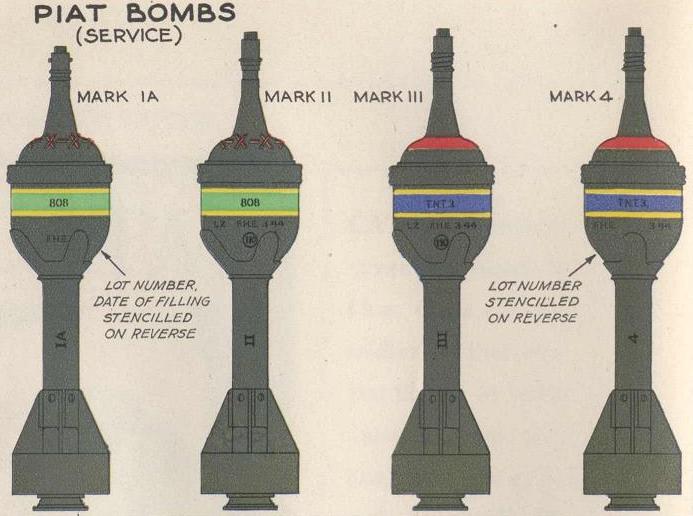

This time we examine an example of the Mk3 PIAT Bomb. When I filmed the video I wasn’t sure of the markings but this chart below more clearly explains them:

PIAT Bombs 1.jpg

There were 7 marks of PIAT bomb:

MkI yellow/green/yellow band 808 stamped on green band, red x’s around nose cone

Mk2 as above

Mk3 yellow/blue/yellow band TNT stamped on blue band, red circle around nose cone

Mk4 as above

Inert bomb black with yellow band INERT in white

Drill bomb black with DRILL in white x 2

Practice bomb – to fit the practice insert tray, painted white and it looks nothing at all like a PIAT bomb!

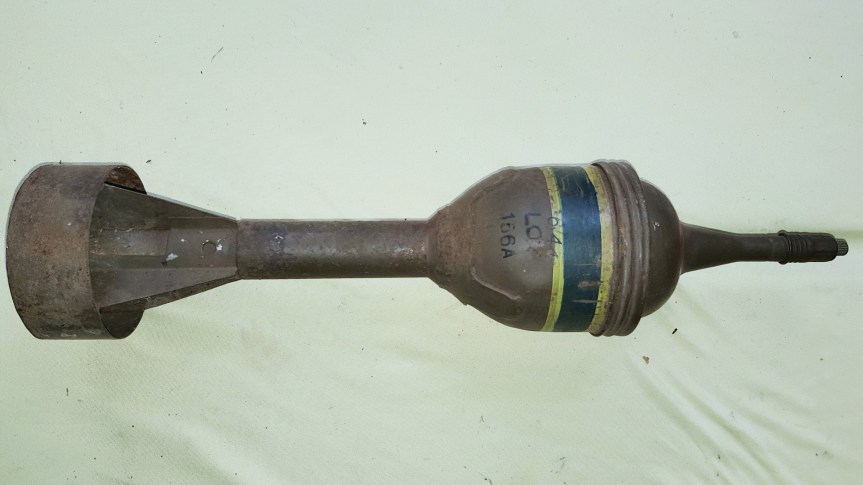

PIAT Bomb 3.jpg
The inert EOD ‘Mk3’ training round (Vic Tuff)

Our inert bomb isn’t painted black, instead it is painted up as a Mk3 to emulate what a live blind found in the field would look like.

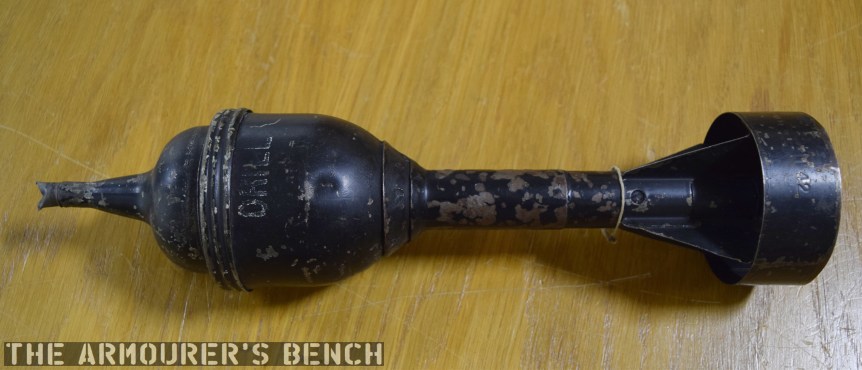

DSC_0712 (1).jpg
An inert ‘Drill’ round painted black (Matthew Moss)

Here’s an extract from the PIAT’s manual explaining how the fuze was fitted to a live round:

From the PIAT manual:
The fuze. – Until required for use the fuze is kept in a container attached to the drum tail by a spring clip….

ii. To fuze. – Remove the fuze container from the drum tail and take out the fuze. Remove the thimble from the bomb nose by pressing it downwards and turning it clockwise. Remove the transit plug from the fuze chamber and insert the fuze flat end first. Replace the thimble. The transit plug should be placed in the fuze container and the latter put in the carrier, in case the bomb should later have to be unfuzed.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.

ArmaLite AR10 Sudanese Bayonet

We’re proud to present our very first bayonet-centric episode. Vic takes a look at a bayonet for a Sudanese contract AR-10 as part of his ongoing Surplus Zone series. While a rather rare bayonet this example has some interesting features.

In 1958 the Sudanese Military contracted with Samuel Cummings company Interarmco, to supply 2,508 AR-10 Battle Rifles. 2,500 standard rifles and 8 adapted to mount optical sights as sniper rifles.

One of the requirements for the Sudanese rifles were that they were to be able to mount bayonets, something the AR-10 did not have a capability to do in its then current form. This inability to mount a bayonet was overcome by a rather simple and ingenious addition to the rifle. A cast and machined sleeve was fitted over the barrel between front sight base/gas block and the flash hider. This was pinned to the barrel just forward of the front sight base/gas block. It had machined into the underside of the bayonet adaptor a longitudinal rail to which the bayonet could be attached. This is the same interface as seen on WWII German issued Kar98K rifles, the significance of which will become clear!

It is uncertain why Interarmco chose the design of bayonet which they did. It would have been quite an expensive and complex one to manufacture but it is obvious that it is based upon the late WWII SG-42 bayonet come utility/fighting knife. The Sudanese contract AR-10 bayonet has a more symmetrical blade than that of the SG-42 and has no ‘blood groove’ (properly known as a fuller) which hints at the fact that it is seen more of a utility knife than as a ‘cut and thrust’ fighting knife/bayonet.

Sudanese AR10 Bayonet.jpg
Sudanese contract AR-10 bayonet

It has been established that the SG-42 was manufactured by Waffenfabrik Carl Eickhorn in Solingen, Germany (determined by its cof marking / WaA19 inspection code), whereas the toolkit was made by Robert Klaas of Solingen (inspection code: ltk). Inside the bayonet’s grip are a number of tools which detach from the grip and can be used for rifle maintenance. The tools also include a bottle opener and a corkscrew. Inside the toolkit stored in the bayonet’s grip are a number of tools which detach from the grip and can be used for rifle maintenance. The tools also include a bottle opener and a corkscrew.

In regard to the AR-10 Sudanese bayonet, the Eickhorn company does not deny being the manufacturer of the Sudanese contract bayonet, they simply cannot confirm that they were the maker, since all relevant factory records have been lost!

In the Dutch AR-10 archives, Interarmco (i.e. Samuel Cummings) does not disclose the name of the manufacturer, but refers only (in the pertinent correspondence with A.I.) to “the Solingen manufacturer” of this knife-bayonet for the Sudanese contract.

Check out Vic’s earlier Surplus Zone videos here and his special series on the AR-10 here.


If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.

Surplus Zone: SUSAT Scopes

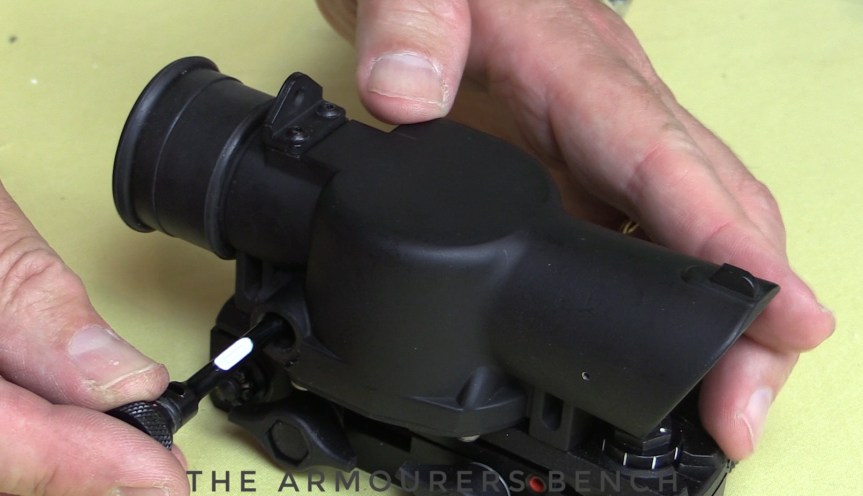

Vic continues his Surplus Zone series with a look at the British SUSAT sight, principle by Britain on the SA80 and by Spain with the CETME Model LV and AMELI. In this episode Vic shows us how to refit a SUSAT with new elements.

The Sight Unit Small Arms, Trilux was developed in the late 1970s by the Royal Armaments Research Development Establishment. It is a 4x optic which uses a radioactive tritium light source, for use in low light conditions, which due to radioactive decay has to be replaced every 8-10 years.

The SUSAT is still in use with the British Army.
