Swedish PV-1110 Recoilless Guns In Ukraine

On 18 August Russian Telegram channels began sharing photographs of weapons claimed to be captured from Ukrainian forces, near Sloviansk, including a DShK, a damaged MG-42/59 and most interestingly a Swedish PV-1110.

The Pansarvärnspjäs 1110 or PV-1110 is a recoilless gun developed by Bofors which saw service with the Swedish military between 1959 and the late 1990s/early 2000s. While not the only recoilless rifle/gun in use in Ukraine, others include the Carl Gustav and SPG-9, the 90mm smoothbore PV-1110 is perhaps the rarest. With sources suggesting that fewer than 2,000 PV-1110s were manufactured this would make the PV-1110 one of the rarest anti-tank weapons in use in Ukraine.

A Swedish PV-1110 claimed to be captured from Ukrainian forces (via Russian telegram channels)

Developed in the early 1950s it was adopted by Sweden in 1959, the PV-1110 could be mounted on vehicles but also on a wheeled carriage with the barrel suspended from an ingenious ball joint mount. In the photographs of the captured example, showing its serial number #5936, we can see this two-wheeled carriage for the weapon.

The ball joint was intended to compensate for firing from an uneven position. The PV-1110 weighs in at around 260kg (just over 570lbs) and has an optical sight on the left side of the barrel as well as a spotting rifle, based on the Ag m/42 chambered in 7.62x51mm, mounted on top. The PV-1110 has an effective range of up to 1,000m but engagement of moving targets is limited to around 700m according to the Lithuanian Army. With a good crew it is capable of firing up to 6 rounds per minute. The older m/62 HEAT round could penetrate up to 380mm of rolled homogeneous armour (RHA), the m/77 can penetrate up to 500mm and the m/84, the most modern and capable round can penetrate up to 800mm of armour. It’s unknown what ammunition has been provided for the guns.

A Swedish PV-1110 claimed to be captured from Ukrainian forces (via Russian telegram channels)

While it could be suggested that recoilless guns and rifles like the PV-1110 are obsolescent the continued use of the SPG-9 shows they still have their uses. The PV-1110’s low-profile combined with its still quite effective penetration means its still a viable weapon against most armoured vehicles its likely to encounter.

Following on from the first sighting in Ukraine on 22nd August footage of a PV-1110 firing from a defensive position surfaced and we can see the gun on its very recognisable mount.

Still from video of the PV-1110 in Ukraine, c.22 August 2022

But how did Ukrainian forces come by their PV-1110? There were likely transferred from one of the Baltic nations which have supplied Ukraine with considerable military assistance. Latvia, Lithuania and Estonia all received a number of PV-1110s from Sweden when they were retired from service. It is unclear how many weapons each of the three countries originally received.

Troops of the Lithuanian National Defense Volunteer Force training with the PV-1110 c.2014 (Lithuanian Army)

The Estonian Defence League reportedly had over 100 in inventory as of 2018 while the Latvian National Guard have a similar number. Lithuania’s Army and National Defense Volunteer Force have previously been seen to be equipped with the PV-1110 in recent years but they have reportedly since been placed in wartime reserve storage. No country has publicly confirmed the transfer of the PV-1110s, so with the Baltic nations slowly removing the guns from service it’s likely that the PV-1110s either came from the remaining guns held by the Swedish Army or from the stores of Lithuania, Latvia or Estonia. Regardless of their origin they represent one of the rarest recoilless guns in service in Ukraine.

Update 18/10/22:

Some recent footage of the PV-1110 in use in Ukraine. It is unclear where or when this footage was filmed but it surfaced on social media around 15 October. I suspect it was filmed during training rather than when in action. Regardless, it represents one of the few pieces of footage we have of the Swedish recoilless guns in action in Ukraine.

Update 25/01/23:

The recently raised 47th Separate Assault Brigade have shared several photographs of a PV-1110 on their social media pages, between 10 and 15 January. The photographs were likely taken during training. The first is a point-of-view shot down the weapon’s barrel while the second is a side profile shot – both taken during firing.

Update 2/05/23:

Recent video of a Pv-1110 shared by Ukraine Weapons Warfare.

Bibliography:

Pansarvärnspjäs 1110 Avvecklad, Soldf.com (source)

Prieštankinis beatošliaužis pabūklas PV1110, Lithuanian Army, (source)

Lithuania Volunteers Train with PV-1110, Lithuanian Army, (source)

90mm Recoilless Rifle promotional video, Bofors, (source)

If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!

Ukrainian Training Videos: RPG-18

Since the war in Ukraine began on 24 February, the Ukrainian armed forces have been hastily putting together and sharing training films for various weapon systems. we’re sharing these so they’re saved for the historical record and so they can be easily found by those who might need them. We’ll try and give some context on the weapon’s origins and on who made the training video.

Demonstrating how to deploy the RPG-18, the tube isn’t fully extended as its a live weapon

In this well shot video a Ukrainian soldier demonstrates the features and handling of an RPG-18. The RPG-18 (‘Mukha’ or ‘fly’) was the first of the Soviet/Russian family of extendable tube launchers (very similar to the US M72 LAW). The RPG-18 was developed in the late-1960s and was introduced in the early 1970s. It has since largely been replaced by larger calibre and more capable launchers. The weapon is a simple, smoothbore, single-use launcher. It is constructed from an aluminium tube with an outer layer of fibreglass.

A close up of the RPG-18’s locking system, rear sight and trigger

It isn’t clear how many RPG-18 the Ukrainian Armed Forces’ may have had in inventory before the war began but it appears that the weapon seen in this video was made in East Germany and probably transferred by Germany as part of Germany’s military aid shipments to Ukraine. While Greece have also reportedly transferred a quantity of RPG-18s, we have seen other examples in the field with identical German instructions stickers.

The video first surfaced around the 21st March, posted by Vadim Kodachigov (the director of Kort, a military industrial company) on Facebook, though he may not be the original creator. Kodachigov appears to be part of a Territorial Defence Force unit. The video identifies the unit as part of the 112th Territorial Defense Brigade (Kyiv). The production value of the video is relatively high, with a title card, good editing, close ups and some interesting footage of the weapon being fired.

RPG-18 Specifications:

Warhead64mm HEAT
Weight (round and launcher)5.7lbs (2.6kg)
Length27.8in (705mm) – collapsed 41.3in (1050mm) – extended
Effective Range220yd (200m)
Penetration11.8in (300mm) against RHA

If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!

Bibliography:

Earliest video source found: Vadim Kodachigov via facebook (source)

RPG-18, Military-Today, (source)

Britain’s First Anti-Tank Weapon

The British Army’s first dedicated anti-tank weapon was a rifle grenade. The No.44 Rifle Grenade was developed towards the end of the First World War to take on the emerging threat of German tanks.

A British officer firing a No.3 Mk2 Rifle Grenade (IWM)

The No.44 could be fired from a Short Magazine Lee-Enfield MkIII rifle, the British had developed a plethora of rod and cup discharger based rifle grenades but the No.44 was the first specifically designed with tanks in mind.

By 1918 the German Army had responded to the threat of British and French tanks by developing their own, the A7V, albeit in small numbers, and by fielding captured allied tanks.

The A7V was a leviathan at over 3.3m tall and more than 30 tons. It would be crewed by at least 18 men. It was decided that the infantryman needed an effective means of taking on tanks.

A German A7V (US National Archive)

Sources suggest that the grenades were developed by the by the Royal Engineers Experimental Station with input from the Tank Corps. The No.44 was largely based on the earlier No.24 rifle grenade. The British Army had been using rifle grenades with rods since February 1915 with the No.2 rifle grenade.

No.44 Anti-Tank Grenade (IWM)

A myriad of grenade designs were developed during the war with dozens of designs entering service between 1915 and 1918. Eventually the British Army moved away from using rodded rifle grenades, because of the implications of barrel wear from the friction of the rods, and focused on discharger cup based designs. The No.44’s spiritual descendent, the No.68, introduced in 1940, would follow this trend and be fired from the same discharger cup used by to fire No.36 grenades fitted with a gas check.

The No.44 grenade itself is made up of a pair of pressed tin plate pieces which make up the top and bottom of the bomb with a rolled sheet of tin making up the central body. The parts were soldered together with a filling plug also soldered into the top of the grenade. The grenade itself contained either Amatol 80/20 or Amatol 83/17 explosive, sources suggest about 11.5 ounces. While externally it may resemble later shaped charges, it was not, the explosive filled the space around the central detonator assembly.

Sectional diagram No.44 Anti-Tank Grenade

The ignition system was essentially a .297/230 cartridge case and a detonator. On firing a release socket moved to allow the retaining bolts to release the striker (or needle pellet) it had been retaining. The striker was then simply held back from the detonator by a spring. When the grenade struck its target inertia cause the striker to over come and compress the spring, allowing the striker to ignite the detonator and set off the grenade’s main filling. Given mass of the bomb and the type of detonator used the No.44 was probably intended for use at very short ranges.

Soldiers firing rod rifle grenades (IWM)

To use the grenade the firer would remove the wire fastening around the grenade to free the canvas vane. This would also allow access to the safety pin. The top plug could be undone and the detonator inserted. The rod was then slid down the muzzle of the user’s rifle. The safety pin could then be removed. A blank cartridge would be loaded into the rifle and when the trigger was pulled the was grenade launched by the gases from the cartridge pushing the rod out of the barrel. The No.44’s flight would be stabilised by the canvas skirt or vane.

There’s no mention of the grenades in the British Army’s Small Arms Committee Minutes so its development must have been documented elsewhere. It does, however, appear in the List of Changes and is known to have been issued from April 1918 onwards but further primary research is needed to find out more about its development, designers and testing.

No.44 Anti-Tank Grenade (Matthew Moss)

The No.44 remained in service into the inter-war period but does not appear in any of the post-war Small Arms Training manuals. Several were published during this period, the first in 1924 and a second in 1931 – the No.44 appears in neither of them. The final pre-war Small Arms Training pamphlet on grenades, published in 1937, is confined to just the No.36 grenade. According to Ian Skennerton’s book on British grenades there were no No.44s remaining in stores by April 1931 and it was declared obsolete.

Sources disagree on the number of No.44s manufactured with some suggesting just under 100,000 while others suggest between 125,000 and 150,000. According to Skennerton 9,800 were issued between April and November 1918. A very small amount when compared to the hundreds of thousands of other, more widely used grenades held in stores at the end of the war.

The German A7Vs were first deployed in March 1918, but only saw their first action the following month. With only 20 A7Vs built and the design proving relatively impractical the Allies had little to fear from German tank attacks. Sadly, there are no readily available records of the No.44’s use or its effectiveness.

British solider firing a cup discharger rifle grenade (IWM)

The A7V’s armour consisted of 5 to 30mm of steel plate depending on location on the tank. This steel plate was not hardened which may have increased the No.44’s effectiveness against it. It may be that the No.44 would have had to have been fired at close range and strike a vulnerable point on the attacking vehicle to have the most effect.

While not the only anti-tank grenade to be developed during the period, the French also developed several rifle grenades, and not as famous as the German T-Gewehr, it does represent Britain’s first dedicated infantry anti-tank weapon.

If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!

Bibliography:

An Introduction To British Grenades, I.D. Skennerton, (1988)

British Grenade Rifle No. 44 Anti-Tank, AmmunitionPages, (source)

Grenade, Rifle No 44 A.T. (Anti Tank), Imperial War Museum, (source)

Grenade, Rifle, No 44 Anti-Tank (Sectioned), Imperial War Museum, (source)

British No.24 Mk.II Rod Grenade, Inert-Ord.net, (source)

Men Against Tank, J. Weeks, (1975)

Behind the Scenes at the Tank Museum

Here’s a behind the scenes look at the filming Matt did at The Tank Museum for the upcoming ‘Rhineland 45 – Decision in the West’ documentary being produced by Realtime History, the guys behind The Great War!

Panzerfaust & Panzerschreck (Matthew Moss)

Be sure to check out the project here.

More behind the scenes footage coming soon with a look at the Vickers Gun shoot!

PIAT Scene Analysis: ‘The Unbroken Line’ (1985)

Following on from our earlier look at the PIAT scenes from A Bridge Too Far and Theirs Is The Glory in this video we’ll take a look at ‘The Unbroken Line’, a short British Army film, made in 1985. It tells the story of the British Army’s 300 year history with depictions of the battles of Blenheim, Waterloo and Operation Overlord – as well as a depiction of what fighting against a Soviet invasion in 1985 might have looked like.

The PIAT No.1 takes aim (Still from The Unbroken Line)

In this short video we’ll look at one of the interesting scenes that features a PIAT in action! The PIAT goes up against a Jagdpanzer 38 tank destroyer. Set in Normandy after the D-Day Landings we see a section from the Dorset Regiment. When the German Jagdpanzer crashes through the wall the section commander shouts ‘PIAT’, calling on the PIAT team to move up and engage the tank destroyer. The PIAT No.1 take up position and manages to knock out the Jagdpanzer but sadly he’s then the victim of a German grenade. The Dorsets then storm the ruins and capture the defenders and the tank destroyer crew.

For more about ‘The Unbroken Line’ check out RM Military History’s special video where myself and Robbie chat with David Carson, the historical advisor on the film!

If you enjoyed the video and this article please consider supporting our work here. We have some great perks available for Patreon Supporters. You can also support us via one-time donations here.

Surplus Zone: PIAT EOD Training Bomb

Whilst looking through the piles of surplus ‘kit’ in my friends warehouse in Germany I came across an interesting find, an Explosive Ordnance Disposal (EOD) training kit that has several examples of WWII and after ordnance that might be found on training grounds and former battlefields throughout Europe.

One of the elements from that training kit was a PIAT or Projector, Infantry, Anti-Tank, round. Many of these have been found across northwest Europe since the end of WWII and it was important for EOD teams to be able to identify them and understand how they work in order to safely dispose of them.

DSC_0042 (1).jpg

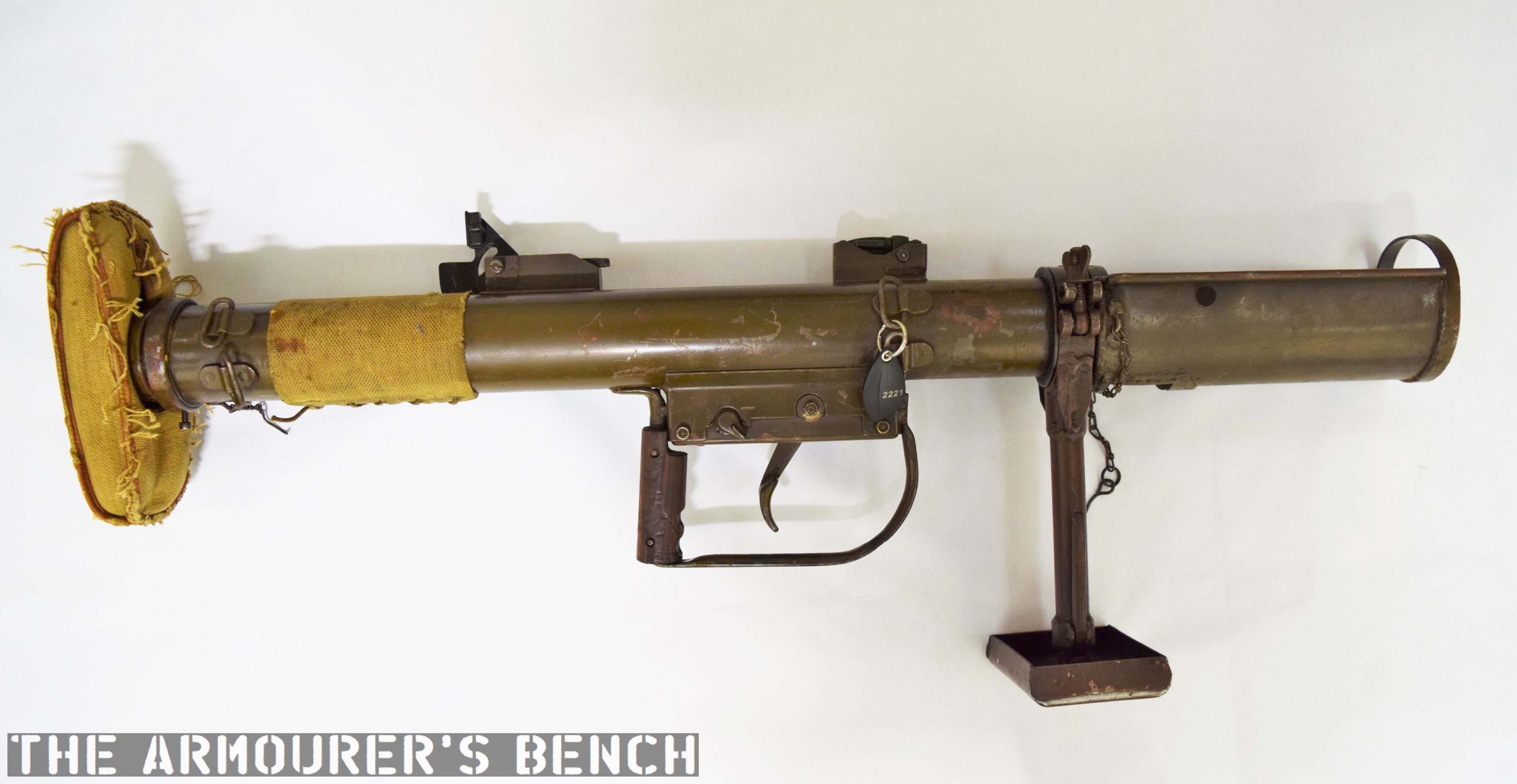

A British a PIAT or Projector, Infantry, Anti-Tank (Matthew Moss)

This example is likely an ‘instructional’ round that may have been produced from a previously live round and not subsequently marked as inert. In the video, which was filmed on location from memory, I mentioned that the charge was inside the front cone. Instead the charge was actually just behind the steel cone, which acted as a forcing cone, and has seen been replaced by some sawdust. We can see this in the diagram below, which shows an earlier Mk round but the configuration remains the same:

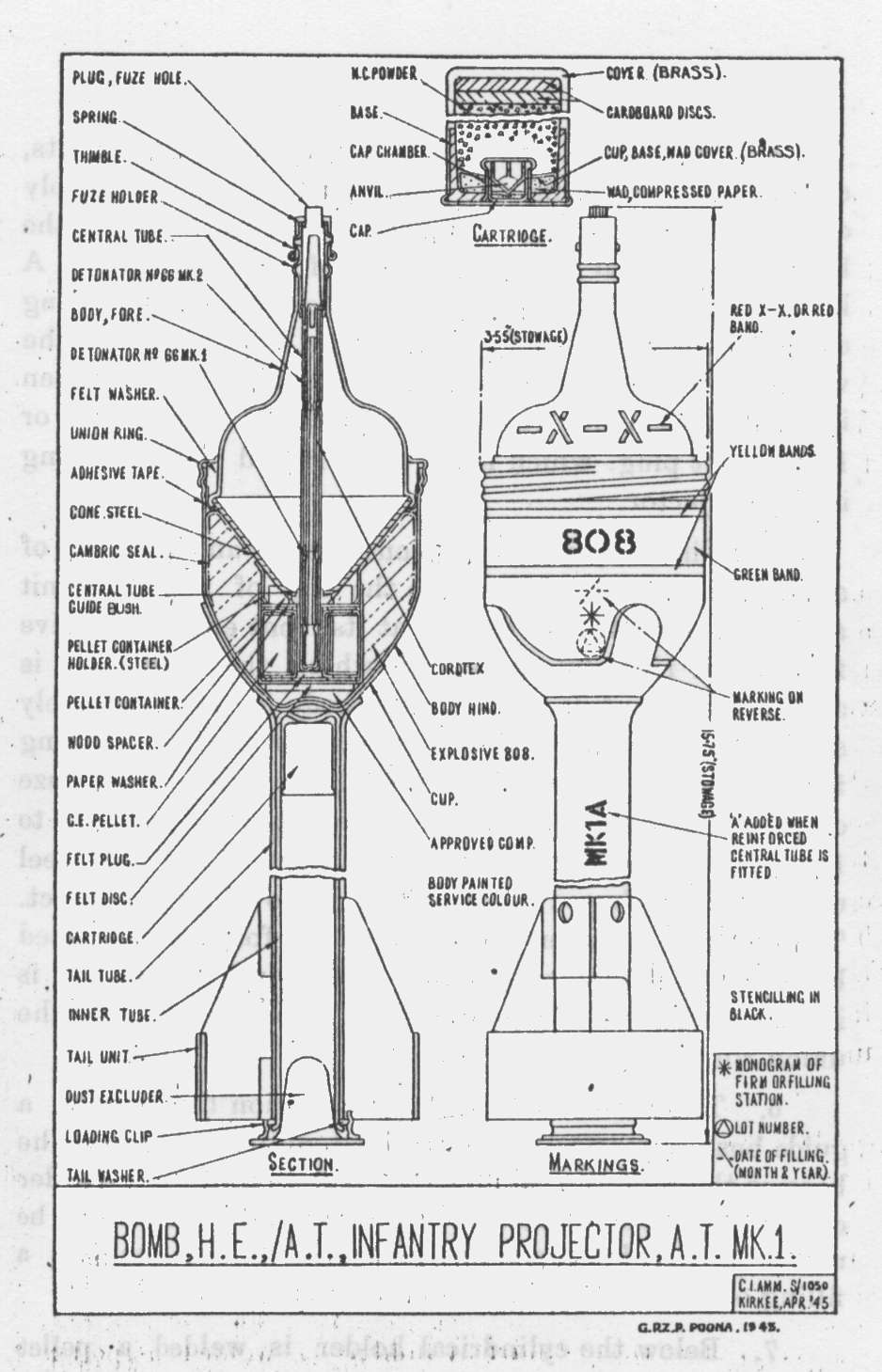

piat bomb.jpg

PIAT Bomb 1.jpg

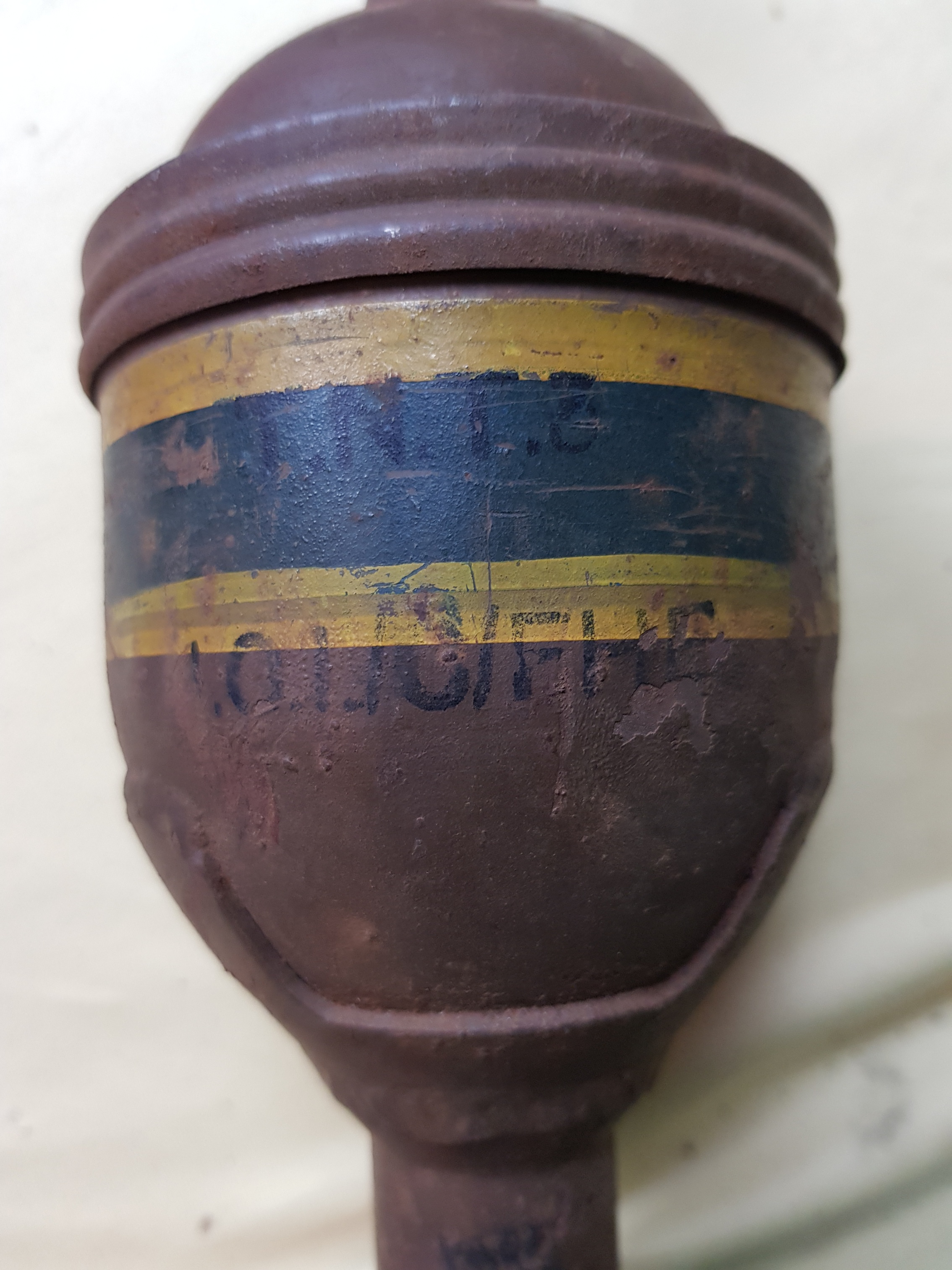

A close up of the bomb’s markings (Vic Tuff)

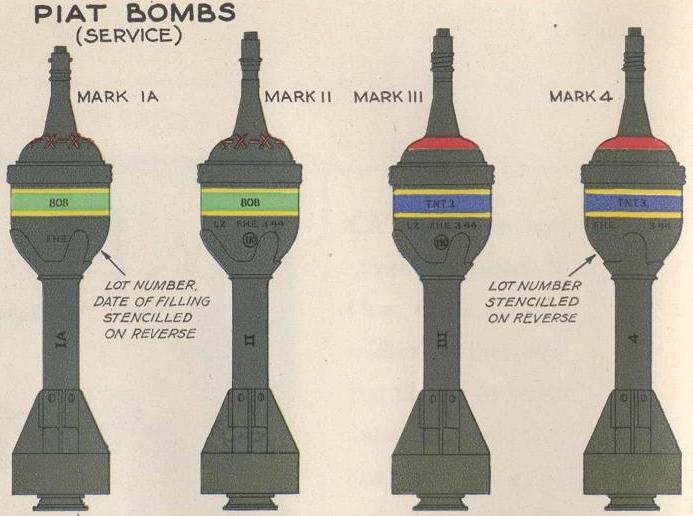

This time we examine an example of the Mk3 PIAT Bomb. When I filmed the video I wasn’t sure of the markings but this chart below more clearly explains them:

PIAT Bombs 1.jpg

There were 7 marks of PIAT bomb:

MkI yellow/green/yellow band 808 stamped on green band, red x’s around nose cone

Mk2 as above

Mk3 yellow/blue/yellow band TNT stamped on blue band, red circle around nose cone

Mk4 as above

Inert bomb black with yellow band INERT in white

Drill bomb black with DRILL in white x 2

Practice bomb – to fit the practice insert tray, painted white and it looks nothing at all like a PIAT bomb!

PIAT Bomb 3.jpg

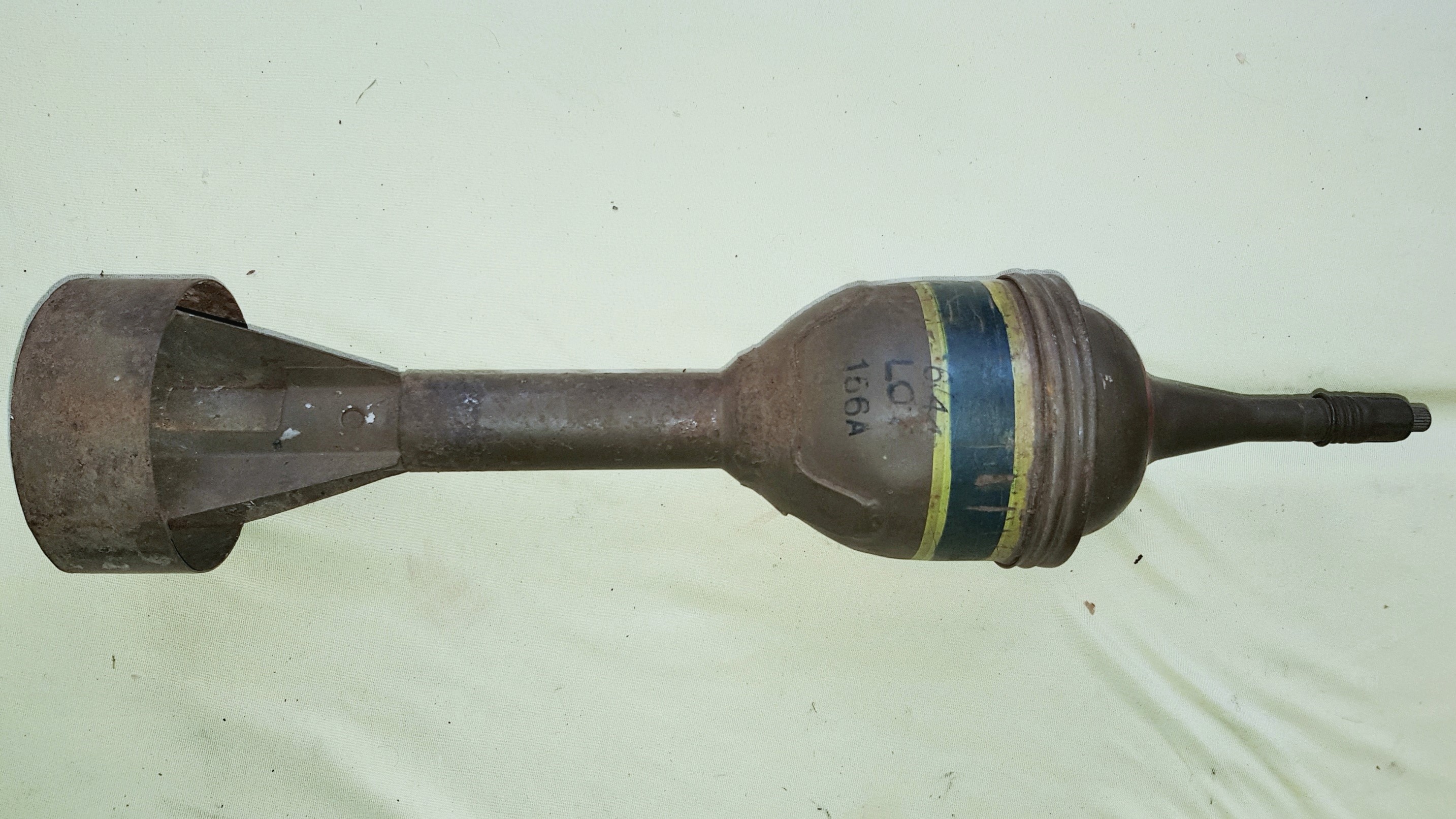

The inert EOD ‘Mk3’ training round (Vic Tuff)

Our inert bomb isn’t painted black, instead it is painted up as a Mk3 to emulate what a live blind found in the field would look like.

DSC_0712 (1).jpg

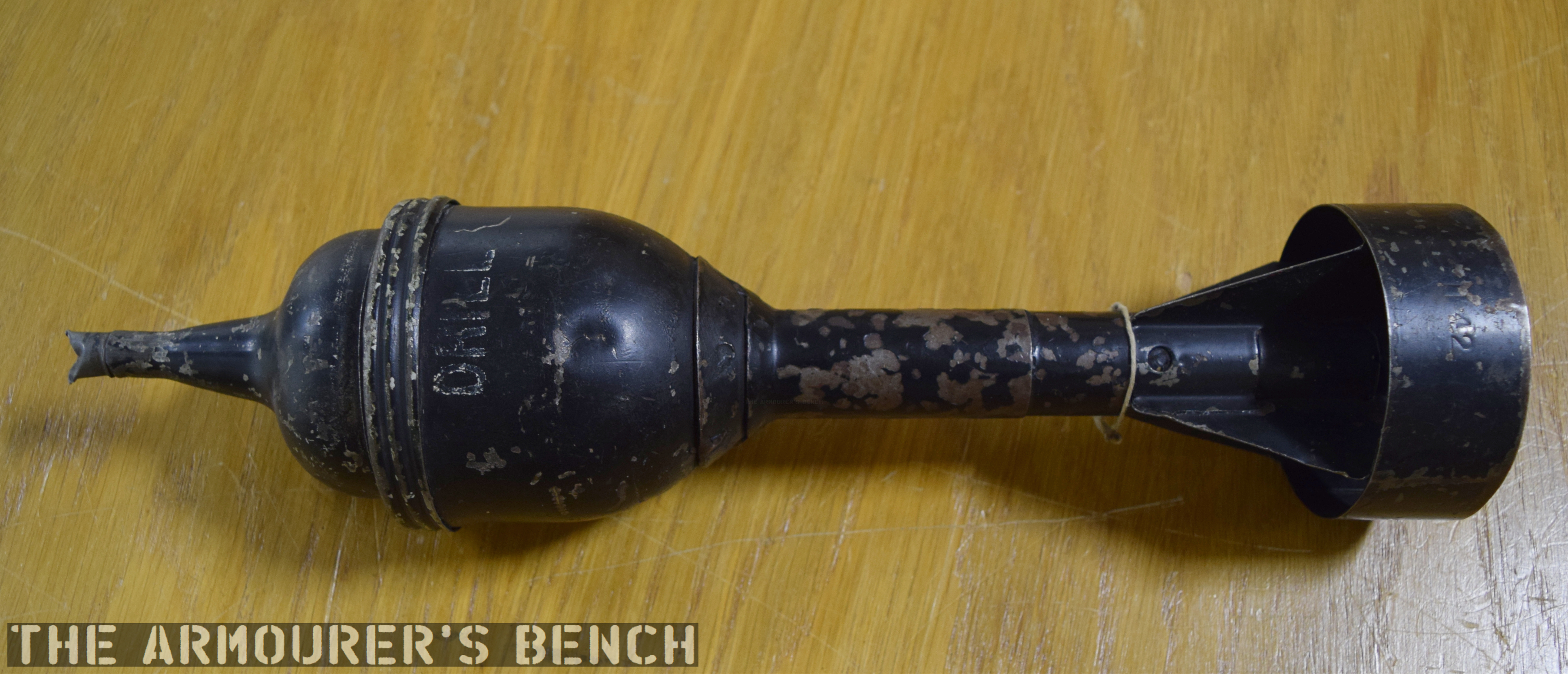

An inert ‘Drill’ round painted black (Matthew Moss)

Here’s an extract from the PIAT’s manual explaining how the fuze was fitted to a live round:

From the PIAT manual:
The fuze. – Until required for use the fuze is kept in a container attached to the drum tail by a spring clip….

ii. To fuze. – Remove the fuze container from the drum tail and take out the fuze. Remove the thimble from the bomb nose by pressing it downwards and turning it clockwise. Remove the transit plug from the fuze chamber and insert the fuze flat end first. Replace the thimble. The transit plug should be placed in the fuze container and the latter put in the carrier, in case the bomb should later have to be unfuzed.

If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.
