Vickers Gun Disassembly

The Vickers Gun is an iconic weapon, developed from the Maxim and adopted by the British in 1912. It served for over 50 years in conflicts all around the world. In this video, we’re lucky enough to have Richard Fisher of the Vickers Machine Gun Collection and Research Association shows us how to disassemble a the gun and talk us through its internals.

Big thank you to Rich for taking the time to help with this video and provide the voice over explaining the process! We’ll have more videos on the Vickers Gun in the future! Check out Richard’s work over on the Vickers Machine Gun Collection and Research Association’s site here.

I’ll let Rich explain the disassembly process in real time in the video but here are a couple of photographs of the gun disassembled:

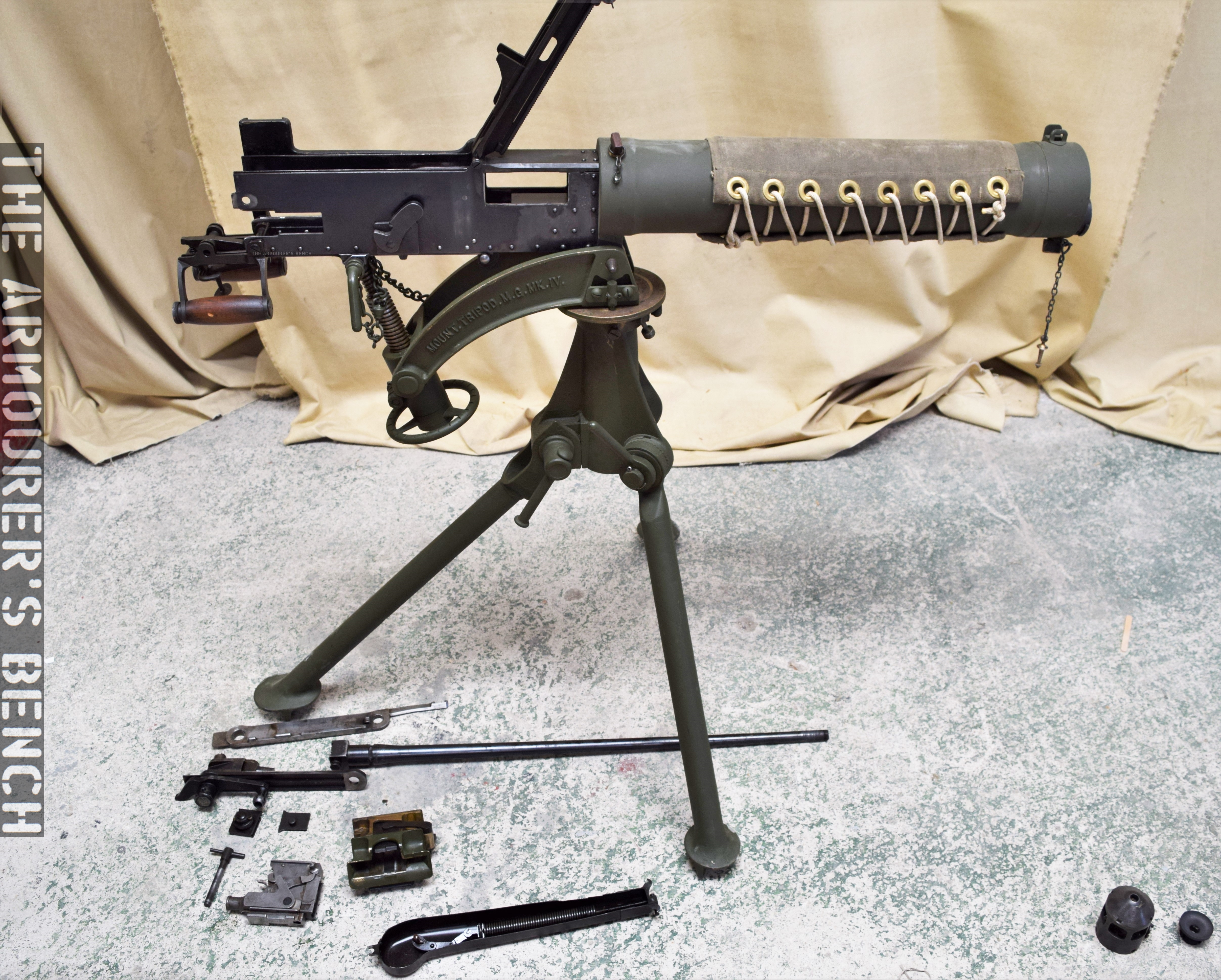

DSC_0371
The Vickers gun field stripped (Matthew Moss)

This is the gun in its fully field stripped condition, with lock still assembled, but with its fusee spring and cover off and its barrel and action removed. Just below the barrel is the feed block.

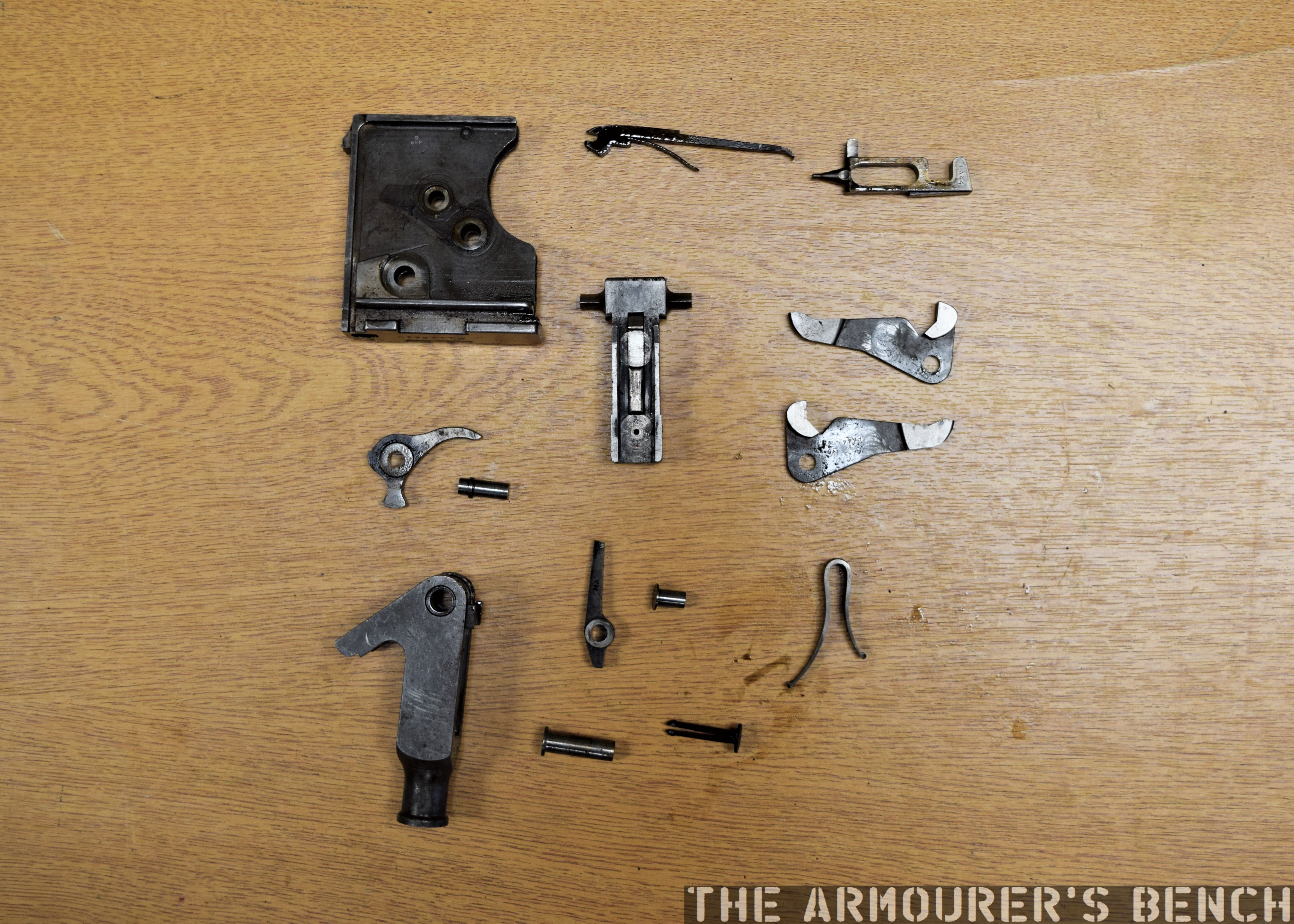

Here’s the Vickers Gun’s lock disassembled into its 14 component parts:

DSC_0363
The gun’s disassembled lock (Matthew Moss)

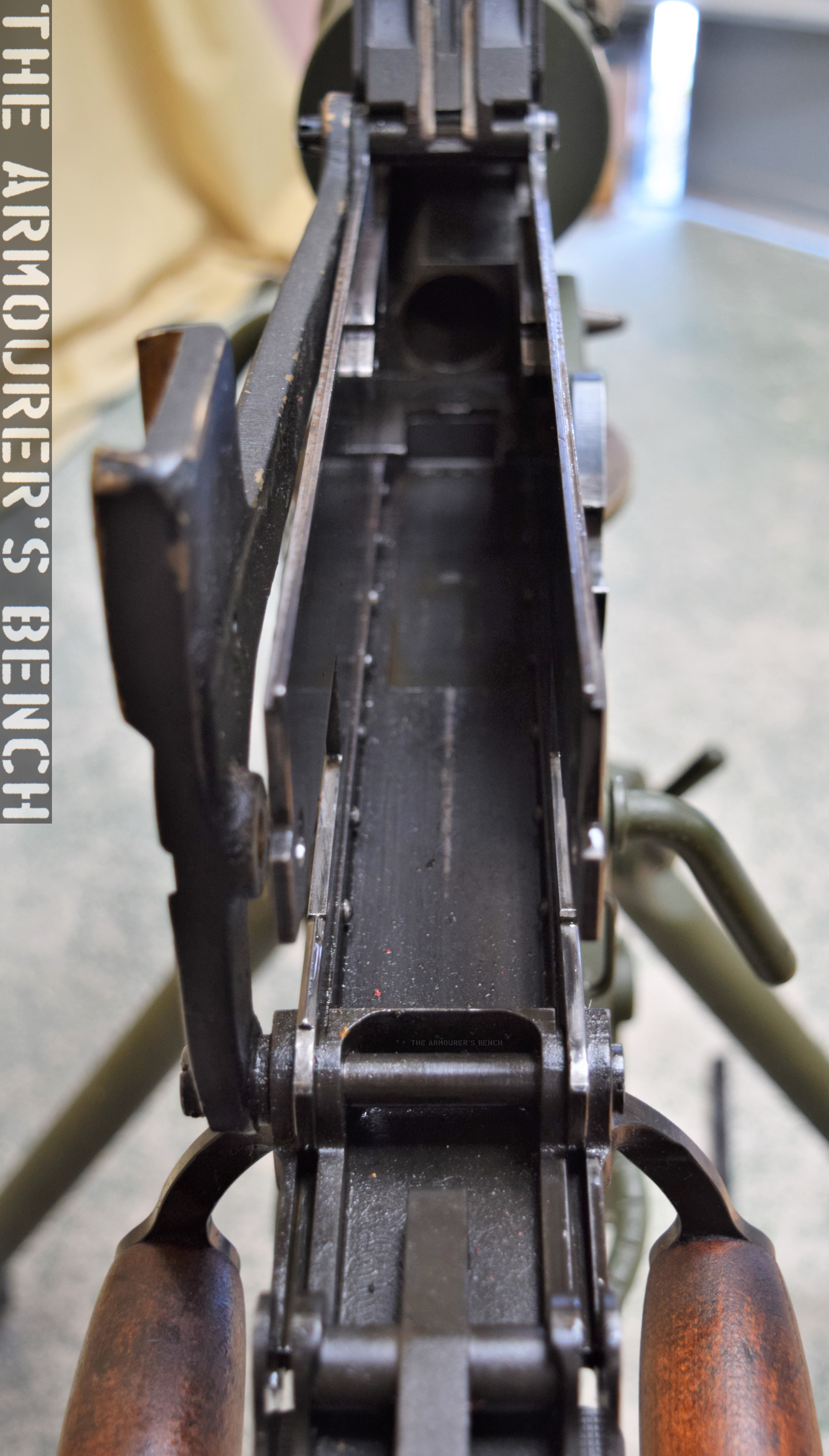

This photo gives us a good look inside the receiver with the barrel, action and side plates removed, The spade grip assembly simply folds down to allow the action and barrel to be slide out of the gun.

DSC_0366
Once the action and barrel is removed you can look straight through the receiver and down through the water jacket (Matthew Moss)

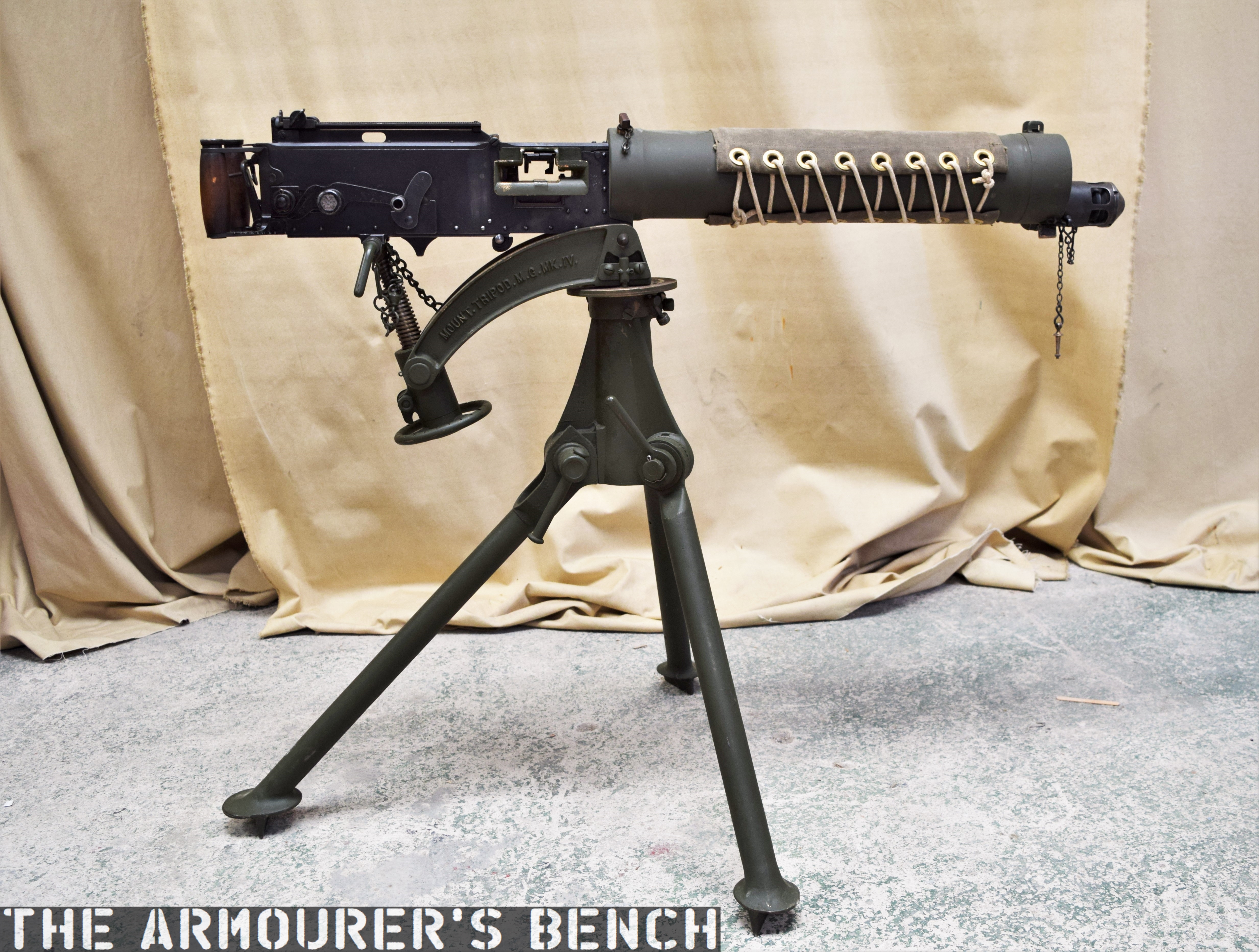

Finally, here’s the gun reassembled and ready for action.

DSC_0353
The gun fully reassembled (Matthew Moss)

Thanks again to Richard for his help with this video, it was great to collaborate and hopefully we’ll have more videos with Rich in the future.  Please check out the Vickers Machine Gun Collection & Research Association’s site to find out more about what they do. They have some wonderful resources, including a comprehensive collection of manuals, for not just the Vickers but also the wider British Army from the past 100 years. You can also order copies of the brilliant instructional posters which were featured in the video over on the the associations website too!

If you enjoyed the video and this article please consider supporting our work here. We have some great new perks available for Patreon Supporters.



Interview with Richard Fisher of the Vickers Machine Gun Collection

Richard Fisher, the director of the Vickers Machine Gun Collection and Research Association, was kind enough to invite us down to take a look at his collection of Vickers guns. Richard is a fantastic source of information on the Vickers, and British small arms more generally, and I’ve picked his brains on numerous occasions in the past so it was a real pleasure to meet him in person and discuss the collection.

I thought the best way to explain what the collection and research association does is to discuss it on camera with Richard, so as a result we have TAB’s first ever interview. Incidentally, it’s also the first on-camera interview I’ve ever conducted!

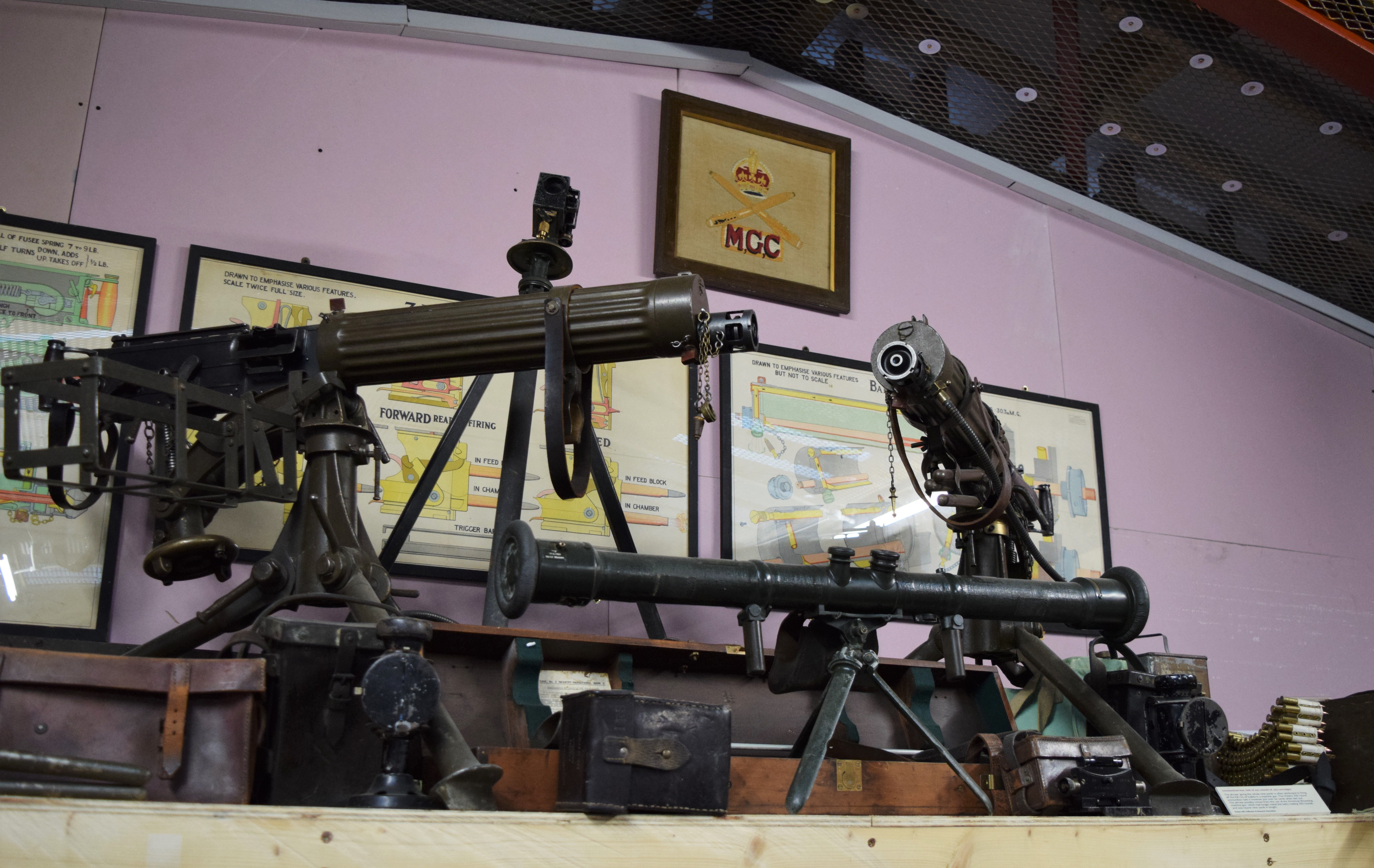

Vickers guns
A pair of Vickers Guns dating from 1915 at the Vickers Machine Gun Collection (Matthew Moss)

Richard’s impressive collection spans much of the Vickers’ history with representative examples of not just the many different types of Vickers that were produced but also the accoutrements and equipment that went along with the guns. The collection endeavours to bring together all the weapons, kit and equipment that a British Army section that operated the Vickers would have carried – during both World Wars.

The collection is open to visits from interested individuals and parties and is often shown at history events around the UK. Richard’s website is one of the best sources of information, manuals and documents on the Vickers available and is well worth checking out.

You can find the Vickers MG Collection on twitterfacebook and online at their website: www.vickersmg.org.uk

We’d like to thank Richard for inviting us down and for speaking to us about the collection. In the future we will hopefully have more videos featuring the collection.
