In an earlier video/article we examined the M14s which appeared in Ukraine back in March 2022, since then there have been a number of intriguing sightings of what, at a glance, appear to be Mk14 Enhanced Battle Rifles or M39 Enhanced Marksman Rifles. The EBR and EMR emerged during the Global War on Terror in the early 2000s as an improved variant of the 7.62x51mm M14.
The project to develop a more compact, improved M14 reportedly evolved from a request from US Navy SEALs in 2000 for a rifle for Arctic warfare. This eventually developed into what became the Mk14 EBR with development led by Naval Special Warfare Centre Crane and input from commercial specialists and manufacturers including Smith Enterprise, Inc. and Sage International. The result was a rifle with a 18 inch barrel and new flash hider, with changes to the operating rod guide, a new stock chassis and a raft of accessories. A number of different variants were built including the Mk14 Mod 0, Mod 1 and Mod 2, the M14 EBR-RI and the USMC’s M39 EMR. In total between 2003 and 2011 just over 9,000 of these upgraded variants were assembled.
Given the significant number assembled and the fact they have been replaced by rifles such as the M110 Semi Automatic Sniper System (which has already been seen in Ukraine) and the M110A1 CSASS it would not be unsurprising to see Mk14 EBR variants turn up in Ukraine.
Over the past two years I’ve been tracking sightings of what appear to be Mk14 EBR variants but on closer examination some of them are not what they initially seemed to be, several were in fact kit builds using the standard configuration M14s which reached Ukraine in early 2022. Some, however, do appear to be surplus Mk14s.
Yuri’s Mk14 EBR clone at the range (Nucking_Futs_Yuri)
First, let’s examine some of the kit builds seen in theatre. The first appears to have been assembled by Nucking_Futs_Yuri, an American volunteer who enlisted in the Ukrainian Army in early 2022. Yuri explained to me that in late 2022, following combat experience where he wasn’t satisfied with how well 5.56x45mm suppressed a Russian position he decided to assemble an EBR clone using a donated chassis. Yuri noted that parts for the rifle began to arrive in December 2022 and by January the rifle had been assembled. Yuri was seen with the rifle in numerous photographs and in several configurations. It had a standard 22 inch barrel, a Sage International M14ALCS chassis and a M14DCSB (Detachable Cantilevered Sight Base). He mounted a 1.5-6x Elcan SpectreDR optic on the rifle, opting for more of a battle rifle-style set up. The rifle was damaged in February 2023 by a Kornet ATGM blast which bent both the barrel and the chassis.
Yuri’s damaged Mk14 EBR clone (Nucking_Futs_Yuri)
In early May 2023, another rifle which resembled an M14 EBR-RI, with a 22in barrel and a black Sage International M14ALCS chassis, appeared in use with a member an International Legion team. This individual and his rifle was seen again in May 2024 appearing in a number of interviews with Ukrainian media. His callsign was revealed to be ‘Solo’ and he was described as a marksman and a squad leader with a unit of the International Legion’s 3rd Special Purpose Battalion. In the interview he explained that the rifle has originally been a wooden stocked M14 converted with a SAGE chassis sent to him by a friend in the US. Interestingly, between May 2023 and May 2024, it appears the rifle’s set up has evolved with new FDE rail covers added and a short tan Kydex handguard replacing the initial black longer handguard. These parts were likely acquired in Ukraine.
‘Solo’ with his Mk14 clone built off a standard M14 (Суспільне Донбас)
Most intriguingly, in November 2023, the first Mk14 Mod 1 appeared. Mod 1s are characterised by their shorter 18in barrels, a Sage M14ALCS/CV-BS with Magpul CTR FDE stock (with a cheek riser) mounted on a buffer tube extension rather than the earlier collapsing stock. The rifles also have LaRue LT-608 extended Picatinny risers and short tan handguards. The rifle is equipped with a Schmidt & Bender PMII 5-25×56 scope.
A Mk14 Mod 1 EBR with Schmidt & Bender PMII, Nov. 2023 (via social media)
The Mk14 Mod 1 was assembled at NSWC Crane in 2006, around 500 were assembled. The shorter barrel and the general configuration of parts and accessories suggest that this may be a surplus rifle transferred by the US.
A recent sighting of a Mk14 Mod 1 EBR (via Tysk)
Most recently, on 18 October, Ukrainian telegram channel Tyskshared a series of photos of a Ukrainian combatant at the range with another Mk14 Mod 1. This rifle’s parts and accessories closely match those assembled by Crane for the Mod 1, including: an 18in barrel with a SureFire FH762KM14 muzzle device, a TangoDown BG-16 FDE pistol grip, a Sage M14ALCS/CV-BS with a Magpul CTR FDE stock (this time without the cheek riser), a TangoDown BGV-MK46 FDE vertical foregrip, and a TangoDown ACB-4 FDE bipod. The rifle is also equipped with a NightForce NXS 2.5-10x24mm optic and a DOCTER MS01 3.5 MOA red dot sight which were selected to be paired with the Mod 1. [It has been noted that the Mod 1s may also be clones due to some small differences in the chassis profile and accessories used – for instance the model of VFG, scope rings, cheek riser, and the machining on the chassis. If this is the case someone has gone to an improbable amount of trouble to ‘clone’ a Mod 1, a considerable level of effort to expend in a war zone. Thanks to tanodized for input.]
From the very limited imagery available of Mk14 EBR-pattern rifles in Ukraine it appears that numerous clone builds have been assembled in-country and that the only EBRs which can be identified as potential US transfers are the two Mk14 Mod 1 variants seen so far.
A squad designated marksman with an Mk14 EBR-RI (the most common EBR variant), 5th Battalion, 20th Infantry Spin Boldak, Afghanistan, 2012 (US Army)
If the US was to transfer a significant number of Mk14-pattern rifles I would expect them to be the Mk14 EBR-RI, the most common variant, some 6,000 of which were assembled by Rock Island Armory – TACOM [Tank-automotive and Armaments Command]. It is unsurprising clone rifles have been assembled by combatants in Ukraine as Sage International and a number of other US manufacturers offer EBR-pattern chassis which do offer some improvements over the traditional M14 configuration.
Way back in October 2022 video of the extremely rare Ukrainian RG-1 circulated online thanks to Yuri, an American member of the Ukrainian armed forces (known as Nucking_Futs_Yuri, best known as for his combat footage of him manning an M2 Browning and firing numerous AT-4s from a HMMWV). Yuri and his colleague Kaiser, a German volunteer, very kindly shared their videos of the RG-1 filmed when they had the chance to fire the weapon during some range time. As far as I can tell those videos remain one of the few occasions that the weapons have been seen during the ongoing fighting following Russia’s invasion. Since October 2022, I’ve been holding off on making a video about the RG-1 in the hopes more imagery might appear – there have only been two more sightings.

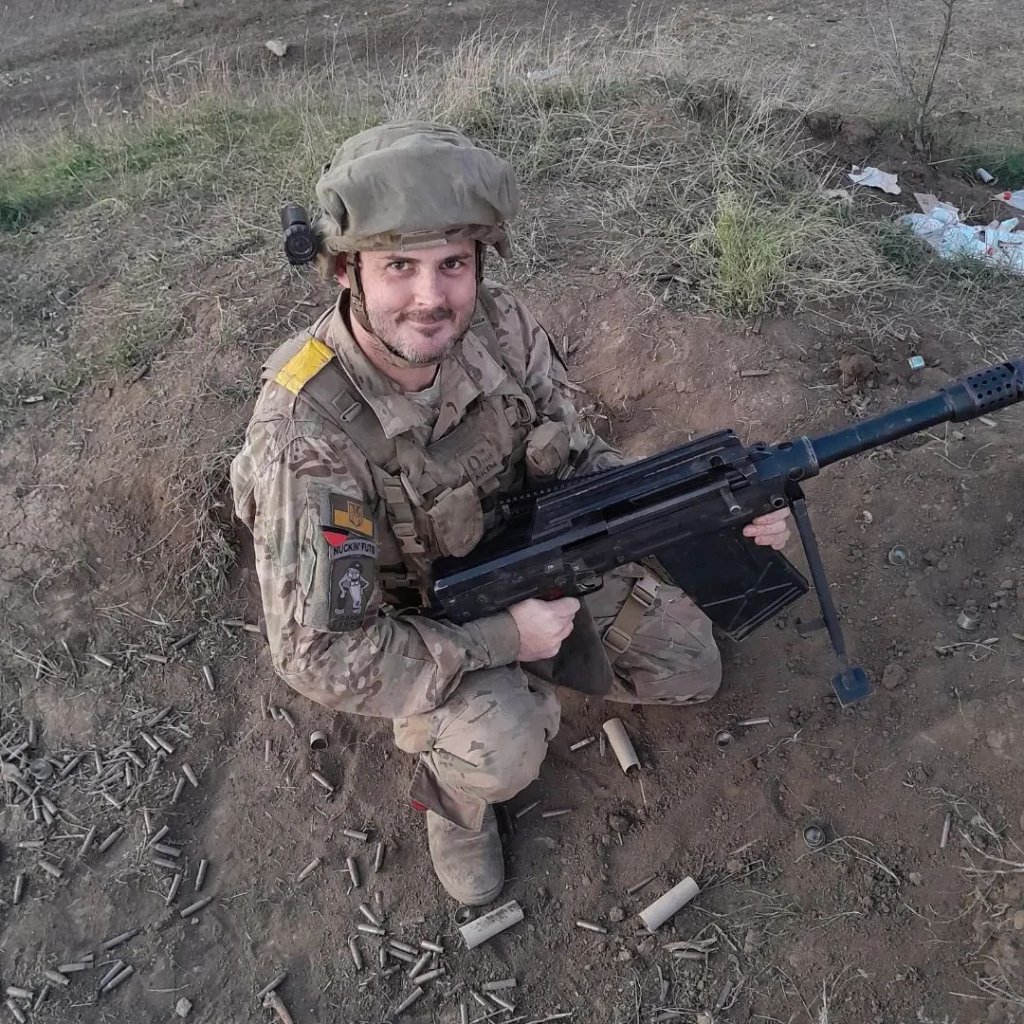

Yuri with an RG-1 at the range, October 2022 (via Yuri)
The RG-1 “Piston” (РГ-1 “Поршень”) was developed as a cost effective force multiplier, to provide the firepower of an AGS-17 in a man portable package. Information on the weapon is scarce and I’ve had to dig through a number archived Ukrainian news articles and other sources to pull together some of the story of the RG-1.
A 2014 article from UkraineIndustrial.info suggests the project to develop the RG-1 was launched in 1999 and continued until 2007. It was reportedly developed by the Yuzhny Machine-Building Plant. A.M. Makarov with the design team including Alekseev Yury Sergeevich, Serbin Vladimir Viktorovich, Zagreba Alexander Ivanovich, and Mezhuev Nikolay Nikolaevich

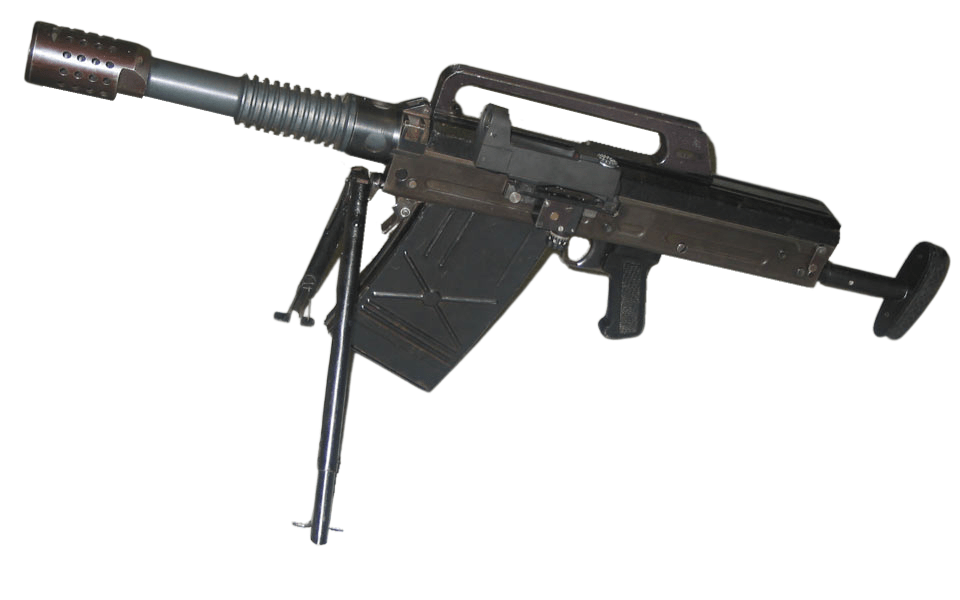

RG-1 grenade launcher with red dot sight mounted on quadrant sight bar (Yuzhmash)
The RG-1 is a self-loading grenade launcher which fires 30×29mm VOG-17-pattern grenades. Some sources refer to specially made, lighter grenades made for the RG-1. Numerous sources also refer to a training round and a round designed for use against light armoured vehicles. The ammunition was reportedly developed by the Pavlograd Mechanical Plant, which is run by Yuzhmash. The RG-1’s relatively long barrel allows it to engage targets at ranges out to around 800m. The weapon does not appear to have a gas piston and it’s barrel is fixed suggesting it isn’t recoil operated. It may be gas blowback operated, though it’s unclear if it has any sort of bolt delaying system in place. The weapon has a large main spring soaking up the recoil as well as a large top-ported muzzle brake.
The weapon’s weight is reportedly around 12kg (26.45lbs) loaded and 10.8kg unloaded. It has a 30cm (11.8in) barrel, has an integral bipod and feeds from a five round box magazine. The box magazine rocks forward to lock into the receiver, with the paddle magazine release located forward of the magazine (the reverse of the standard AK position). To load the weapon the bolt has to be pulled to the rear, but with no bolt hold open device it has to be held to the rear manually. There is a quadrant sight on the left side of the weapon’s receiver with a Picatinny rail for mounting optics. The buttstock has a rubber pad and from the available imagery there appears to be two designs of stock.
Uprom.inforeported in 2018, that as of Spring 2017, the RG-1 was not in full-scale production but prototypes had been undergoing field trials with the 79th Airmobile Brigade during fighting in Donbas, as early as 2016.

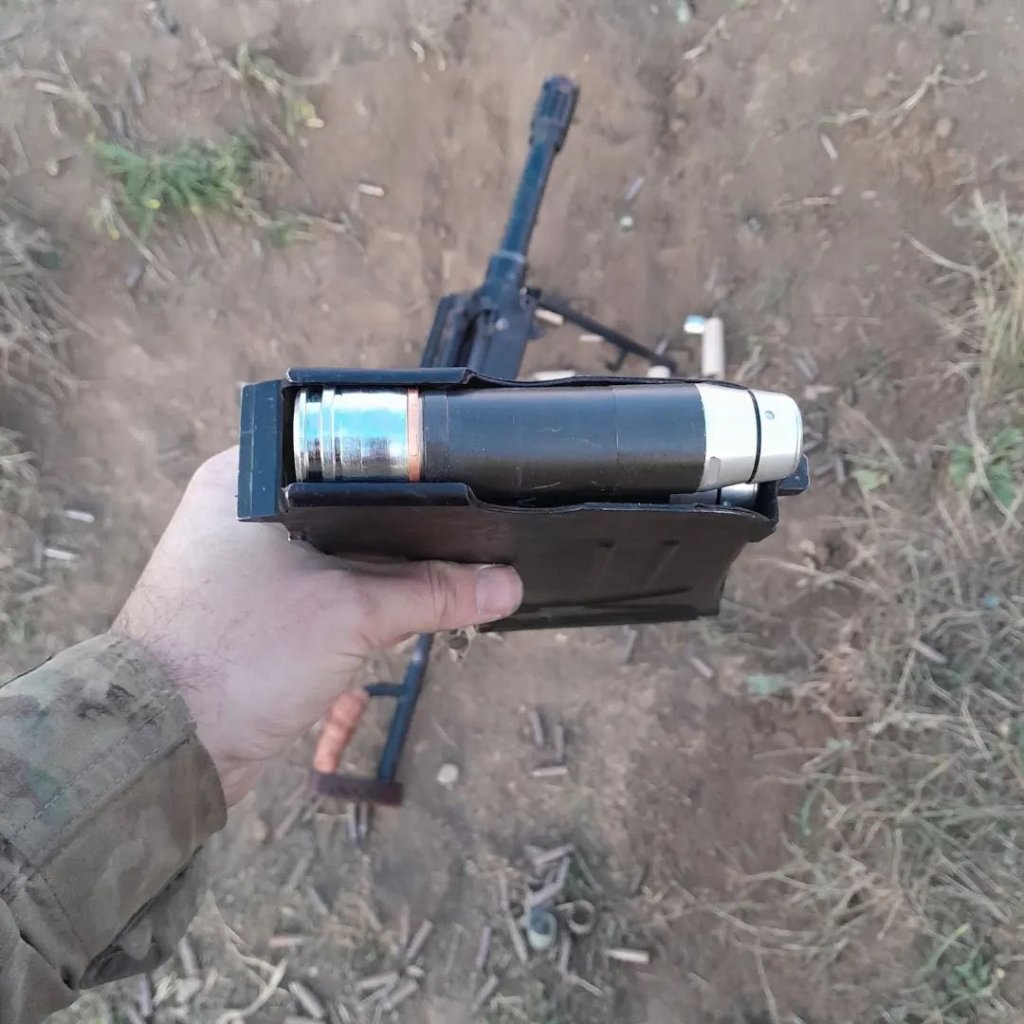

30×29mm VOG-17-pattern grenades in RG-1 magazine (via Yuri)
Speaking to Yuri in 2022, he noted that his unit didn’t bother using the RG-1 as they had plenty of 40mm grenade launchers in inventory, including then-newly arrived M320s. Yuri explained that “the RG-1 was a stop-gap weapon to give the average man the capability to fire VOGs without having to get an AGS into position.” The low velocity 40mm grenade launchers are smaller, lighter, easier to carry and, according to Yuri, have better range an accuracy than the RG-1.

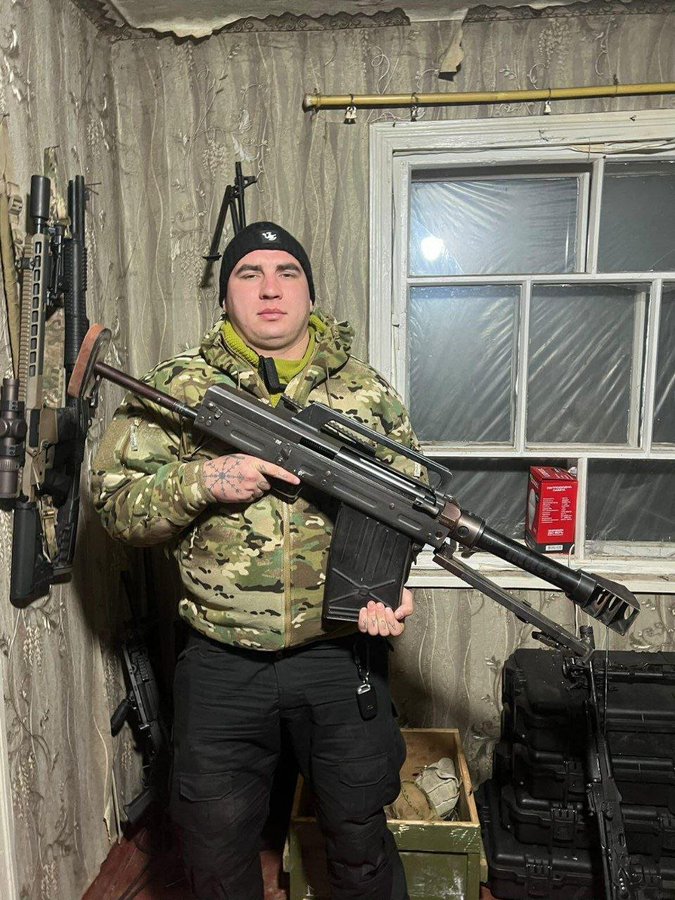

A second sighting of an RG-1 came in mid August 2023, when another video of the weapon being fired on a range was shared. The most recent sighting came in October 2023 when a curious photograph of General Kyrylo Budanov, chief of Ukraine’s Main Directorate of Intelligence, was published showing an RG-1 in the corner of his office.
Gen. Budanov poses with Joker paining next to an RG-1 (via social media)
The RG-1 is an extremely interesting weapon. Designed to fulfil a tactical niche between the common GP-25 single-shot under-barrel grenade launcher and the heavy AGS-17 automatic grenade launcher. Essentially the RG-1 was intended to be light enough for the operator to manoeuvre and act as an integral support element within the squad. However, in the current phase of the war the proliferation of low velocity 40mm grenades has largely rendered the RG-1 unnecessary. If you’ve seen other imagery of RG-1s in use please do let me know.
Since my last article/video on Russia’s ‘turtle tanks’ the adapted vehicles have continued to be used on several fronts but on Monday, 17 June Ukrainian forces captured their first turtle tank intact.
Known by numerous names by both sides including ‘Blyatmobiles’ (Блятьмобиль) and ‘assault garages’ (штурмовые гаражи), ‘Tsar Mangals’ (Царь мангал) or simply ‘sheds’ (сарай) the tanks are characterised by them being equipped with large counter-FPV shells made from readily available sheet metal (and other non-standard materials) and are sometimes equipped with electronic warfare jammers to provide additional protection against drones and sometimes with mine clearing devices such a mine rollers or ploughs. They appear to have been developed to provide improvised breaching vehicles capable of penetrating Ukrainian minefields, withstand drone attacks and in some cases deliver troops to an objective.
Front of the Turtle Tank captured in the field (via ArmyInform)
From posts on Ukrainian social media the tank was reportedly captured by troops from the 22nd Separate Mechanised Brigade but the vehicle was first encountered near Klishchiivka by soldiers of the 244th battalion of the 112th Territorial Defense Brigade that had been seconded to the 5th Assault Brigade.
The turtle tank allegedly became lost in the Klishchiivka area and saw an M113 APC belonging to the 2nd Battalion of the 5th Assault Brigade and began following it. When the M113 crew spotted the enemy tank it attempted to hide. The tank, however, continued to follow and on reaching the M113 a member of the turtle tank’s crew said to be the driver got out to ask for directions. He was captured by medics of the 244th Battalion. From the footage available it appears that the following morning troops of the 22nd Separate Mechanised Brigade approached the tank and captured an undisclosed number of Russian troops who were travelling in the rear of the turtle tank’s counter-FPV shell. Despite numerous sources and accounts the timeline of the tank’s capture remains somewhat unclear.
The immobilised Turtle Tank captured in the field (via 22nd Separate Mechanised Brigade)
Subsequently released footage from a 22nd Mechanised Brigade drone appears to show the Turtle Tank being damaged by a drone dropped munition before it was captured. The post with the video claimed that the turtle tank’s crew became disorientated after the drone attack and mistakenly drove towards Ukrainian lines. Lt. Colonel Serhiy Misyura, of ArmyInform, also noted that the vehicle was struck by an FPV. Lt.Col. Misyura claims that the drone dropped munition detonated next to one of the tank’s road wheels and immobilised it. After it was captured Ukrainian troops were able to get the tank moving again and drive it to the rear.
Drone footage then shows the capture of the tank’s crew and the vehicle moving off towards the Ukrainian rear. Teoyaomiquu shared a short clip filmed by a member of the 93rd Mechanized Brigade which showed the captured tank passing by, the 22nd Mechanised Brigade’s flag can be seen flying from the top of the tank. In a photograph of the tank and some of the men who captured it the same flag can be seen. Another piece of footage showing the tank close up also appeared online on the 18th June. The video shows the front, rear and left side of the tank’s counter-FPV shell.
Right side of the captured Turtle Tank (via ArmyInform)
On the 19th June, the 112th Territorial Defense Brigade shared a short video showing the confused captured tank driver sat in the rear of an M113. On the 20th June, ArmyInform, the Ukrainian Armed Forces’ news outlet published a video on their YouTube channel giving us an up close look at the captured tank in detail during which Lt. Colonel Misyura describes it as a ‘marvel of modern Russian engineering’.
The Ukrainian Army were quick to capitalise on the propaganda value of finally capturing one of the Tsar Mangal (Tsar’s Barbaque) / assault sheds in tact, at the time of publication the video has over 650,000 views on YouTube alone.
Examining The Turtle
Since late April we have seen many variations on the ‘turtle tank’ theme, this example is certainly one of the least refined. Firstly, the tank does not appear to have been equipped with mine clearing kit as some of the other tanks have. However, it has been outfitted with what appear to be some sort of EW jammer to counter drones. Additionally, we can clearly see several UDSh smoke generators, held in a pair of brackets on either side of the shell. These have sometimes been misidentified as standard TM-62 anti-tank mines but the UDSh is a smoke generator which mimics the mine’s shape for training purposes. In this case they have been repurposed to enable the tank to create a mobile smoke screen. According to CAT-UXO the UDSh can be initiated electronically or manually and once ignited discharges smoke for 8-10 minutes. In the ArmyInform video it is also noted that the Kontakt ERA blocks seen on the tank’s glacis are empty.
Ukrainian troops pose in fron of the captured Turtle Tank (via social media)
The tank itself is a T-62M and according to Ukrainian sources the turret is fixed in place and the tank carried no ammunition for its main gun, making it largely defenceless in isolation from supporting elements. The counter-FPV shell is crudely assembled made up of a mish-mash of materials including metal sheeting which ranges from rusted bare metal to various worn paint colours, wire fencing and metal caging. There also appears to be rubber matting attached front and rear to help keep dust down. The top of the shell over the tank’s engine deck appears incomplete and may have been damaged. In the ArmyInform video which shows the area in-detail it is clear that the counter-FPV shell’s support struts were welded directly to the top of the hull and a number of large and small shrapnel holes in the shell are visible.
Top of the captured Turtle Tank (via ArmyInform)
It appears that between when the vehicle was captured and when the ArmyInform video was filmed the Ukrainian have removed the assemblies, which may have been EW jammers, on the front of the tank. Its unclear how long the adapted tank has been in service but their is evidence of past repairs and there are numerous spray painted slogans on its panels including ‘god is with us’, ‘Hero-Z’ and ‘154 RUS’ (a possible joke reference to Russian vehicle registration plates). If this is the case it might hint at the origins of the Russian crew. ‘154’ is a registration code for the Novosibirsk Oblast which is the home of the 41st Combined Arms Army. In one clip of the tank it also has what appears to be a stolen ‘1941’ sign (possibly from a Great Patriotic War memorial) attached to the rear of its shell.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
Ukraine’s family of unmanned surface vessels (USVs) continues to grow as the Security Service of Ukraine (SBU) have developed a Grad rocket-armed Sea Baby drone. The one-way or kamikaze USVs deployed by Ukraine in the Black Sea have been instrumental in engaging the Russian Navy, however, more recently new variants have emerged as Russia has begun to adapt and successfully engage the Sea Babies which in turn has seen the Ukrainians seek to adapt.
The first video of the rocket-armed USV in action recently emerged and the SBU has released some photographs which appear to show the drone in testing. On 22 May, an anonymous SBU source toldThe Kyiv Independent that the new drones have been used in combat “against Russian positions on the Kinburn spit,” a stretch of often fought over land on the coast near Mykolaiv. “This technological solution is already showing powerful results,” with the source adding “Our Sea Baby is not just a drone, but a multifunctional platform that is constantly being improved.” So far it seems the rocket-armed USV has been used against shore targets rather than to engage the Russian Black Sea Fleet, firing on a moving target from an unstable platform may be much more of a challenge. It remains to be seen if this USV variant has been put to use engaging vessels at sea. The Grad Sea Baby gives the SBU the useful ability to strike shore targets anywhere along the Russian-occupied Black Sea coast. From available imagery, at least three of the rocket-armed variants have been built.
Ukrainian Sea Baby surface drone in the Black Sea launches a volley of missiles towards Russian positions. pic.twitter.com/CQFaLKB9B6
— WarTranslated (Dmitri) (@wartranslated) May 22, 2024
The drones have been equipped with six 122mm Grad rocket launch tubes. The BM-21 multiple rocket launch system is used by both Ukraine and Russia. It’s size, ubiquity and relative cheapness makes it an obvious choice for mounting on the six meter long Sea Baby. The latest versions of the Sea Baby are reportedly able to carry 400 kg warheads over 500 miles at speeds of up to 48 knots.
The Grad rockets have a range of anywhere between 20 and 50 km depending on the type of rocket used. It’s unclear if a sea-based launch impacts the rocket’s range or accuracy but depending on sea conditions dispersion of the munitions is almost certainly affected. While accuracy may be impacted the rockets still give the Sea Baby a useful stand off capability, allowing the USVs to engage targets at a distance rather than having to make it physically all the way to the target to detonate its payload. How the rockets are aimed or the launcher is zeroed isn’t yet clear. The tubes do not appear to be adjustable for elevation as photos appear to show them fixed in place at a slight angle. Available photos show the launcher being tested ashore at a range, perhaps the tubes are bore sighted.
Sea Baby drones equipped with "Grad" rocket launchers. Now, these drones have become even deadlier for the russian fleet.
This isn’t the first time rockets have been fired from a Ukrainian USV, back in January 2024, footage of a USV firing smaller rockets at a Russian patrol vessel emerged. The rockets are believed to be RPV-16 or RPO-A thermobaric rockets. Some of this footage, along with other older video, was included in a short clip which showed off the rocket-armed Sea Babies. While this footage may not show a Grad launch Vasyl Malyuk, head of the SBU, has said during a press event with UNITED24, that “For the first time, the SBU used the “Sea baby” drone, equipped with the “Grad” rocket salvo fire systems, in December 2023,” adding that this represented a “new milestone in the history of sea battles.” Newsweekreported that the Sea Babies fitted with Grad launchers were paid for using United24 donations, with each USV estimated to be worth $221,000.
Another short video of the Grad rocket-equipped Sea Baby USV, likely filmed yesterday during a United24 event.
— Matthew Moss | Historical Firearms (@historicfirearm) May 24, 2024
Most recently we also saw another curious Ukrainian USV emerge, equipped with an improvised air-defense system with two repurposed AA-11 ARCHER (R-73) air to air missiles. The air defense USV emerged as Russian helicopters began to effectively engage the Ukrainian USVs. Given the rapid evolution of Ukraine’s USVs it would not be surprising to eventually see one equipped with an anti-ship missile, such as a small RBS-17.
Sea Baby equipped with six Grad tubes (via SBU)
The small cross section and speed of the Sea Baby drones allow them to infiltrate and approach Russian Black Sea vessels both at sea and in port. However, Russia has developed rudimentary tactics for successfully engaging them either with helicopters or with small arms and other defensive fire from vessels. A stand off capability, be it a USV equipped with unguided Grad rockets or an anti-ship missile, adds another dimension the Russians will have to adapt to. The Grad-armed Sea Baby is the latest indicator that Ukraine’s USV fleet is continuing to diversify to meet new threats and operational requirements.
An earlier version of this article first appeared at OvertDefense.com.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
For several weeks now we’ve tracked the interesting phenomena of Russia’s tanks equipped counter-FPV shells, known by many names – Tsar’s BBQs, assault sheds, Blyatmobiles or Turtle Tanks. These vehicles began to appear in April around Krasnohorivka but since then have spread to numerous other sectors. Most recently they have played a role in the Russian offensive towards Kharkiv.
They combine a number of features including the large characteristic sheet metal shells, electronic warfare systems to jam drone control frequencies to protect against first person view (FPV) suicide drones. They also often feature devices such as mine plough and rollers to enable them to act as breaching vehicles.
Since other last video there have been even more interesting variations on the ‘turtle tank’ concept and also a fair amount of imagery showing them being successfully engaged. Which raises the question: has the tide turned on the Turtle Tanks?
On the 8 May photos of a Russian T-72B3 being fitted with a counter-FPV shell were posted. OSINT account Naalsionoted that while the tank had tactical markings denoting the 68th Guards Tank Regiment, 150th Motorised Rifle Division, 8th Guards Combined Arms Army, Southern Military District, the original Telegram post said that the work was carried out by the 104th Separate Tank Battalion of the 7th Guards Airborne Assault Division. In the photos we can see the assembly of a frame projecting from the tank’s sides with slightly angled sheet metal being welded to the frame.
Ukraine’s Presidential Brigade shared some FPV footage of what may be another ‘Turtle Tank’ near Vuhledar. The resolution of the footage is low but the vehicle appears to have an EW module on top of its counter-FPV shell. Its unclear if the shell is solid s heet metal or if its is a mesh screen which covers the top part of the vehicle and has been shrouded in camouflage netting.
On 13 May, photographs of a pair of tanks fitted with shells were shared, with at least some of the work seemingly being completed in the field with a welder hooked up to a generator. The first vehicle has a visible framework and the sheet metal used to have surface rust. A possible second tank has a less angled shell and horizontally orientated metal sheeting. Markings visible on the first tank may suggest it tank belongs to the 3rd Motor Rifle Division’s 752nd Motor Rifle Regiment.
Also on the 13 May, the 3rd Assault Brigade claimed that the 3rd along with the 66th Mechanized, and 77th Airmobile Brigades had engaged Russian forces on the Kharkiv front and struck a ‘turtle tank’ with FPVs.
Footage of a recovered damaged ‘turtle tank’, which may be the tank which was immobilised during the initial assaults on the Kharkiv front, shows the tank’s shell badly damaged and its left-side track lost, however, its KMT-6 mine plough is still present.
The clearest imagery of of a knocked out ‘turtle tank’ which has appeared so far also emerged on 13 May. Three images taken by an observation drone show a T-62 which shares a numerous construction characteristics with the earlier ‘porcupine turtle’ seen on 5 May. It has similar protective grills made from cages which completely cover the outer metal sheets of the counter-FPV shell. However, its rear is not enclosed by sheet metal but a combination of sheets and grating.
The tank doesn’t have any visible electronic warfare equipment but is fitted with what appears to be a BTU-55 dozer blade mounting point (H/T – Ross) which is no longer present and not visible in the available imagery (although what appears to be a KMT-6 mine plough can be seen on the ground behind the tank). The tank clearly has signs of fire damage along its side and rear and the front portion of its shell as been blown inwards and warped, cause unclear though it may have been an artillery strike, ATGM hit or an FPV. Intriguingly, inside the shell appears to be an earlier pre-existing ‘cope cage’ shelter on the turret which does not not a part of the outer shell structure.
Further examples of tanks equipped with counter-FPV shells, which both sides increasingly refer to as ‘сарай’ or sheds, have been shared. Drone footage of a Russian T-72B3 equipped with a ‘shed’ was shared early on 14 May showing the vehicle on fire, with smoke billowing from its roof, and under attack by FPVs. The footage has reportedly been geo-located to Novovodyanoe, in the Luhansk region. Again the shell is made up of sheet metal with a rear hatch and an additional mesh roof screen. The tank has a broken track and one shot from the footage appears to show the vehicle surrounded by TM-62 anti-tank mines suggesting the vehicle entered a mine field. The vehicle does not appear to be fitted with a mine plough or roller.
Additionally imagery of another T-62-based ‘turtle tank’ were also shared, date and location unknown, but the now standard construction of a rough internal framework made from box metal and then sheet metal welded onto the frame. From the photos it appears it may be fitted with a mine plough. Only one side of the shell has been completed but there is also a small ladder welded onto the frame at the rear for access to the engine deck. Intriguingly, we can also see that the frame itself has been welded to the tank’s turret with two angled struts meaning that the tanks turret cannot be traversed at all.
On the 14 May, footage of another knocked out ‘turtle tank’ emerged showing a burning tank near Andriivka in Donestsk. The tank appears to have been part of an armoured assault which may have been halted by artillery fire. The tank appears to be a T-62 fitted with KMT-6 mine plough. The vehicle is on fire with a significant portion of its shell blown off on its right side. The video also shows an FPV drone striking the tank from the rear. A further video appears to show an FPV able to enter the rear of the shell. The Ukrainian Ministry of Defense attributed the destruction of the tank to ‘Javelins and FPV drones’ deployed by the 93rd Mechanised Brigade.
On the evening of 14 May, the 79th Air Assault Brigade shared video of another Russian attack in Novomykhailivka, in Donetsk. This showed several intriguing vehicles including a hybrid-turtle which had a layer of tyres under some cage armour and a camouflage net. [Additional footage here] Another brief shot showed a tank, with no visible main gun, moving across open ground. It is equipped with a KMT-7 mine roller and a counter-FPV shell/shed which is open fronted with no additional protection such as a chain curtain or wire cages. It appears the assault was met with both artillery and FPVs.
On the 15th, observation drone footage was shared of a badly damaged, burning ‘turtle tank’ which was destroyed by the Ukrainian 72nd brigade during a Russian attack in the Vuhledar sector. The date of the engagement is unconfirmed but the video shows the vehicle being destroyed in a spectacular explosion, likely due to a cook-off of ammunition.
On the 15 May another image of a converted T-72 in Donetsk emerged. Visible in the photo is a sheet metal counter-FPV shelter equipped with a layer of outer wire cages. A KMT-6 mine plough is fitted and a chain curtain protects the turret while providing decent visibility for the tank’s frontal arc. Additionally a commercial surveillance camera has been attached to the roof of the shell. An АЕК-902 smoke discharger is attached to the top of the shell and ERA blocks have been attached to the skirt and then enclosed partially by a wire screen.
On the 16 May, Russian military vlogger Large Caliber Trouble shared a series of videos which featured armoured vehicles fitted with counter-FPV shells. The first video showed an armoured assault with three vehicles with shells/sheds and one tank without. The footage, from an observation drone, is too low resolution to fully make out the configuration of the Turtles but its clear that the lead vehicle is equipped with a set of mine rollers. The assault column is bracketed by Ukrainian artillery fire and the lead tank is damaged and forced to turn back. While the second moves up and deploys smoke from an AEK-902 launcher the lead tank appears to take a direct hit to its rear, possibly from an FPV drone.
One of the tanks is called the ‘scorpion’ and is tasked with “clearing mines and identifying enemy points”. In a video showing the vehicle in action it is clear that the design is substantially different to previous ‘turtle tanks’ with no visible main gun, a fully enclosed front and an overhanding sheet metal rear awning. The vehicle is also equipped with a KMT-7 mine roller. In another post he described the vehicle as “a captured tank with a cut-off turret” that used “different building materials for [the] armor”. He claims it was “hit by 8 anti-tank guns and countless artillery shells.”
As always with these breakdowns we have to remember that we don’t have the full picture and the available imagery represents a fraction of what is happening on the frontline. As mentioned in the previous article/video the ‘turtle tanks’ are just as susceptible (if not more) to conventional means of knocking out tanks: mines, artillery and anti-tank guided missiles. It remains to be seen if a new trend is emerging that suggests that Ukraine is now increasingly capable of successfully countering the Russian assault sheds or if indeed the Turtle Tank will adapt again.
Updates
Update – 19/05/24:
On 18 May, the drone unit with the 3rd Assault Brigade shared further video of the ‘turtle tank’ that was first seen on 8 May. Filmed at the same time they stated that they came across an immobilised and abandoned ‘turtle tank’ and made several sorties to damage the vehicles engine and main gun.
Also on the 18 May, FPV camera footage from the 93rd Mechanised Brigade’s SIGNUM unit showed the ‘turtle tank’ first seen in footage shared on 14 May, near Andriivka in Donestsk. The first FPV can be seen to dive and strike the upper, right side of the shell. Another comes in low targetting the tank’s wheels while a third attacks the open hatch at the rear.
On the 19 May, several photos of hybrid-Turtles were shared by the Russian Ugolok_Sitha telegram channel showing T-62Ms with either a mine roller or a plough as well as camouflaged cope cages or Turtle-style counter-FPV shells made from gratings rather than solid sheet metal which have then been camouflaged with netting.
It emerged on 19 May that the ‘Scorpion’ showcased by Large Caliber Trouble three days earlier had apparently been successfully engaged. CyberBoroshnoshared a short clip showing the vehicle being struck by FPV drones and set alight. CyberBoroshno suggested the vehicle was an ‘atypical MT-LB’ but it is likely the tank, which had had its gun removed, was a T-62M.
The ‘Scorpion’ Turtle Tank about to be hit by an FPV (via social media)
On the evening of the 19 May, the 81st Airmobile Brigade shared drone footage of a pair of MT-LBs, both equipped with counter-FPV shells and both destroyed. The first MT-LB appears to have had its corrugated metal shell panels blown off and is burnt out. The second vehicle’s shell design is different with sheet metal panels and a cage frontage. The footage is said to have been filmed near the village. Belogorivka, Lugansk
Update – 20/05/24:
On 20 May, a Ukrainian telegram channel shared a video of another ‘Turtule Tank’, again with no visible main gun but with the usual trapezoidal sheet metal shell. The vehicle has a set of KMT-7 mine rollers and appears to strike two mines while moving at speed. A crew member is then seen running from the tank on foot as another explosion, possibly from an FPV, is seen on the left side of the tank. It is claimed the video was filmed on 18 May, near Novomykhailivka.
Also on the 20 May, the ADAM Tactical Group, shared a video of an FPV striking the rear of a moving vehicle which appears to have a counter-FPV shell. The low resolution of the footage makes it difficult to identify the vehicle. The construction of the vehicle’s shell is similar to that of the T-72B3 seen on the 14 May which had a pine green painted shell and supporting cross pieces visible on the shell’s top plates.
Update – 22/05/24:
On 21 May, CyberBoroshnoshared footage of a Russian ‘turtle tank’ damaged Marinka in the Donetsk region. The vehicle has seemingly already been disabled and the rear of the shell damaged. The shell has a secondary layer of bages on top of the sheet metal shell. The shell appears to have a considerable number of Kontakt-1 ERA bricks on the rear of its shell.
A Turtle Tank engaged by the ‘Rubizh’ Brigade (via social media)
Also on the 21 May, the 2nd battalion of the 4th Rapid Reaction Brigade “Rubizh” destroyed a turtle tank in Makeevka, Lugansk. The video shows the tank with heavy damage to its shell, with a fire on its right side. The very brief clip shows what may be a Bonus or 155 SMART round detonating above the tank while its stationary, alternatively it may be a close range engagement of the tank with an infantry anti-tank weapon.
Update – 23/05/24:
A video of an abandoned T-62BV enclosed in a hybrid ‘shell’ made from mesh being struck by FPVs was shared on the 23 May. Additionally, a telegram channel shared what was claimed to be a conversation between Russian combatants discussing the possibility of using rubber matting on ‘turtle tanks’. This post included a photograph of a very rustic looking ‘turtle tank’ which featured a mix of metal sheeting and fence wire enclosing the rear opening.
Photo of a rustic ‘turtle tank’ shared on 23 May, featuring a mix of steel sheeting and wire (via social media)
Also on the 23 May further footage of a ‘Turtle Tank’, first seen on 6 May, was shared showing the tank burnt out and completely destroyed after it was previously seen immobilised.
Update – 28/5/24:
On the 27 May, Ukraine’s 71st Jaeger Brigade shared further drone footage of a classic Turtle Tank with a low profile, well built counter-FPV shell. The Ukrainian Armed Forces press centre first shared video of this engagement on the 25 May, dating the footage to at least before the 25 May. The post did not state the location of the engagement, just that it was successfully engaged by FPVs. Two of which entered the rear of the shell and detonated near the turret ring. The tank appears to be equipped with mine rollers, fitting the Turtle Tanks’ conventional role as breachers.
Some recent footage of a Russian 'turtle tank' being destroyed by FPV drones of Ukraine's 71st Jaeger Brigade.
— Matthew Moss | Historical Firearms (@historicfirearm) May 28, 2024
Footage published in late May, with date and location unconfirmed, shows a BMP-2 fitted with a counter FPV shell being damaged by a munition being dropped by a drone. The vehicle already seems to have been mobility killed.
An interesting hybrid-Turtle was seen in footage shared by the Apachi FPV Strike Group on 27 May. It shows a tank with what appears to be a net over a frame work protecting the turret and two layers of spaced armour on its sides (see images below).
Also on 27 May, a single photograph of a T-72 being equipped with cage turret protection and horizontal slat protection on its sides was shared. It’s unclear what the vehicles finished form will by but other similar configurations have been covered with camouflage netting to make targetting more difficult for FPVs [Example].
Russia's Zvezda published a short video of Russian repair crews welding a mine plough on a #TurtleTank which is based on a damaged T-72 with its turret removed. There is a 2nd Turtle is in the background.
— Matthew Moss | Historical Firearms (@historicfirearm) May 28, 2024
On 28 May, Russia’s Zvezda Newspublished a short video of Russian repair crews welding a set of mine ploughs on a Turtle Tank (or as the report calls them Tsar-Mangal / Tsar’s barbecue). The report notes that the T-72 featured was damaged so its turret was removed and a counter-FPV shell added to create a APC capable of carrying troops. In the footage a second Turtle Tank can be seen in the background. The report did not state the units location.
A still from footage showing a transporter, carrying a Turtle Tank, which was involved in an accident in Belogrod (via social media)
On the evening of the 28 May, footage of a road traffic accident near Korocha, in the Belgorod region, showed several vehicles involved in a crash including a Russian tank transporter carrying a Turtle Tank (see above). The KamAZ tank transporter can be seen jackknifed and on fire. The tank can be seen fitted with mine ploughs and a trapezoidal counter-FPV shell, with a open front and an enclosed rear.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
In a recent article/video we looked at the proliferation of Russia’s unusual ‘Turtle Tanks’ which are protected by ad hoc, locally fabricated counter-FPV shells. Since then we’ve gotten a good look at several more Turtle Tanks and our first look at the driver’s point of view.
Footage, filmed on 27 April, of another Russian armoured assault into Krasnohorivka shows a column of four infantry fighting vehicles with what appear t o be counter-FPV shelters following a tank with a ‘cope cage’
On the 29 April, a Ukrainian Telegram channel posted a short video of a ‘Turtle Tank’ attack in the Bakhmut direction, noting that [machine translated]: “the equipment is stupidly scalded with metal, from 5 units it was possible to destroy a tank and an armored personnel carrier. A lot of FPV was spent on one tank. Everyone laughs at their construction of barns, but in fact they work like hell.” The tank appears to have a box like shelter with a sloped forward roof over its gun and glacis. As seen in earlier videos the tank is leading a column of armoured vehicles during the assault, clearing a path for them. It appears to detonate a mine with its mine plough and retreats.
At the start of May a pair of T-62s with hybrid counter-FPV shelters were seen in photos taken by a UAV, location unconfirmed. These images illustrate the blurring of the lines between ‘cope cage’ equipped tanks and the ‘turtle tanks’. Like the earlier turtle tanks they’re fitted with EW sets & KMT-6 mine ploughs but do not have shells made entirely from sheet metal. Instead, they appear to have used chainlink and gratings, one piece of which appears to have Kontakt (explosive reactive armour (ERA) mounted. One of the vehicles appears to have been used to transport supplies. One T-62 has broken tracks, the other top damage.
A hybrid combining elements of the Turtle Tank with that of earlier ‘cope cages’ (via social media)
Around the same time the Ukrainian 79th Air Assault Brigade shared video of Russian attacks near Novomykhailivka, in Donetsk, the footage included a brief clip of a ‘turtle tank’ with a small forward opening, camouflage over its shell frame and no sign of a mine plough or roller fitted. On 2 May, the 33rd Mechanized Brigade shared footage from thermal camera-equipped FPV drones showed a Russian tank being used to transport troops, the profile of the counter-FPV shelter is visible but the low definition of the thermal footage makes it difficult to analyse its construction. The vehicle, however, appears to be equipped with a mine plough and possibly an EW module.
Also on 2 May, Ukrainian drone fundraiser Teoyaomiquushared a video of a Russian assault near Ivanivske which shows a pair of Russian armoured vehicles with counter-FPV shells, one of which deploys a smoke screen. The 1st Assault Battalion of the 5th Separate Assault Brigade also shared footage from the Russian assault showing the shell-equipped vehicles.
On the 5 May a short video was posted by a Russian combatant which showed an entirely enclosed MT-LB with steel plates surrounding the top of the vehicle and its wheels. It also has an additional mesh roof cover to add additional top protection. Two cutouts in the side and one in the front for the driver also have mesh covers to give some visibility. On the same day video of a destroyed BTR-MDM which had been encased in a counter-FPV shelter was shared, showing the rear of the vehicle enclosed.
An evolved Turtle Tank with added cages on its superstructure (via social media)
Perhaps the most striking evolution of the ‘Turtle Tank’ appeared on 5 May, a tank completely enclosed except for a small gap at the front. Protective grills made from cages completely cover the outer metal sheets of the counter-FPV shell. One Russian telegram channel likened it to a rolling ‘poultry farm’. The vehicle also has a KMT-7 mine roller. Additional video of the porcupine-like tank gives us the first look at what it is like driving one of these ‘turtle tanks’, with his hatch open the driver has an almost clear view ahead (apart from the solid awning above him and the partial grill cage protection to his front) but no view to the left or right front quarters of the tank.
A Turtle Tank driver using a camera feed to steer (via social media)
Several days later footage from inside what appears to be the same tank shows the driver steering by video monitor. The readout on the monitor suggests the video’s resolution is 4K H.265 but the field of view appears limited, with the camera seemingly positioned on the shell’s awning looking down between the KMT-7’s two rollers. The system used is from Russian automotive accessory company Eplutus and appears to be one of their rear view camera monitors.
Another piece of UAV footage shows another ‘turtle tank’ with a much boxier shell. It again has all of the major features seen in earlier examples: a sheet metal shell which encloses most of the top part of tank, a set of mine rollers and a EW jammer module on the roof. Some sources suggest the footage was filmed near Bilohorivka, in Luhansk. It’s unclear when the footage was filmed but the vehicle appears stationary with access grates to the tank’s rear deck left open.
The 7 May saw evidence of the proliferation of t he ‘turtle tank’ concept with Russian social media sharing photographs of a ‘Turtle Tank’ fabricated by the Russian 40th Naval Infantry Brigade, these indicate that the concept is continuing to proliferated, perhaps without any central influence. The tank is encased in a counter-FPV shelter made up of three large metal sheets, a poorly fabricated angled roof which slopes at the rear with a flat top and a wire mesh slopping front piece. Additionally on the floor there appears to be a chair curtain similar to those seen on other ‘turtle tanks’. The rear has an extended deck and appears to be enclosed. A skirt of Kontakt-1 ERA has been roughly added around the skirt. As with other Turtle Tanks the ‘V Turtle’ is equipped with what appears to be an RP-377 electronic warfare jammer. It also has a KMT-6 mine plough fitted. A large white V has been painted on the sides of the shell and Russian flag rings added to the barrel.
A Turtle Tank built by the 40th Naval Infantry Brigade (via social media)
On 10 May, footage of an FPV drone attacking an immobilised ‘turtle tank’ emerged. The tank is again enclosed by a counter-FPV shell and has a mine plough. The feed from the drone also suffers from some interference as it approaches the vehicle suggesting that an EW module may be present nearby, perhaps aboard the tank. However, it appears that a mine has damaged the tank’s tracks and the vehicle has been abandoned allowing an FPV to attack via an open rear hatch. The footage was reportedly filmed during the first day of the new Russian offensive towards Kharkiv. This again shows that not only is the concept proliferating but also that the ‘turtle tanks’ are still vulnerable to conventional anti-tank weapons like mines.
Also on the 10 May, the Russian military channel, Large Caliber Trouble, shared a photo of the porcupine turtle tank which had been damaged by FPV strikes showing the cage bars bent and some holes in the counter-FPV shell. The post claims that the tank was “attacked by 40 kamikazes, [but] thanks to electronic warfare, most of them fell and only 8 FPVs were able to cause damage.” The condition of the vehicle after the engagement is unknown. The suggestion that a large number of FPVs attacked the tank supports the earlier Ukrainian comments about ‘a lot of FPV [being] spent on one tank.’
A ‘turtle tank’, possibly a T-80, seen on the eastern front on the first day of the Russian Kharkiv offensive (via social media)
A key question is how can the Turtle Tanks be defeated? Basically just like any other tank can be: anti-tank guided missiles with tandem warheads, dense mines belts, direct hits by artillery, use of multiple FPV drones to damage and breach the shell with additional drones to exploit gaps made.
We will probably see further proliferation of the ‘turtle tanks’ in coming weeks but with time the Ukrainians will probably find ways to engage these protected tanks more effectively, as is so common in war there will probably be a continued evolution of measure and counter-measure.
Update – 13/5/24:
On the 8 May photos of a Russian T-72B3 being fitted with a counter-FPV shell were posted. OSINT account Naalsionoted that while the tank had tactical markings denoting the 68th Guards Tank Regiment, 150th Motorised Rifle Division, 8th Guards Combined Arms Army, Southern Military District, the original Telegram post said that the work was carried out by the 104th Separate Tank Battalion of the 7th Guards Airborne Assault Division. In the photos we can see the assembly of a frame projecting from the tank’s sides with slightly angled sheet metal being welded to the sides.
Ukraine’s Presidential Brigade shared some FPV footage of what may be another ‘Turtle Tank’ near Vuhledar. The resolution of the footage is low but the vehicle appears to have an EW module on top of its counter-FPV shell. Its unclear if the shell is solid sheet metal or if its is a mesh screen which covers the top part of the vehicle and has been shrouded in camouflage netting.
On 13 May, photographs of a T-80U with shell were shared with at least some of the work seemingly being completed in the field with a welder hooked up to a generator. The outer framework of the shell is visible and the sheet metal used seems to be well rusted. Markings visible may suggest the tank belongs to the 3rd Motor Rifle Division’s 752nd Motor Rifle Regiment.
Also on the 13 May, the 3rd Assault Brigade claimed that the 3rd along with the 66th Mechanized, and 77th Airmobile Brigades had engaged Russian forces on the Kharkiv front and struck a ‘turtle tank’ with FPVs.
Footage of what may be the ‘turtle tank’ which was immobilised during the initial assaults on the Kharkiv front shows the shell badly damaged and its left-side track lost its KMT-6 mine plough is still present however.
The clearest imagery of of a knocked out ‘turtle tank’ which has appeared so far also emerged on 13 May. Three images taken by an observation drone show a T-62 which shares a numerous construction characteristics with the earlier ‘porcupine turtle’ seen on 5 May. It has similar protective grills made from cages completely cover the outer metal sheets of the counter-FPV shell. However, its rear is not enclosed by sheet metal but a combination of sheets and grating.
The tank doesn’t have any visible electronic warfare equipment but is fitted with what appears to be a BTU-55 dozer blade mounting point (H/T – Ross) which is no longer present and not visible in the available imagery (although what appears to be a KMT-6 mine plough can be seen on the ground behind the tank). The tank is clearly has signs of fire damage along its side and rear and the front portion of its shell as been blown inwards and warped, cause unclear though it may have been an artillery strike, ATGM hit or an FPV. Intriguingly, inside the shell appears to be an earlier pre-existing ‘cope cage’ shelter on the turret which does not not a part of the outer shell structure.
Update – 14/5/24:
Further examples of tanks equipped with counter-FPV shells, which both sides increasingly refer to as ‘сарай’ or sheds. Drone footage of a Russian T-72B3 equipped with a ‘shed’ was shared early on 14 May showing the vehicle on fire, with smoke billowing from its roof, and under attack by FPVs. The footage has reportedly been geo-located to Novovodyanoe, in the Luhansk region. Again the shell is made up of sheet metal with a rear hatch and an additional mesh roof screen. The tank has a broken track and one shot from the footage appears to show the vehicle surrounded by TM-62 anti-tank mines suggesting the vehicle entered a mine field. The vehicle does not appear to be fitted with a mine plough or roller.
Additionally imagery of another T-62-based ‘turtle tank’ were also shared, date and location unknown, but the now standard construction of a rough internal framework made from box metal and then sheet metal welded onto the frame. From the photos it appears it may be fitted with a mine plough. Only one side of the shell has been completed but there is also a small ladder welded onto the frame at the rear for access to the engine deck. Intriguingly, we can also see that the frame itself has been welded to the tank’s turret with two angled struts meaning that the tanks turret cannot be traversed at all.
Update – 15/5/24:
On the 14 May, footage of another knocked out ‘turtle tank’ emerged showing a burning tank near Andriivka in Donestsk. The tank appears to have been part of an armoured assault which may have been halted by artillery fire. The tank appears to be a T-62 fitted with KMT-6 mine plough. The vehicle is on fire with a significant portion of its shell blown off on its right side. The video also shows an FPV drone striking the tank from the rear.
On the evening of 14 May, the 79th Air Assault Brigade shared video of another Russian attack in Novomykhailivka, in Donetsk. This showed several intriguing vehicles including a hybrid-turtle which had a layer of tyres under some cage armour and a camouflage net. [Additional footage here] Another brief shot showed a tank, with no visible main gun, moving across open ground. It is equipped with a KMT-7 mine roller and a counter-FPV shell/shed which is open fronted with no additional protection such as a chain curtain or wire cages. It appears the assault was met with both artillery and FPVs.
On the 15th observation drone footage was shared of a badly damaged, burning ‘turtle tank’ which was destroyed by the Ukrainian 72nd brigade during a Russian attack in the Vuhledar sector. The date of the engagement is unconfirmed but the video shows the vehicle being destroyed in a spectacular explosion, likely due to a cook-off of ammunition.
On the 15 May another image of a converted T-72 in Donetsk emerged. Visible in the photo is a sheet metal counter-FPV shelter equipped with a layer of outer wire cages. A KMT-6 mine plough is fitted and a chain curtain protects the turret while providing decent visibility for the tank’s frontal arc. Additionally a commercial surveillence camera has been attatched to the roof of the shell. An АЕК-902 smoke discharger is attached to the top of the shell and ERA blocks have been attached to the skirt and then enclosed partially by a wire screen.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
The U.S. government announced, on 9 April, the transfer of enough small arms to equip a brigade to the Ukrainian Armed Forces. The weapons originate from the arms shipments that the US Navy and allies have seized in recent years thousands of weapons and millions of rounds of ammunition which have been seized in recent years from Iranian shipments to the Houthis in Yemen.
Thousands of illicit weapons interdicted by USS Monterey, May 2021 (U.S. Navy)
In a statement U.S. Central Command noted that the arms and munitions had been “originally seized by U.S. Central Command and partner naval forces from four separate transiting stateless vessels between 22 May 2021 to 15 Feb 2023.” The transfer to Ukraine includes 5,000 AK-pattern rifles, RPG-7 rocket launchers, sniper rifles and machine guns. This is not the first transfer of seized small arms to Ukraine with a previous transfer occurring in October 2023, when 1.1 million rounds of an unspecified 7.62mm calibre ammunition were transferred. That transfer was made up of ammunition seized from a single dhow on 9 December, 2022.
On Jan. 7. U.S. Navy seized 2,116 AK-pattern rifles including AKS20U & Type 56-1s from a fishing vessel en route from Iran to Yemen. (U.S. Navy)
On 6 July 2023, the U.S. Justice Department filed a forfeiture action for: “over 9,000 rifles, 284 machine guns, approximately 194 rocket launchers, over 70 anti-tank guided missiles and over 700,000 rounds of ammunition” these were reported to have originated from two dhows in 2021 and two from 2023. This suggests a discrepancy in the number of seized weapons detailed by the forfeiture action and the number subsequently handed over to Ukraine. This perhaps suggests that either a further transfer will follow with the remainder or a substantial portion of the arms and ammunition were not suitable for transfer for some unknown reason.
In terms of the types of small arms being transferred we can get a pretty good idea from examining the previously released images of the arms seized over the last couple of years. These include:
Chinese Type 56-1 7.62x39mm AKs
Russian VEPR AKS20U [VPO-158N-06] in 5.45x39mm (these will likely be useful for support troops and vehicle crews)
PK-pattern general purpose machine guns or Iranian and Chinese origin
Russian Kornet and Iranian Dehlaviyeh anti-tank guided missiles
Chinese Type 69 and Iranian RPG-7 clones
Iranian AM-50 12.7x99mm anti-materiel rifles
Chinese SVD clones
Imagery of seized ammunition suggests 7.62x54mmR, 7.62x39mm, and 12.7x99mm
US Central Command noted that:
“The munitions were being transferred from the IRGC to the Houthis in Yemen in violation of the United Nations Security Council Resolution 2216. U.S. CENTCOM is committed to working with our allies and partners to counter the flow of Iranian lethal aid in the region by all lawful means including U.S. and U.N. sanctions and through interdictions.”
The U.S. Justice Department confirmed in a statement that the transfer took place on 4 April, also explaining that the transfer required a civil forfeiture ruling against seized arms and ammunition which enabled the hand over. Attorney General Merrick B. Garland said: “The Justice Department will continue to use our legal authorities, including forfeiture, to support the Ukrainian people in their fight.”
French naval forces interdicted more than 3,000 rifles and 578,000 rounds of ammunition, Jan. 2023 (US CENTCOM)
Most recently, in February 2023, the U.S. Navy reported that “more than 5,000 weapons and 1.6 million rounds of ammunition” had been seized since the beginning of the year. In 2021 alone, approximately 9,000 weapons were intercepted on their way to the Houthis. This suggests that if the weapons have not already been disposed of then there a further stocks of seized weapons to draw on for transfers to Ukraine. It remains to be seen if and when further transfers of seized weapons will be made and when the transferred weapons will begin to be spotted in the field.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
In late August 2023, a surprising weapon turned up in Ukraine. It appears that Spain provided Ukraine with an unknown number of 5.56x45mm CETME-L rifles. The rifles were spotted during a parade in Kyiv with an entire company of Ukrainian Border Guards seen equipped with the rifles. I’ve delayed writing this article/video in anticipation of them appearing again but there’s been no sign of the CETME-Ls since the parade.
The parade, held on 23 August 2023, in Kyiv’s Sofia Square celebrated the 32nd anniversary of Ukrainian independence and saw at least 25 members of Ukraine’s Border Guards parade with the rifles. The personnel are believed to have been part of either the 8th or the 9th border detachments who are assigned to the Belarusian border region.
Ukrainian Border Guards with CETME-Ls, August 2023 (DPSU)
Spain developed the CETME-L in the early 1980s, to replace the CETME Model C. Entering service in 1986, it uses a roller-delayed gas blowback, check out our earlier video disassembling a CETME-L here. Issues with quality control during manufacturing and quirks of the design led to the Spanish military seeking to replace the CETME-L by the mid 1990s. The HK G36E was selected but the L remains in limited service with significant quantities held in storage.
Ukrainian troops training in Spain in the summer of 2023, have been seen equipped with CETME-Ls but it remains curious that Spain would provide the rifles as aid to Ukraine. While the rifles had a short service life due to reported reliability issues, with approximately 100,000 manufactured between 1986 and 1991 and since largely replaced by G36s there is likely a substantial number in store and available for transfer.
CETME-L (Matthew Moss)
The CETME-L, despite a decent design on paper, was hampered by quality control issues which led to reliability problems. The rifle’s magazine housing also only allows feeding from steel magazines. While in theory they will feed from STANAG magazines, the magazine housing is optimised for proprietary Spanish magazines (with a different follower and feed lip design) with the magazine seated at more of an angle. The rifles also reportedly favour hotter, higher pressure ammunition. These factors may explain why the CETME-Ls have not been seen in the field with the Border Guards preferring to continue issuing AK-74 pattern rifles to personnel on the front line. The rifles seen in Kyiv may have been drawn from central stores solely for the parade.
We approached both the Spanish Ministry of Defence and the Ukrainian Border Guards for further information but no addition comment has been received. The Spanish Ministry of Defence directed us to an August 2023 press release which detailed Spanish assistance to Ukraine’s Border Guards which does mention “light weapons with their ammunition”.
Ukrainian Border Guard with CETME-L, August 2023 (DPSU)
The Spanish press, quoting confidential sources, reported that between 1,000 and 2,000 rifles were transferred. It is also reported that the rifles were never previously issued and that they are being used by rear echelon Ukrainian personnel. This frees up more reliable weapons, like AK-74s and UAR-15s, for frontline use. At the time of publication examination of various DPSU (Ukrainian Border Guard) social media channels doesn’t indicate any signs of further use of CETME-L rifles, even with rear echelon personnel.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
One of the rarer Russian anti-armour weapons to surface during the ongoing war in Ukraine is the RPG-16. The RPG-7’s big brother was developed in the late 1960s and entered service in the early 1970s. It was predominantly developed for Russia’s airborne forces, the VDV, but also saw issue to Spetsnaz units.
The RPG-16 is characterised by its larger diameter tube which can fire a 58mm (2.3 inch) PG-16 rocket-propelled grenade. Unlike the RPG-7s munitions the PG-16 slides flush inside the launcher, while this limits the volume and types of warhead the RPG-16’s ammunition can carry it provides improved accuracy and slightly increased range. The PG-16 is a fin-stabilised high explosive anti-tank (HEAT) round with a rocket booster which propels it at a maximum velocity of 350 metres per second. The rocket weighs around 2.1kgs and has a maximum range of 800 metres, though practical engagement range of vehicles is closer to 300 metres. It can penetrate up to 300mm (12 inch) of rolled homogenous armour.
An RPG-16 seen in a Russian news report, June 2023 (Russia 1)
The RPG-16 can only fire the PG-16 round and following its adoption in the early 1970s it has been surpassed by other anti-armour weapons which have entered Russian service and by the development of more capable PG-7 series warheads. The launcher weighs 12.4 kg (27 lbs) [compared to the 7 kg (15.4 lb) of the RPG-7] when loaded and is 110cm (43.5 in) long but can be broken down into two parts: the rear tube with venturi and the forward tube and fire control group. Unlike the smaller RPG-7 it has a bipod near the muzzle and a grip area on the fire control group, it does not have a second, rear pistol grip.
A reported 120,000 were produced with manufacture continuing into the late 1980s. It had been thought that the RPG-16 went out of Russian service in the early 2000s but evidently some have been drawn from stores and have been used in Ukraine. The RPG-16 was reportedly used against fixed positions during the Soviet war in Afghanistan and may now be pressed into the same role in Ukraine.
It appears from available imagery that the RPG-16 began to be issued in early 2023. Early March 2023 saw Russian state-news outlet RIAshared a report featuring combatants of the 76th Guards Air Assault Division firing small arms and RPGs in woodland. One of the RPGs fired was an RPG-16.
Russian combatant firing an RPG-16, December 2023 (via social media)
In late April, stills from a video of troops said to be with the 98th Guards Airborne Division featured an RPG-16 being fired near Dibrova were shared. I’ve been unable to find the original footage. In June, one of the launchers appeared in a Russia-1 news report featuring Russian forces near Avdiivka, Donetsk Oblast.
On 26 November, a Russian combatant shared a photograph of an RPG-7 and an RPG-16 next to one another, reportedly taken in a depot or armoury. Two days later on 28 November a short clip of marines from the Russian 40th Naval Infantry Brigade was shared showing an RPG-16 in action, location unknown, possibly near Pavlivka.
A week later, on 3 December a video featuring a pair of Russian combatants from the Otvazhnye (Brave) Group, firing an RPG-7 and an RPG-16 was posted on telegram. The footage was probably filmed in near Kreminna where the unit was reportedly active.
Russian combatant poses with an RPG-16 and AK-12, January 2024 (via social media)
On 13 December, a mobilized Russian combatant shared a post on Telegram describing his experiences at the front. He mentions that due to a lack of infantry anti-armour weapons with sufficient range to reach Ukrainian AFVs standing off and firing on their positions his unit began issuing RPG-16s. In late January, two photographs of Russian troops in a trench, location unknown, posed with an RPG-16, and some unrelated RPG-7 munitions.
From the limited imagery available it seems that the RPG-16s have been again issued to largely airborne units, however they have also been seen with Russia’s naval infantry. Exactly why the RPG-16 has returned to service is unclear, as by one Russian combatant suggested, it may be that the greater range offered by the RPG-16 enables engagement of distant targets, another potential reason might be Russia’s desire to use up existing reserve stocks of munitions.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
Specifications:
Calibre: 58.3 mm Length: – Assembled: 1,104 mm – Disassembled: 645 mm Weight: – Unloaded with optical sight: 10.3kg – Loaded: 12.4kg Velocity: – Initial: 130 m/s – Maximum: 350 m/s Effective range: 800 m Armour Penetration: +300 mm
Bibliography:
Jane’s Infantry Weapons 2014-15, R.D. Jones & L.S. Ness (2014)
A Ukrainian engineer and fabricator, Іван Савельєв/Ivan Saveliev, has designed and built an interesting wheeled mount for the Mk19 automatic grenade launcher. The mount was recently seen in a video posted to TikTok by a member of 4th Rapid Reaction Rubizh Brigade’s 3rd Battalion Svoboda. The video was posted on the 10 November and shows the mount being demonstrated in camp. There’s a long history of Russian machine guns like the Maxim PM1910, SG-43 and DShK having wheeled mounts or carriages. The new mount for the Mk19 could be seen as a descendent of these.
A Mk19 on the wheeled mount (via social media)
The first MK19 Mod IIIs arrived from the US in late January 2022, as it looked increasingly likely that Russia would invade. Since then they have proliferated and are widely used by the Ukrainian armed forces.
A Mk19 on the mount with wheels removed (via social media)
Saveliev has developed a range of mounts for various support weapons including machine guns, auto-cannons and mortars. He first shared imagery of the wheeled mount for the Mk19 in mid-June posting a photograph showing a Mk19 elevated on one of the mounts. Five months later, on 23 October, Saveliev shared a series of detailed photos of the mount. He noted that the mount could allow the Mk19 to be fired at ‘increased vertical angles’. This is very useful for long range, indirect fire. The M2 heavy machine gun could also be used with the wheeled mount as the mount mimics the mounting points of the M3 tripod, which both the Mk19 and M2 are used with.
Above & Below: Close-ups of the mount (via social media)
The mount has a pair of handles at the muzzle end to allow the weapon to be pulled by two men. The elevation of the Mk19 can be adjusted by an elevation wheel which uses a long threaded bar (or worm pinion/screw) to move the mounting arm forward and back, lowering and raising the weapon. In the video posted by members of the 3rd Battalion Svoboda it is suggested that elevations of 60 or more degrees is possible. Windage can be adjusted by a pair of wheels either side of the rear of the mount.
The mount has a pair of wheels with pneumatic tires which can be removed allowing the weapon to be grounded in the mount. However, this looks to be a fairly unstable firing platform due to the narrow base the mount offers compared to the Mk19’s standard tripod. Despite the Mk19’s relatively low recoil the mount would probably have to be well bedded in to achieve accurate fire and prevent it from potentially toppling. There is no mount for the weapon’s belt box.
According to various comments on Saveliev’s posts about the mount individuals from a number of Ukrainian brigades including the 47th Mechanised and 5th Assault brigades are reportedly interested in the mount.
I haven’t yet been able to find any imagery of the mount being used in the field or of a Mk19 being fired from one so its difficult to know how useful it is in battlefield conditions. The major benefit, however, is increasing the Mk19’s portability. Weighing in at 77.6 lbs (35.2 kg) the Mk19 (without the M3 tripod which adds 44 lbs (20 kg)) is heavier than its Russian counter-part, the AGS-17. This makes moving it across broken terrain a difficult task, the wheels might help
Special thanks to Weapons Illustrated who has been tracking this mount and assisted with this video/article.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
The Armourers Bench
