Footage of Brimstone anti-armour missiles being launched in Ukraine surfaced for the first time on 12 May but recent footage points to Ukraine now potentially deploying the Dual Mode Brimstone 2. In this updated video we look at what the missile is capable of, how they came to be in Ukraine and how they have been deployed.
A still from footage of a launch from the ‘Brimstone technical’ with the missile potentially being a Brimstone 2 with a translucent seeker head, shared online in early November (via Social Media)
In our earlier video on Brimstone use in Ukraine we examined the system’s capabilities, history and the new ad-hoc ground launch platforms in use. In this updated video we look at evidence of Brimstone use over the summer and autumn of 2022 and discuss the transfer of Brimstone 2 and its capabilities.
Brimstone 2 missiles being loaded aboard an RAF transport aircraft at RAF Brize Norton – perhaps around 48 missiles appear to be on board. (UK MoD)
The UK Ministry of Defence publicly confirmed the transfer of ‘Brimstone 2 Operational Missile Dual Mode’ to Ukraine on the 27 November with a short video. Dual Mode refers to a variant of the missile which can be used both as a ‘fire and forget’ system but also have a ‘man-in-the-loop’ capability which was originally developed as part of an Urgent Operational Requirement for a low-collateral damage weapon. According to MBDA Brimstone 2 has “an overall increase in performance with improvements in range and engagement footprint”, this is enabled by improved seeker, improvements to the missiles airframe with a more modular design and software updates.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
Recently a very interesting document surfaced in an online auction, while it eventually sold for more than I could afford, I thought it was worth sharing some of the interesting images of the document that were shared in the auction.
Front page of a draft contract for ammunition, drawn up between the British Purchasing Commission and the Western Cartridge Co. (via War-Office)
The document is a draft of a contract to order .303 ammunition from the Western Cartridge Company, part of the Olin Corporation. Before the US passed the Lend-Lease Act, in March 1941, which cleared the was for greater material assistance from the US to Britain the British Purchasing Commission was tasked with procuring arms, ammunition and materials from US companies.
First page of the contract (via War-Office)
The document, originally drawn up in December 1940 called for a mind-blowing 75 million cartridge per month. To do this the Western Cartridge Company needed to expand its production capacity. The contract deals with the intricacies of expanding the company’s manufacturing base and how this expansion would be paid for.
A still from a British newsreel c.1942, showing a British ammunition factory.
The contract states that the .303 ammunition would be for aircraft, for use in weapons like the belt-fed .303 Browning machine guns used in the RAF’s bombers and fighters. The contract mentions that a total of 750 million rounds are required. 20% of these could be requested, at a month’s notice, to be tracer rounds.
It is fascinating to see not only the typed and stapled amendments but also the handwritten notes in the contract’s margins which change quantities, dates and other details. The ammunition is described in ‘Exhibit F’ of the contract as being ‘MkVII .303’. The contract also mentions that the Western Cartridge Company could use its own smokeless powder for the first 100 million rounds and subsequently either their own or powder from Du Pont or the Hercules Powder Company. This means that the ammunition was probably MkVIIIz, as the cartridges did not use Cordite. It is unclear whether the projectiles to be used in the Western Cartridge Co. cartridges used the MkVIIIz boat tail .303 projectile.
A still from a British newsreel c.1942, showing .303 ammunition being tested at a British ammunition factory. The ammunition is being tested in a Vickers Gun, a Bren LMG, a Vickers K and a .303 aircraft Browning
The Western Cartridge Company was not the only US ammunition manufacturer to produce .303. Winchester, another Olin Corporation manufacturer, and the Peter’s Cartridge Company also produced .303 MkVIIIZ.
Sadly we don’t have the rest of the document to examine but these pages offer a really interesting insight into how Britain was procuring ammunition for various weapons during the early part of the war when the situation looked increasingly desperate.
Pages from the March 1941 contract (via War-Office)
A subsequent auction listing for ‘Contract No. A-1562. Requisition No. U.S.233. Dated March, 1941’ also calls for a substantial amount of ammunition, some 400,000,000 rounds. The 42 page contract refers to the ammunition as MkVII and notes the use of Hercules Hivel 300 powder and describes it as ‘S.A. Ball .303 with American modifications dated 7 November, 1940’. The March 1941 contract also states that depending on testing it could be used for ground or air use.
If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!
Bibliography:
The .303 British Service Cartridge, R. Tebbutt, (source) Original WW2 British Contract for Manufacture of .303 Ammunition by Winchester, Dec. 1940 eBay/War-Office (source) Original WW2 British Contract for Manufacture of .303 Ammunition by Winchester, Mar. 1941 eBay/War-Office (source)

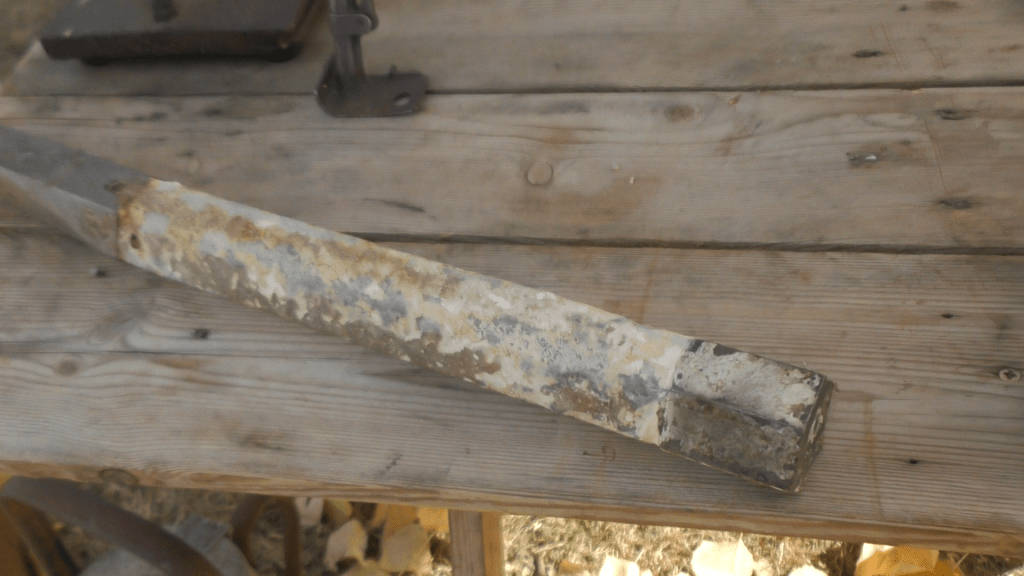

At We Have Ways Festival 2022 I ran into friends from the Dunkirk 1940 Museum and they were displaying an interesting piece – a British 4lb Incendiary Bomb which had reportedly been dropped on Dresden in February 1945.
The bomb is believed to have been buried in backfill when the city was rebuilt after the war and then recovered during later construction.
I’ve included in this video some footage from a 1942 New Zealand film demonstrating the capabilities of incendiary bombs which features a British 4lb bomb, similar to the one displayed by the museum, and some contemporary footage of the bombing of Dresden to illustrate what terrible weapons incendiaries could be.
Bibliography:
Footage:
Staff Film Reports No. 46: Dresden Bombing Footage, US Army Signal Corps’ Army Pictorial Service
Incendiary Bomb (1942), New Zealand Archives, (source)
Further information on British incendiaries:
British Explosive Ordnance – Cluster Projectiles Part 2 (source)
The Development of British Incendiary Bombs during the Period of the 1939-45 World War, Ministry of Supply, (source)
_____________________
If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!
On 12 May video of what appears to be a test launch of Brimstone Missiles in Ukraine surfaced online. A containerised launch platform can be seen launching a salvo of three missiles. The footage shows what appears to be a repurposed commercial vehicle, such as an IVECO Daily or Mercedes-Benz Sprinter box van. The van appears to have a series of rails mounted inside the cargo area which may have something similar to a Cobham triple launch rail fixed to them. It could be described as a sort of very advanced technical. It is unclear when or where the footage was filmed.
Brimstone salvo being launched from a repurposed commercial vehicle (via Social Media)
In April, the UK Ministry of Defence confirmed the supply of Brimstone missiles to the Ukrainian Armed Forces. It was announced that these would be adapted for surface launch for use against ground targets. Before Russia’s invasion of Ukraine in February, the UK government had been in talks to provide the maritime variant of of the missile (Brimstone Sea Spear) to the Ukrainian Navy and there was speculation that this would be the variant sent to Ukraine. However, on 25 April, Defence Minister Ben Wallace told the UK Parliament that “if we do provide Brimstone, we will look to provide it for the land, using stock that we already hold, but not as yet for the sea.” A day later, on 26 April, the UK’s Armed Forces Minister James Heappey told Parliament that “such is the speed with which our technicians are now working and so effective is the partnership with industry that I am pleased to say that that has been moved forward. It is necessary to inform the House that we will be providing Brimstone in the next few weeks.”
Brimstone is an advanced, rocket-powered, radar-guided weapon which can seek and destroy armoured targets at long ranges with high precision. Developed by in the late 1990s it was designed to be fired from aircraft and entered service with the Royal Air Force in 2005, seeing action in Iraq, Afghanistan Libya and Syria. The missile’s manufacturer MBDA has continued development of the weapon with ground-based and maritime variants designed and proposed. Brimstone uses a 94 Ghz millimetre wave (mmW) active radar homing seeker and a sophisticated guidance system which can differentiate and prioritise targets. The missile delivers a tandem shaped charge to destroy armoured targets at ranges varying from 12 to approximately 20km depending on launch platform and conditions and the variant of missile. Brimstone is capable of firing a salvo of missiles which will then fly in parallel before striking their targets in unison. This may be what is seen in the video. Brimstone is a fire and forget missile with the missile able to targeted at a designated killbox to then engage highest value targets it detects.
Diagram showing the layout of Brimstone (via Think Defence)
On 6 May the first evidence of Brimstone’s presence in Ukraine was provided by a series of photographs of the remnants of a Brimstone 1 missile. The recovered tail section of the missile bore a sticker denoting the surviving component as being manufactured in September 2001. Subsequent photographs of fragments from another missile, which perhaps self destructed, surfaced online on 11 May. These suggested that this Brimstone 1 was manufactured in around May 2001.
#Ukraine: Another UK-supplied Brimstone 1 missile was reportedly used against RU forces in #Zaporizhzhia Oblast – however this one failed to explode. This particular missile is relatively old and was made no earlier than June '04 – also utilizing many parts imported from the US. pic.twitter.com/uxShg7pwFJ
— 🇺🇦 Ukraine Weapons Tracker (@UAWeapons) May 8, 2022
On 8 May photographs of a further Brimstone 1, this time intact perhaps photographed before launch or after a failure of some sort, appeared online. If photographed following a failure it would indicate that this missile’s self destruct failsafe did not activate. Though the missile appears in good condition if it landed after a failure. From its markings seen in the photographs it is clear that the weapon’s components were produced in September 2001 and February and June 2004. We do not yet know how Ukrainian forces are employing Brimstone or how effective it has been.
#Ukraine: More footage of the covert ground launch system for UK-supplied Brimstone missiles, used by the Ukrainian Army- apparently a launch platform with 3 missiles loaded (Similar to an already known test rig) is placed on a truck chassis. pic.twitter.com/25N7SZlpvl
— 🇺🇦 Ukraine Weapons Tracker (@UAWeapons) May 15, 2022
Further footage from Ukrainian Brimstone launches emerged on 15 May, showing some close-ups from inside the launch vehicle. A Cobham triple rail can be seen mounted and several launches were shown as part of a compilation video shared by Ukrainian forces. In this video we only see two missiles being launched rather than a salvo of three although in one clip we can see three missiles mounted on the rail. The footage also shows us that the system appears to be mounted on a palletised frame work which could seemingly be easily mounted on more capable vehicles.
Brimstone offers greater range than the infantry-operated anti-tank guided missiles (ATGM) like the western Javelin or the Ukrainian Stugna-P. This greater range coupled with its ability to be fired in salvos offers a valuable capability to Ukrainian forces.
Update – 15 November 2022:
In October a video from BFBS Creative confirmed that the UK has provided Brimstone 2 missiles to Ukraine. BFBS do not state when the video was filmed but the footage shows a transit chest marked ‘Brimstone 2 Operational Missile Dual Mode’. Dual Mode refers to a variant of the missile which can be used both as a ‘fire and forget’ system but also have a ‘man-in-the-loop’ capability which was originally developed as part of an Urgent Operational Requirement for a low-collateral damage weapon. According to MBDA Brimstone 2 has “an overall increase in performance with improvements in range and engagement footprint”, this is enabled by improved seeker, improvements to the missiles airframe with a more modular design and software updates.
Some previously unseen footage of a Brimstone launch was circulated online on 15 November, which may show the launch of several Brimstone 2 missiles. It is unclear when the footage was filmed. Though the resolution of the footage is low there is a discernible glint on the seeker head/dome which might indicate they are a later type of missile to those seen earlier in Ukraine which have a translucent seeker dome.
Some newly circulating footage of a Brimstone technical in action.
We first saw Brimstone in action in May. A very short clip but there may be a glint from a different seeker head to the one previously seen in #Ukraine.
If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!
Bibliography:
Brimstone, MBDA, (source) Brimstone Guided Missile, Think Defence, (source) Footage: Brimstone Missiles Deployed in Ukraine, Overt Defense, (source) What is the Brimstone missile?, BBC, (source) Ukraine Update 25 Apr. 2022, UK Parliament Hansard, (source) Ukraine 26 Apr. 2022, UK Parliament Hansard, (source) Brimstone 2 Missiles in Use in Ukraine, Overt Defense, (source) How the UK’s Brimstone Missiles Reach Ukraine, BFBS Creative, (source) MBDA reveals Brimstone 2 missile work for UK, FlightGlobal, (source) Dual Mode Brimstone, MBDA, (source)
