Footage of Brimstone anti-armour missiles being launched in Ukraine surfaced for the first time on 12 May but recent footage points to Ukraine now potentially deploying the Dual Mode Brimstone 2. In this updated video we look at what the missile is capable of, how they came to be in Ukraine and how they have been deployed.

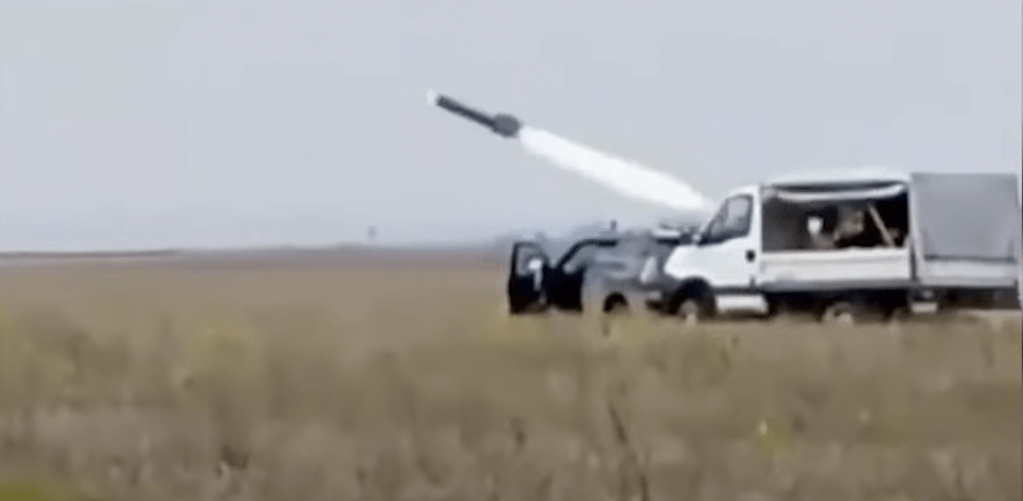

A still from footage of a launch from the ‘Brimstone technical’ with the missile potentially being a Brimstone 2 with a translucent seeker head, shared online in early November (via Social Media)
In our earlier video on Brimstone use in Ukraine we examined the system’s capabilities, history and the new ad-hoc ground launch platforms in use. In this updated video we look at evidence of Brimstone use over the summer and autumn of 2022 and discuss the transfer of Brimstone 2 and its capabilities.

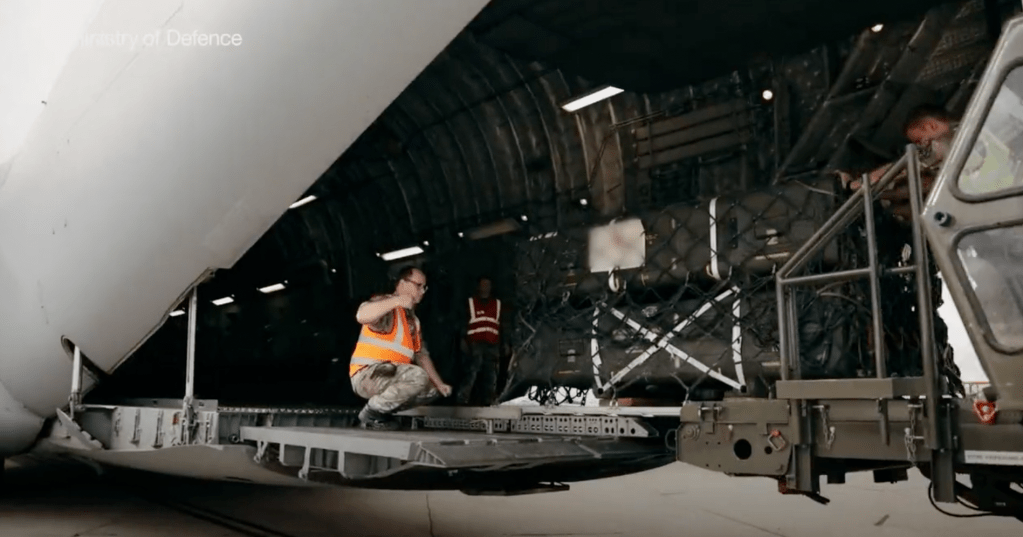

Brimstone 2 missiles being loaded aboard an RAF transport aircraft at RAF Brize Norton – perhaps around 48 missiles appear to be on board. (UK MoD)
The UK Ministry of Defence publicly confirmed the transfer of ‘Brimstone 2 Operational Missile Dual Mode’ to Ukraine on the 27 November with a short video. Dual Mode refers to a variant of the missile which can be used both as a ‘fire and forget’ system but also have a ‘man-in-the-loop’ capability which was originally developed as part of an Urgent Operational Requirement for a low-collateral damage weapon. According to MBDA Brimstone 2 has “an overall increase in performance with improvements in range and engagement footprint”, this is enabled by improved seeker, improvements to the missiles airframe with a more modular design and software updates.
Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
On 12 May video of what appears to be a test launch of Brimstone Missiles in Ukraine surfaced online. A containerised launch platform can be seen launching a salvo of three missiles. The footage shows what appears to be a repurposed commercial vehicle, such as an IVECO Daily or Mercedes-Benz Sprinter box van. The van appears to have a series of rails mounted inside the cargo area which may have something similar to a Cobham triple launch rail fixed to them. It could be described as a sort of very advanced technical. It is unclear when or where the footage was filmed.

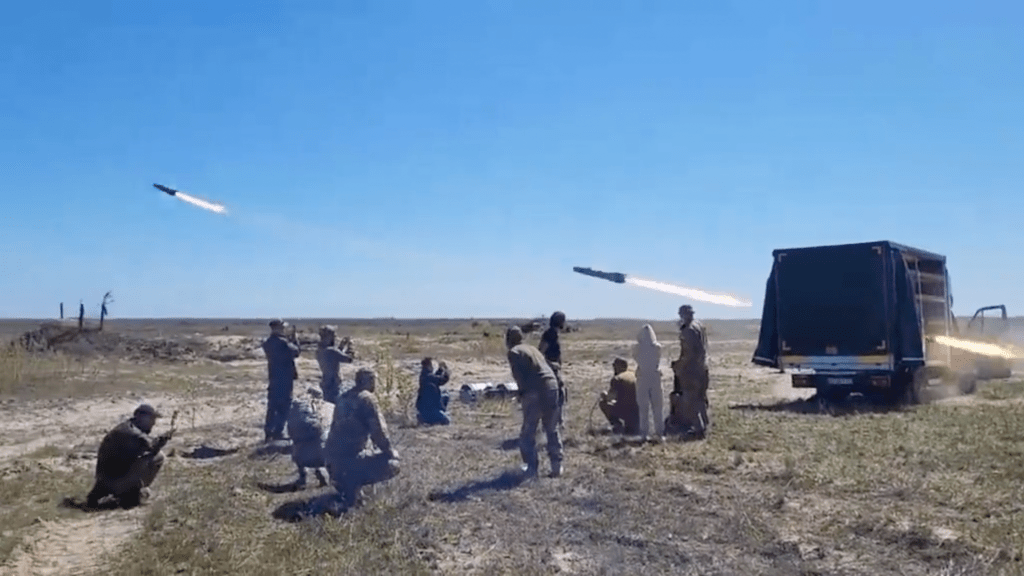

Brimstone salvo being launched from a repurposed commercial vehicle (via Social Media)
In April, the UK Ministry of Defence confirmed the supply of Brimstone missiles to the Ukrainian Armed Forces. It was announced that these would be adapted for surface launch for use against ground targets. Before Russia’s invasion of Ukraine in February, the UK government had been in talks to provide the maritime variant of of the missile (Brimstone Sea Spear) to the Ukrainian Navy and there was speculation that this would be the variant sent to Ukraine. However, on 25 April, Defence Minister Ben Wallace told the UK Parliament that “if we do provide Brimstone, we will look to provide it for the land, using stock that we already hold, but not as yet for the sea.” A day later, on 26 April, the UK’s Armed Forces Minister James Heappey told Parliament that “such is the speed with which our technicians are now working and so effective is the partnership with industry that I am pleased to say that that has been moved forward. It is necessary to inform the House that we will be providing Brimstone in the next few weeks.”
Brimstone is an advanced, rocket-powered, radar-guided weapon which can seek and destroy armoured targets at long ranges with high precision. Developed by in the late 1990s it was designed to be fired from aircraft and entered service with the Royal Air Force in 2005, seeing action in Iraq, Afghanistan Libya and Syria. The missile’s manufacturer MBDA has continued development of the weapon with ground-based and maritime variants designed and proposed. Brimstone uses a 94 Ghz millimetre wave (mmW) active radar homing seeker and a sophisticated guidance system which can differentiate and prioritise targets. The missile delivers a tandem shaped charge to destroy armoured targets at ranges varying from 12 to approximately 20km depending on launch platform and conditions and the variant of missile. Brimstone is capable of firing a salvo of missiles which will then fly in parallel before striking their targets in unison. This may be what is seen in the video. Brimstone is a fire and forget missile with the missile able to targeted at a designated killbox to then engage highest value targets it detects.

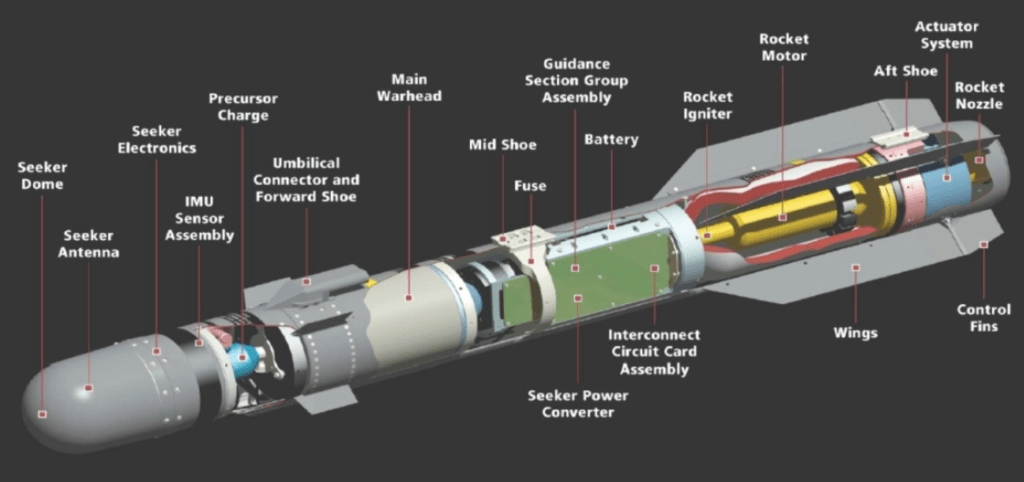

Diagram showing the layout of Brimstone (via Think Defence)
On 6 May the first evidence of Brimstone’s presence in Ukraine was provided by a series of photographs of the remnants of a Brimstone 1 missile. The recovered tail section of the missile bore a sticker denoting the surviving component as being manufactured in September 2001. Subsequent photographs of fragments from another missile, which perhaps self destructed, surfaced online on 11 May. These suggested that this Brimstone 1 was manufactured in around May 2001.
#Ukraine: Another UK-supplied Brimstone 1 missile was reportedly used against RU forces in #Zaporizhzhia Oblast – however this one failed to explode. This particular missile is relatively old and was made no earlier than June '04 – also utilizing many parts imported from the US. pic.twitter.com/uxShg7pwFJ
— 🇺🇦 Ukraine Weapons Tracker (@UAWeapons) May 8, 2022
On 8 May photographs of a further Brimstone 1, this time intact perhaps photographed before launch or after a failure of some sort, appeared online. If photographed following a failure it would indicate that this missile’s self destruct failsafe did not activate. Though the missile appears in good condition if it landed after a failure. From its markings seen in the photographs it is clear that the weapon’s components were produced in September 2001 and February and June 2004. We do not yet know how Ukrainian forces are employing Brimstone or how effective it has been.
#Ukraine: More footage of the covert ground launch system for UK-supplied Brimstone missiles, used by the Ukrainian Army- apparently a launch platform with 3 missiles loaded (Similar to an already known test rig) is placed on a truck chassis. pic.twitter.com/25N7SZlpvl
— 🇺🇦 Ukraine Weapons Tracker (@UAWeapons) May 15, 2022
Further footage from Ukrainian Brimstone launches emerged on 15 May, showing some close-ups from inside the launch vehicle. A Cobham triple rail can be seen mounted and several launches were shown as part of a compilation video shared by Ukrainian forces. In this video we only see two missiles being launched rather than a salvo of three although in one clip we can see three missiles mounted on the rail. The footage also shows us that the system appears to be mounted on a palletised frame work which could seemingly be easily mounted on more capable vehicles.
Brimstone offers greater range than the infantry-operated anti-tank guided missiles (ATGM) like the western Javelin or the Ukrainian Stugna-P. This greater range coupled with its ability to be fired in salvos offers a valuable capability to Ukrainian forces.
Update – 15 November 2022:
In October a video from BFBS Creative confirmed that the UK has provided Brimstone 2 missiles to Ukraine. BFBS do not state when the video was filmed but the footage shows a transit chest marked ‘Brimstone 2 Operational Missile Dual Mode’. Dual Mode refers to a variant of the missile which can be used both as a ‘fire and forget’ system but also have a ‘man-in-the-loop’ capability which was originally developed as part of an Urgent Operational Requirement for a low-collateral damage weapon. According to MBDA Brimstone 2 has “an overall increase in performance with improvements in range and engagement footprint”, this is enabled by improved seeker, improvements to the missiles airframe with a more modular design and software updates.
Some previously unseen footage of a Brimstone launch was circulated online on 15 November, which may show the launch of several Brimstone 2 missiles. It is unclear when the footage was filmed. Though the resolution of the footage is low there is a discernible glint on the seeker head/dome which might indicate they are a later type of missile to those seen earlier in Ukraine which have a translucent seeker dome.
Some newly circulating footage of a Brimstone technical in action.
We first saw Brimstone in action in May. A very short clip but there may be a glint from a different seeker head to the one previously seen in #Ukraine.
If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!
Bibliography:
Brimstone, MBDA, (source) Brimstone Guided Missile, Think Defence, (source) Footage: Brimstone Missiles Deployed in Ukraine, Overt Defense, (source) What is the Brimstone missile?, BBC, (source) Ukraine Update 25 Apr. 2022, UK Parliament Hansard, (source) Ukraine 26 Apr. 2022, UK Parliament Hansard, (source) Brimstone 2 Missiles in Use in Ukraine, Overt Defense, (source) How the UK’s Brimstone Missiles Reach Ukraine, BFBS Creative, (source) MBDA reveals Brimstone 2 missile work for UK, FlightGlobal, (source) Dual Mode Brimstone, MBDA, (source)
The transfer of Western anti-armour weapons started before the war even began. The United States transferred significant shipments of Javelin anti-tank guided missiles along with M141 SMAW-D Bunker Defeat Munitions and Stinger MANPADS.
At the same time as an initiative from the Baltic states of Lithuania, Latvia and Estonia – Estonia also delivered Javelin missiles. For reasons of operational security we don’t know how many Javelins have been delivered to Ukraine by the US and Estonia at this time. However, Estonia is believed to have had several hundred in stock.
Ukrainian troops training with January in February 2022 (Ukrainian MoD)
What is Javelin?
Javelin is an infrared guided man-portable fire-and-forget anti-tank missile. It’s been been in service with over a dozen countries for over 20 years and is still produced by a joint venture between Raytheon Missiles & Defense and Lockheed Martin. It weighs about 22kg or 46 lbs ready to fire and had a detachable Command Launch Unit (or CLU) . Its effective range depends on the type of CLU but the improved Lightweight CLU introduced in 2020 can engage targets out to 4,000 metres (about 3 miles). As of 11 March, Lightweight CLU has not yet been seen in Ukraine. The earlier block 0 and 1 CLU can engage targets out to 2,500 meters (1.5 miles). The CLU enables this with a number of optics including a 4x day sight, a 4x night sight a 9.2x thermal sight. The CLU is also a useful tool for reconnaissance when other NVG and thermal imagers aren’t available. Once the gunner has their target and establishes a lock the missile can be launched.
Javelin’s CLU (US Army)
Javelin’s missile has a soft launch system which limits back blast and firing from relatively enclosed spaces. Once launched the main rocket motor kicks in at a safe distance. It uses automatic infrared self-guidance and has two modes of attack: direct for use against lightly armoured targets and structures and top-attack. In top-attack mode the missile climbs above the target and then plunges down on it to penetrate thinner top armour.
The missile has a tandem shaped charge high explosive anti-tank round. The initial charge can detonate any explosive reactive armour used by the enemy target vehicle while the second shaped charge will penetrate the target’s main armour. When the round detonates it super heats the metal of the armour and creates a high velocity stream of metal which enters the vehicle. More on the complex science behind shaped charges here. It can destroy vehicle’s drive systems or if it enters the fighting compartment it can kill or injure the crew and detonate munitions.
History
Javelin was developed by Texas Instruments in cooperation with Martin Marietta. In the mid-1980s it beat off competition from Ford Aerospace and Hughes Aircraft to win the US Army’s Advanced Anti-Tank Weapon System—Medium program.
A Ukrainian Depot, early March 2022 (Ukrainian MoD)
In June 1989 Texas Instruments and Martin Marietta were awarded a development contract and the Javelin was adopted as the FGM-148. Javelin continued development and testing throughout the 90s before entering service. Since then it’s been adopted by countries including the UK, Australia, France, Norway, Poland, Taiwan, and many others. According to Raytheon the system is scheduled to be in inventory until 2050.
Javelin In Ukraine
Ukraine adopted Javelin in April 2018, ordering 210 missiles and 37 CLUs with a further order for 150 missiles and 10 CLS in December 2019. Since the threat of invasion became increasingly likely the US provided a series of aid packages worth $260 million. Reports suggest that at least 300 Javelin missiles were delivered as part of these packages. Since then the US has agreed a further package worth $350 million. 70% of this package is said to have been delivered as of 9 March. It’s difficult to estimate how many missiles and CLUs have been delivered so far but the number of missiles is likely over 1,000.
Still from a Ukrainian training film on Javelin (Ukrainian MoD)
From the sparse evidence available we know that at least some of the Javelin transferred to Ukraine are confirmed to be from older Block 0 stocks, which includes FGM-148A/B/C and D. The vast majority of Javelins in Ukraine are likely to be Block 0 variants. Block I, the FGM-148E came into service with the US in 2008 and has an improved CLU and rocket motor. Javelin’s shelf life is around 20 years, so it makes sense for these older production but still fully capable missiles to be sent first.
In early February the Ukrainian Ministry of Defense shared a short video showing troops testing the newly-arrived Javelins against tank hulks which had been fitted with so-called ‘Javelin Cages’, a metal structure which Russian tanks have recently added to their turrets. It is believed the cage is intended to detonate the initial charge of a Javelin before it contacts with the tanks explosive reactive armour or the hull itself. However, it is also believed that it is intended to defeat drone-fired micro munitions like the Turkish MAM series. The cage detonating the micro munition before it reaches the tank. The footage shared by the Ukrainian MoD showed that Javelin easily defeated the cages.
Update 15/3/22: We have now seen evidence of Block 1 FGM-148Es in Ukraine. Amael Kotlarski, Janes Infantry Weapons Editor, speculates that these may have originated from the Baltic states’ stocks. At least one example of the Block 1 and a number of Block 0s have been captured by Russian forces so far.
Ukrainian Defence Minister announcing arrival of a shipment of Javelin in January 2022
While at the time of publishing this video there has been no confirmed footage of Javelin in action in Ukraine, no doubt due to good Ukrainian OPSEC, we have seen the system in theatre.
We got our first confirmation on 3 March, when Ukraine’s Operational Command “North” shared photos of troops being briefed on the use of NLAW and Javelin anti-tank weapons. In the photos we could see numerous Javelin transport cases stacked while troops were briefed on the Command Launch Unit (or CLU). On 6 March, the Ukrainian Armed forces shared a short instructional video on Javelin, showing how the battery is inserted and what the CLUs controls do.
How Capable is Javelin?
The penetration capabilities of Javelin are listed as classified with the USMC’s manual stating “The Javelin penetrates all known armor, “well” in excess of 30 inches [or 760mm] of rolled homogeneous steel.” This means Javelin is more than capable of knocking out any Russian armoured vehicle in Ukraine.
Javelin Missile (US Army)
In terms of performance in Ukraine, one report from 3 March, quoted an anonymous US Special Operations officer who is monitoring the conflict, suggested that of 300 Javelin fired, 280 knocked out vehicles. Time will tell.
If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including custom stickers and early access to videos! Thank you for your support!
Bibliography:
Javelin – Close Combat Missile System, Medium, FM3-22.37, US Army, 2008 (source) Rundown: Western Anti-Tank Weapons For Ukraine, Overt Defense, (source) Introduction to Crew Served Weapons, USMC, (source) NLAW In Ukraine, Armourer’s Bench, (source) As Russia Pounds Ukraine, NATO Countries Rush In Javelins and Stingers, New York Times, (source) $60 Million Worth of US Military Aid Arrives In Ukraine, Overt Defense, (source) First batch of Estonia-donated Javelin missiles arrive in Ukraine, EER, (source) New US Military Aid to Ukraine Includes 300 Javelin, nv.ua, (source) Shaped Charge, Global Security, (source)
What connects calculators to the Javelin FGM-148 Anti-tank guided missile? That might sound like an odd question but what links one of the most successful scientific calculator companies and one of the most widely fielded modern infantry anti-tank weapons is the company which developed them.
Texas Instruments is a household name, especially in the US, better know for its calculators than weapons of war but from the 1940s through to the 1990s they were leaders in defence electronics.
Javelin FGM-148 (US Government)
Javelin was developed by Texas Instruments in cooperation with Martin Marietta (now Raytheon and Lockheed-Martin). In the mid-1980s it beat off competition from Ford Aerospace and Hughes Aircraft to win the US Army’s AAWS-M (Advanced Anti-Tank Weapon System—Medium) program to replace the M47 Dragon. So while the company’s calculator division was running television adverts featuring Dracula the Texas Instruments’ defence arm were developing a next generation anti-tank guided missile.
In June 1989, Texas Instruments and their partner company Martin Marietta were awarded the AAWS-M development contract and the Javelin was adopted as the FGM-148. Javelin continued development and testing throughout the 90s before entering service.
The infrared guided man-portable fire-and-forget anti-tank missile has been in service with over a dozen countries for over 20 years and is still produced under the joint venture between Raytheon Missiles & Defense and Lockheed Martin.
Skipper II AMG-123 (Texas Instruments)
Javelin wasn’t the only weapon Texas Instruments had a hand in developing, they also developed the AGM-88 Harm air-to-surface missile, AGM-123 Skipper anti-ship missile, the AGM-45 Shrike anti-radiation missile, the AGM-154 Joint Standoff Weapon and the Paveway laser-guided bomb. Texas Instruments’ involvement in the defence industry ended in 1997, when they sold off their defence division to Raytheon in a deal worth $2.95 billion at the time.
This short video came from some ongoing research I’m doing at the moment for an upcoming video on another missile called Javelin! Stay tuned for that.
