Tag: 40mm Grenade Launcher

New Russian Grenade Launcher – GP-46

A couple of months ago we took a look at Kalashnikov Concern’s new belt-fed machine gun, the RPL-20. That video was made in collaboration with firearms researcher Deni Almaskhanov, of Just Guns. Deni has also kindly shared some video of Kalashnikov’s new GP-46 grenade launcher.

The GP-46 was unveiled by Kalasknikov Concern at the ‘Army-2024’ exposition in August. Unlike other Russian underbarrel grenade launchers the GP-46 is chambered in the Western 40x46mm, the low velocity grenades used in launchers like the M203, and M320. Despite its first public appearance in 2024, the visible serial number indicates that the launcher on display was actually made in 2023. It was reportedly developed in 2023-24 by a design team led by Kalashnikov’s chief small arms designer Sergei Vladimirovich Urzhumtsev.

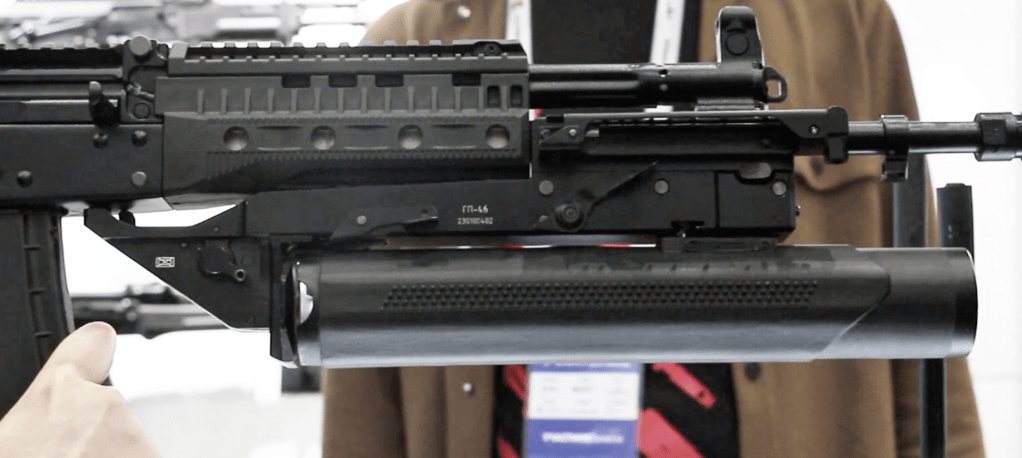

GP-46 UBGL & 40x46mm grenades (Kalashnikov Concern)

The GP-46 features ambidextrous controls with mechanical safety selectors, locking mechanism catches and triggers found on both sides of the launcher. The launcher can be mounted on all previous AK-pattern rifles which are able to mount UBGLs.

Kalashnikov Concern list its specs as:

  • Length: 380mm
  • Caliber: 40mm
  • Weight: 1.6kg
  • Rate of Fire: 5-6 rounds per minute

It’s currently unclear what range of 40x46mm grenades are available for the GP-46 but Kalashnikov’s promotional video on the launcher featured a grenade tipped with what appears to be a VGM fuze used on VOG-pattern grenades.

GP-46 UBGL (Deni Almaskhanov)

Interestingly, Deni noted that the unconventional trigger placement is not entirely new for Kalashnikov. In 2018, Kalashnikov patented another grenade launcher, seemingly one designed around VOG-pattern grenades. That UBGL’s the trigger mechanism was located on the outer cover of the barrel itself. Deni explains that “the latch was to be pressed, unlocking the movement of the cover, the cover was to be pulled backwards. Such design was implemented in order to allow for a double-action trigger action while not requiring lots of strength from the trigger finger”. Deni believes that the GP-46 seems to be following the same philosophy while avoiding overtly complicated design elements.

Kalashnikov Concern 2018 UBGL design for 40mm VOG-pattern grenades (Russian Patent #2694383)

The GP-46 is aimed using iron sights located on the right side of the launcher. The rear sight allows for shooting at ranges starting at 50 meters, out to 400 meters. The sights also feature a built-in mechanical rangefinder, calibrated for 170 cm (5’7) tall target. Interestingly, the 5.56×45mm AK-19 Type 3 that was used to showcase the grenade launcher at ARMY-2024, also featured what seems to be a new ACOG-style prismatic scope by Dedal-NV, one of Russia’s premium optics manufacturers. Deni notes that the scope featured both rifle and grenade launcher reticles.

GP-46 UBGL sights (Kalashnikov Concern)

It is unlikely the Russian armed forces will be moving away from their in-service 40mm grenade launchers any time soon and it is worth noting that both the GP-46 and the AK-19 it was mounted on are primarily export models. One potential interesting international customer may be India, which has already contracted with Kalashnikov previously. India recently adopted the AK-203, with plans to produce the rifles under license in India.

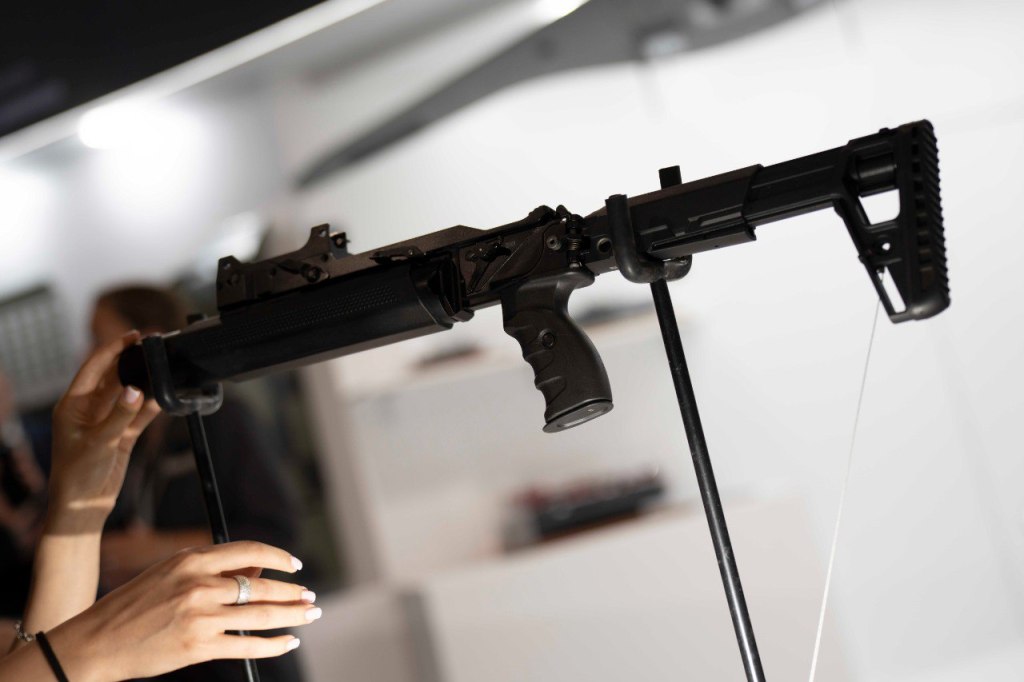

GP-46 in stand alone chassis (Kalashnikov Concern)

Intriguingly, what sets this this grenade launcher apart from the majority of previous Russian UBGLs is the special module that allows it to be used as a stand-alone launcher. The GP-46 mounts onto a stock chassis which consists of a full-size AK-12 Type 1 pistol grip and an adjustable AK-12 Type 3 buttstock. Given the large number of stand alone stock systems for launchers like the GP-25 which have emerged as a result of the war in Ukraine this development isn’t surprising.

Special thanks to Deni for sharing this footage and information with me so I can bring you guys this video. Please do check out Deni’s pages – Telegram, Instagram, Youtube.

Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! You can also find us on the History of Weapons & War app. Thank you for your support!

Ukraine’s Newest Grenade Launcher – UKROP UGL-40

We have looked at a range of grenade launchers being used in Ukraine including standalone adaptations of GP-25s, the Ukrainian RG-1, the Russian DP-64, and a whole range of launchers that use the NATO standard 40x46mmSR rounds like the LMT M203 and the FN40GL.

In mid-August a new Ukrainian-produced 40mm launcher appeared, the UKROP UGL-40. This isn’t the first Ukrainian manufactured 40mm launcher, the Fort 600 has been in service for over a year and will be the topic for a future article/video of its own.

The UGL-40 is manufactured by UKROP, which is associated with Zbroyar. Intriguingly, in some of the available imagery of the UGL-40, LMT markings are clearly visible on the left side of the weapons receiver. It’s unclear if the launchers are imported from LMT, if they’re simply licensed on the LMT design or if a portion of the parts are manufactured by LMT and assembled by UKROP. While the barrel length and receiver design are very similar to that of the LMT M203 the stand-alone stock design differs. [H/T  – CaliFlori for spotting the markings.]

Update – February 2025: Having spoken to LMT representatives at SHOT 2025, it appears that after buying a significant number of LMT’s M203s Ukraine also bought all available components to assemble further launchers in-country. This included tubes, receivers and assorted components. These parts were combined with a chassis developed by UKROP, creating that UGL40.

LMT markings on a left side of the UGL-40’s receiver (via 12th Special Operations Brigade)

UKROP are best known for producing the UAR-10 and UAR-15 rifles used by elements of the Ukrainian armed forces. Sources suggest that the UGL-40 has a barrel length of 224mm, shorter than that of the M203 it’s based on, and in the under-barrel configuration it probably weighs around 3lbs (1.36 kg). The launcher is typically seen with a tangent sight attached to the left side of the weapon.

In retrospect and after some digging the earliest possible sighting of a UGL-40 I’ve seen dates from 20 March, in a photograph of a pair of members of Foxtrot Group with carbines equipped with under-barrel grenade launchers. Foxtrot Group, who are believed to be part of Ukraine’s SSO, posted two more photos of a team member equipped with an M4 carbine mounted with a UGL-40.

UGL-40 in standalone configuration (Western Savages)

The grenade launchers were next seen in an Instagram post on 5 July, by crab_zol, a member of the 3rd Assault Brigade, which showed him firing a UGL-40 from a trench. The launcher is seen attached to a UAR-15 rifle as an under-barrel grenade launcher.

On the 12 August, a photograph of the UGL-40 in its standalone configuration was shared online. Some sources suggest the image originated with personnel from the Ukrainian 36th Marine Brigade. The UGL-40 and UKROP markings can be clearly seen. The launcher appears to slot onto a rail of a stand-alone adaptor. The adaptor has a collapsing stock and a full length Picatinny top rail. A UGL-40 in the stand-alone configuration also appears in a kit photograph, the source of which I haven’t been able to confirm. It has been painted up and matches the UAR-15 seen below it.

UGL-40 mounted on a UAR-15 (Rubizh Brigade)

A week later on 19 August, Western Savages, a Separate Special Purpose Unit with “OMEGA” West, part of the Ukrainian National Guard’s special forces wing, shared a montage video on their new instagram page which included footage of the UGL-40 being fired during training. Speaking to Western Savages they noted that they’d received the UGL-40 a couple of months ago and had previously used the Fort-600. They noted the differences between the two launchers are negligible but the Fort-600 is a little heavier. This may suggest that the UGL-40 with its stock is slightly lighter than the Fort-600’s 2.20kg (4.85lbs). They described the UGL-40 as ‘accurate and reliable’ but have not yet used it on operations.

The 12th Special Operations Brigade “Azov” shared a video on 21 August, which featured a member of the brigade’s reconnaissance detachment discussing his kit. He shows a UAR-15 equipped with a UGL-40 along with a bandolier for carrying 40mm grenades.

UGL-40 mounted on a UAR-15 (3rd SABr)

Most recently, on the 23 August, photographs of members of the Neptune reconnaissance group were shared with one of the operators pictured holding a rifle equipped with a UGL-40. On the same day the Rubizh Brigade also posted photographs showing personnel equipped with the new grenade launchers attached to UAR-15 rifles. One of the photographs of a soldier, wearing what appears to be a reconnaissance platoon patch, also gives a good look at the launcher’s markings.

It seems that the UGL-40s have so far been issued to a mixture of units including those from both the Ukrainian Army and the National Guard. Unsurprisingly they have only been seen paired with AR-15/M16 pattern rifles and are most typically seen in the under-barrel configuration rather than as a standalone. From confirmed sightings it appears that the UGL-40 has been in service since at least Spring 2024.

Update – 2/10/24:

A photo submitted to Ukrainian military page, Ukrainian_Special_Military of Members of 12th Special Operations Brigade “Azov” of the National Guard operating in the forests of Luhansk region. One individual has a UAR-15 with what is likely a UBL40.

Update – 29/10/25:

A photo of a member of 1st combat group of the special purpose intelligence squad of the 12th Brigade NGU with a nicely painted up standalone UGL-40 and a UAR-15.

Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! You can also find us on the History of Weapons & War app. Thank you for your support!

LMT Standalone M203s In Ukraine

In this series looking at weapons used in Ukraine we’ve looked at a number of different grenade launchers including GP-25s adapted for standalone use, FN FN40GLs, discharger cups for hand grenades and perhaps the rarest grenade launcher seen in Ukraine so far; the standalone Colt M203. Another interesting and fairly rarely seen grenade launcher that began to appear in Ukraine last winter is LMT’s standalone 40mm M203.

LMT offers a series of M203-derived launchers and two standalone stock attachment methods. The Iowa-based company introduced its 40mm grenade launchers in 2003. The launchers seen in Ukraine appear to be the rail mounted version with a 9 inch long barrel.

An LMT M203 in the field (via Rogue Team)

The first sighting of an LMT M203 in Ukraine came in November 2023, when Georgian volunteer O.d.i.n.s.o.n., part of the GUR/HUR (Ukraine’s Main Directorate of Intelligence)’s Omega Team, posted a photo of one side by side with a standalone GP25. The launchers likely arrived in country a little earlier, speaking to TAB at the time he noted that “the aiming module is a little weird. It has like an M4 forward sight and GL [grenade launcher] distance adjustable rear sight but it’s on top of the weapon. So it doesn’t force you to arc the barrel Like a GP25 does.”

The next appearance of one of the launchers came in late February 2024, when Scorpion Protection Group, another SOF group, shared a photo of a combatant training with one. A third GUR unit, Rogue Team, have also posted images featuring an LMT M203. The first image was shared by a team member on 17 March. This was followed by an image shared on the team’s Instagram page on the 5 April.

LMT M203 rail mounted version with 9in barrel – right side (LMT)

On the 14 April, a photo posted by one of the Kraken Regiment’s (also under the GUR) teams also appears to include a standalone LMT M203. Most recently on 16 April, a Spanish member of Omega Team, shared a photo of an LMT M203 with its action open with a round ready to load. On the same day TAB spoke again to Omega Team member O.d.d.i.n.s.o.n. at length about the launchers.

O.d.i.n.s.o.n. explained that the unit switched from rotary 40mm grenade launchers to standalone GP25s and LMT M203 as they are lighter and less bulky than the rotary launchers. He reiterated the difference in the LMT sight from quadrant sights found on other launchers and noted that “instead of a switch or a selector it has a little hook that you pull back and it prevents your finger from going on the trigger.” This is a carry over from the original M203 on which LMT’s launcher is based.

When comparing the GP25 and M203 O.d.i.n.s.o.n. noted that the M203 is light, effective and has a ‘really nice stock’ but he dislikes that the M203’s action has to be opened to reload, unlike the GP25 which when fired “leaves nothing inside the tube and is faster on the reload.” When asked if he’d seen many other units using LMT launchers he explained that “most [International Legion] Special Task Units [affiliated with the GUR] have a couple.”

An LMT M203 with its action open (Courtesy of Delta Knights)

We also spoke with Delta Knights, another GUR Specal Task Unit made up of international volunteers, who confirmed they also use LMT M203s and said that they ‘really love it’ but one thing they do wish they had more of is 40mm smoke grenades, adding that the launcher is most often employed with High Explosive (HE) grenades. Delta Knights were kind enough to provide some photos and videos of the M203 in operation at the range.

While the imagery and information available confirms combat use of the LMT M203s in Ukraine it doesn’t give us a solid picture of just how many are in-theatre and other units who may be using them. As always the imagery shared online represents a fraction of what is going on and can only be considered a limited sample. In terms of the origins of the launchers one potential source for the LMT M203s is Estonia which adopted the LMT MARS-L as the R-20 in 2020. Some of the Estonian R-20s have been seen with LMT M203s and given Estonia’s considerable past support for Ukraine it is possible that they may have provided a number of the launchers.

Special thanks to O.D.I.N.S.O.N and Delta Knights for their time and insights and to the guys at Cloooud for additional assistance.

Update – 1/5/24: A recently shared International Legion recruitment social media post included an LMT M203.

Update – 25/7/24:

https://twitter.com/historicfirearm/status/1816564781995712964?t=pTJX3W7_WVFylnBym1-zyQ&s=19

Update – 10/9/24: The ‘Expeditionaries’ Instagram page, seemingly affiliated with an international volunteer team shared a photo of an LMT M203 being jokingly loaded with a deodorant roll-on rather than a 40mm grenade.

Update – 10/01/25: Two additional archival sightings of LMT M203s. The first on the left dates from September 2024. The second, from DC Tactical was shared on 29 October 2024.

Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!

Bibliography:

9″ Standalone Rail Mounted M203, LMT, (source)

The LMT M203-2003 Grenade Launcher, Small Arms Defense Journal, (source)

Lmt M203 Grenade Launcher Stand Alone Frame, LMT, (source)

The Rarest Grenade Launcher in Ukraine

Remarkably, a rare prototype Colt stand-alone stock chassis for the M203 40mm grenade launcher has been spotted in Ukraine. Our friends and colleagues at StreakingDelilah received some photographs and video of the prototype stock in November. They have kindly allowed me to share them here.

The stock chassis turns the M203 into a stand-alone launcher. It belongs to a Ukrainian Combatant with the GUR’s ‘Kraken’ Unit. M203 launchers were first seen in Ukraine in January 2023, when members of the 47th Mechanised Brigade were seen equipped with M16A4s with M203 under-barrel grenade launchers.

A still from a video showing the Colt M203 chassis at a range in Ukraine (via StreakingDelilah)

The chassis were reportedly made in both fixed stock and collapsing stock configurations. The one seen in Ukraine has a CAR-15 style adjustable collapsing stock. The chassis system takes a standard M203 under-barrel grenade launcher with heat shield and provides a platform which can be shouldered. According to friends at the Colt AR-15 Resource, the chassis was reportedly developed for an undisclosed US organisation, possibly US Special Operations Command or one of the alphabet agencies. It is thought that less than 30 were manufactured.

While there is little solid information available on these chassis it has been suggested that the project dated from before the start of the so-called ‘Global War on Terror’, and perhaps as early as 1992. Some samples were also reportedly made for external customers like El Salvador. The Colt-made stand alone chassis are a concept which has been replicated more widely by other manufacturers since.

The Colt AR-15 Resource shared some video of one of the fixed stock variants from a collector’s show:

The combatant in Ukraine shared several photographs of the M203 stand alone chassis. One appears to have been taken in a frontline trench while another shows it lying next to an FN SCAR-L and a couple of 40mm LV HEDP grenades.

The sight assembly appears to be unique to the chassis and combines a a rear sight which is graduated out to 250-300 metres with a front sight. It does not appear to have a quadrant sight mounted for longer range fire. The weapon operates just as the M203 normally would with the barrel sliding forward to open the action. Unlike the M203 under-barrel configuration the stand alone launcher has a pistol grip.

Some, but not all, examples of the chassis are marked with ‘COLT’s’ on the rear of the chassis above the pistol grip on the left side. Serial number markings are found on the launcher itself, on the trigger mechanism housing.

The rare chassis has also turned up in Afghanistan with StreakingDelilah sharing this photograph of a member of the Taliban with one.

It is unclear how the rare chassis came to see service on Ukraine’s frontline but StreakingDelilah believe it may have been privately acquired through a surplus dealer, though they stress this is unconfirmed. It has been interesting to see the proliferation of stand alone grenade launchers in use with both sides during the war in Ukraine, but I never expected to see this rare Colt-made stand alone chassis.

Updated – 15/11/24: Another image featuring the launcher recently appeared in a Kraken fund-raising post. [H/t – Larry]

Special thanks to StreakingDelilah and The Colt AR-15 Resource for their help.

Update – 8/1/25:

Another standalone M203 has appeared in Berdin, Kursk, captured by personnel of Russia’s Kachtan battalion. StreakingDelilah have confirmed that it is not the same M203 seen in use with a Kraken member. This indicates that more than one of these rare grenade launchers has found it’s way to Ukraine.

https://twitter.com/historicfirearm/status/1877106704384496108?t=tycwCxVuGBT1PRzeiSwSrA&s=19

Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!

40MM Grenade Mortar

Since April, a Ukrainian unit has shared a number of short videos showing a small mortar capable of firing 40mm grenades.

From their patches and TikTok username, 16batzsu, the men’s unit appears to be the 16th Separate Rifle Battalion. They appear to be part of the battalion’s embedded mortar battery and are seen operating other larger mortars and automatic grenade launchers in numerous videos.

A close up of the small mortar (via 16batzsu)

On the 11 February, 16batzsu shared a video showing a small mortar with a stainless steel insert seen dropped into a small hand-held mortar. The same video was shared on their YouTube account under the title ‘New Toy’. While the resolution of the video is low it clearly uses the same barrel sleeve principal seen in later videos. In replies to comments 16batzsu explain that the small mortar has a range of 2km and is 30mm in calibre. This suggests that the weapon may launch 30×29mm VOG grenades normally fired by AGS automatic grenade launchers. Unlike the later 40mm mortars it does not appear to have a bipod. No further videos featuring the 30mm mortar have been shared.

A still from a video showing a 30mm handheld mortar (via 16batzsu)

The first video providing a close up look at the 40mm mortar was shared on the 26 April, with the small mortar in a pit next to an 82mm mortar. The mortar uses 40mm high velocity grenades which are slid into the base of a rifled steel barrel sleeve. The rifling is needed to both maximise the grenade’s range but also impart spin which arms grenade. The loaded sleeve is then dropped into the mortar tube, the grenade’s primer presumably strikes the mortar’ firing pin and the grenade is ignited firing it out of the mortar. The sleeve remains in the tube.

A closeup of the inside of the barrel sleeve, note the rifling (via 16batzsu)

In terms of size the small mortar looks similar to the Ukrainian 60mm KBA-118, however, the base plate, bipod and tube differ. Despite similarities I haven’t been able to find an exact match to a mass-produced mortar. The weapon appears to be well made and the examples seen in the videos appear to be near identical suggesting they may be a locally developed and produced weapon.

In a pair of videos posted on 3 May, we get a closer look at the weapon and a member of the unit explains the principal behind how it works. The tube has a pair of parallel cuts which allow the steel barrel sleeve to be removed. The video shows a pair of the small mortars and also shows the rifling inside the sleeve. The sleeve appears to have approximately 16 rifling grooves and on its exterior are three rings cut into the top end of the sleeves outer surface to aid removing it from the mortar tube.

A 40mm high velocity round about to be loaded into a rifled barrel sleeve (via 16batzsu)

Finally, in a video posted on 9 May, we can clearly see the mortar fired a number of times. The operators can also be seen loading the 40mm grenades into the rifled barrel sleeves. One man loads the three tubes while another fires the mortar. The spent grenade cases are removed with the aid of a metal ramrod. The 40mm grenades which appear in the video are high velocity high-explosive dual-purpose (HEDP) grenades of the type used with Mk19 automatic grenade launchers. The reason the sleeve is rifling is to arm the grenade’s fuze when the round is fired. These include grenades like the US M383, M384, M430 and M677 as well as German DM111 and DM 112.

A still of a 40mm grenade being loaded into a barrel sleeve (via 16batzsu)

So what is the small mortar for? Why not just use the unit’s Mk19 automatic grenade launcher? My initial theory was that the barrel sleeve might provide an increase in range over the Mk19 though the 2,000 metre range mentioned in one of the videos suggests the mortar has a range on parr with the Mk19. Another theory is that the unit’s Mk19 may be inoperable and they still have a supply of 40mm grenades to use. The grenades are also perhaps more readily available and cost-effective than small mortar rounds. It could also potentially have the effect of mimicking drone-dropped 40mm munitions, keeping enemy combatants on the look out for drones. As a harassment weapon the small mortar seems to have potential, allowing its operator to fire from cover while being relatively lightweight allowing it to shift firing positions quickly. The accuracy of the weapon is difficult to gauge but with the aid of an observation drone rounds could be walked into the vicinity of a target. The mortar is a very interesting piece of innovative engineering.

Thank you to Ukraine Weapons Warfare for bringing the original footage of the mortar to my attention.

Update – 06/06/23: Some additional footage from another member of the 16th Separate Rifle Battalion showing the 40mm grenade mortar in action.

Update – 22/10/23 – Some new footage showcasing the mortar. One of the Ukrainian combatants appears to have a National Guard 4th Rapid Reaction Rubizh Brigade, 3rd Battalion Svoboda patch. The video gives us a good close look at the tub, tangent sight, barrel sleeve and the bipod and base plate which appear to have slightly different designs.

@loony420_420

#нгу🇺🇦🇺🇦🇺🇦 #бахмутьскийдвіж #українськийтікток🇺🇦 #війнавукраїні #бахмут🇺🇦🇺🇦🇺🇦 #дозор

♬ оригинальный звук – Loony

Update – 28/11/23: Another sighting of the 40mm grenade mortar. This time in official photos shared by the 108th Territorial Defense Brigade on 25 November. The post suggests the mortar can also fire 30mm VOG rounds.

Update – 17/8/24: A new sighting of the 40mm grenade mortar showing some of the loading and firing steps.

Support Us: If you enjoyed this video and article please consider supporting our work here. We have some great perks available for Patreon Supporters – including early access to custom stickers and early access to videos! Thank you for your support!
